Heavy-Duty Structural Anchoring: IM4S / P10-24 / H8.5

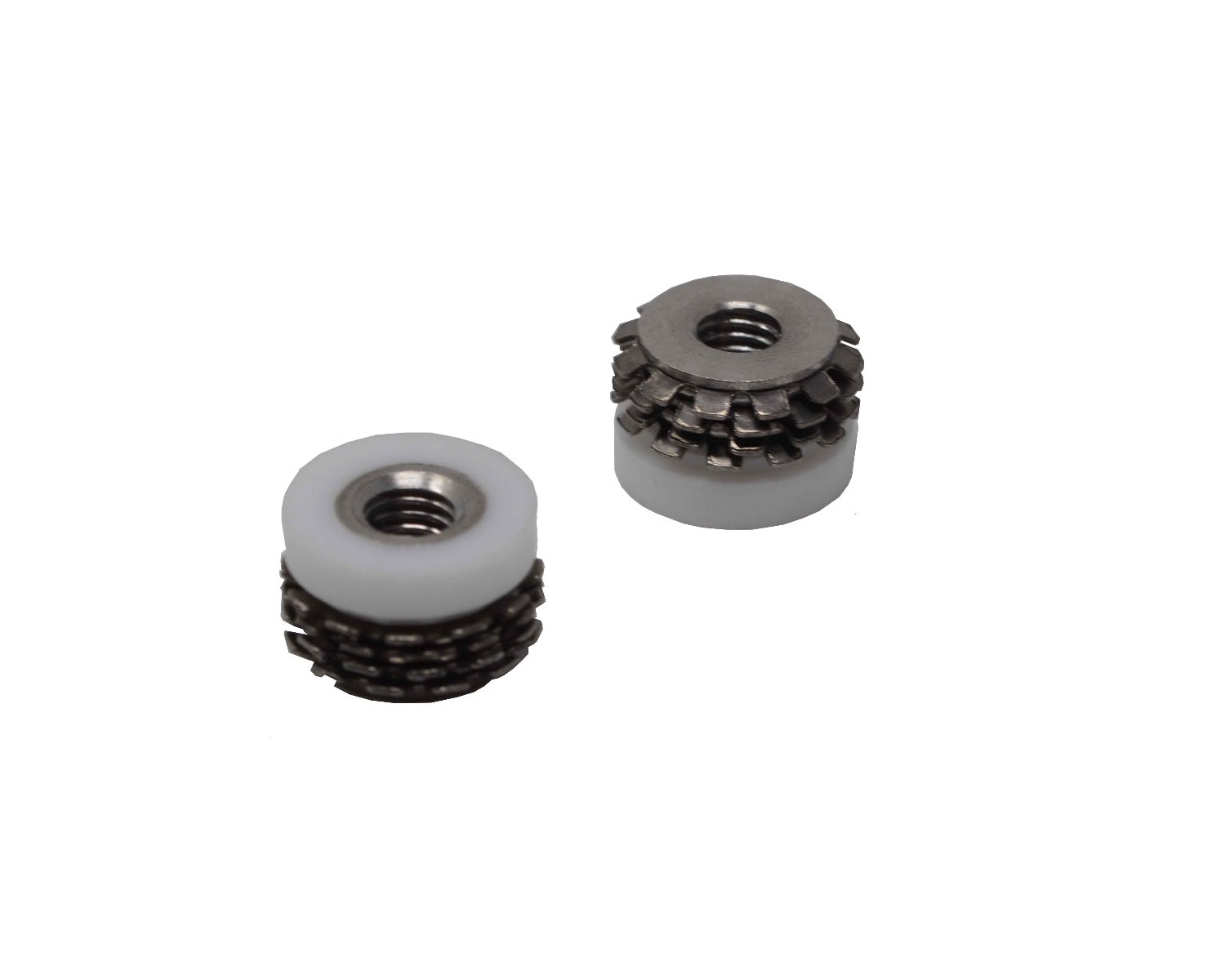

The IM4S (4-Crown) Keep-Nut™ is engineered for maximum pull-out strength in demanding structural applications. Featuring four elastic load-bearing crowns and an 8.5mm embedment depth, this heavy-duty insert delivers nearly 800 lbs of pull-out resistance per anchor.
Requiring a minimum surface thickness of 11.0mm, it is the premier choice for natural granite, heavy architectural cladding, heavy-duty commercial furniture, and thick solid surface installations. Simply drill a 12mm diameter hole to a depth of 9.0mm, press the insert in, and it is instantly ready to bear a load—no epoxy required.
Technical Specifications for IM4S/P10-24/H8.5
| SKU | Thread | Min. Thickness | H1 Thread Depth | D2 Hole Dia (±0.2) | L2 Hole Depth | Avg. Pull-Out Force |
|---|---|---|---|---|---|---|
| IM4S/P10-24/H8.5 | 10-24 | 11.0 mm (.43″) | 7.5 mm (.30″) | 12 mm | 9.0 mm (.36″) | 786 lbf (3.5 kN) |
Working with thinner materials?
If your panel is less than 11mm thick, the 4-crown insert will protrude or cause surface cracking. Downgrade to a shallower insert below:
➜ Shop 1-Crown (5.5mm Depth for Ultra-Thin)
➜ Shop 2-Crown (6.5mm Depth for Medium Duty)
