Sturdy, Safe and ADA Compliant – CounterBalance ADA Vanity Brackets

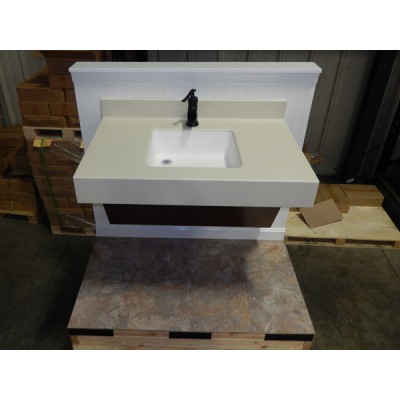

The CounterBalance® ADA Vanity Bracket provides for a clean, modernized, under-sink space that is compliant with the standards set by the Americans with Disabilities Act. These countertop support brackets accommodate countertops that are 22” to 26” deep and are designed with a 3”x 3” (45 degree) corner cut-out that will shelter most wall cleats, as well as any wire run clearance.
Our customers make repeat orders on these as they find that they are great for any commercial installation!
Let’s take a look at some of the specifics on these brackets.
- Made out of 12 gauge steel that offers superior strength.
- Available four colors to easily blend in with most project designs: black, white, stainless steel and primed
- Optional mounting holes on sides of black brackets to install your finishing panel if desired (you can view the directions for optional finishing panel installation here).
- Accommodates 22” to 26” deep countertops
- Spring clips and screws are provided with the bracket for easy on/off skirt attachment
- No visible fasteners to detract from the design and installation.
- No tools required to remove and reinstall the skirt.
- Mounting holes are provided for skirt if you do not wish to use spring clips.
- 3” x 3” cut out for wall cleat and wire run clearance.
Please note – these brackets must be purchased in quantities of 2.
Sturdy and Safe – Giving Our Customers and Your Clients Confidence
Our customers make repeated purchases of these brackets because they trust the safety and design. Here’s a recent review we’ve received:
Great Product – Easy to Use
- Strong product that is easy to use and gives great support.
- These brackets give us confidence that our installs will be safe and last forever. We have used this bracket and it is sturdy and easy to use. When we leave a job after using these brackets, we have no worries about the quality of our final product.
Simple Installation
Your crews will find this bracket to be easy to install. For your reference, here’s a quick list of the three-step instructions.
ADA Vanity Mounting Instructions
- Mount ADA Brackets to the wall securing it to meet local building code required loading requirements for the vanity front edge. Please note: double studs or metal mounting plates are recommended for a stronger installation. Also, be sure to use ADA bowls when using the ADA Brackets.
- Install spring clips to the back of the face board.
- Spring Clips should be installed with 12 ¾ inches between the top of the top bracket and the top of the bottom bracket. There will be some side to side allowance on the clip installation. Be sure to allow 1” clearance between the top of your face board and the bottom of the top portion of the bracket to allow the face board to slide up for removal.
Order and install with confidence! We’re happy to answer any questions you have about these ADA vanity brackets. Just give our experienced sales team a call, toll-free, at 800-220-1966 or email us at [email protected]. We’ll be happy to help!
