Description

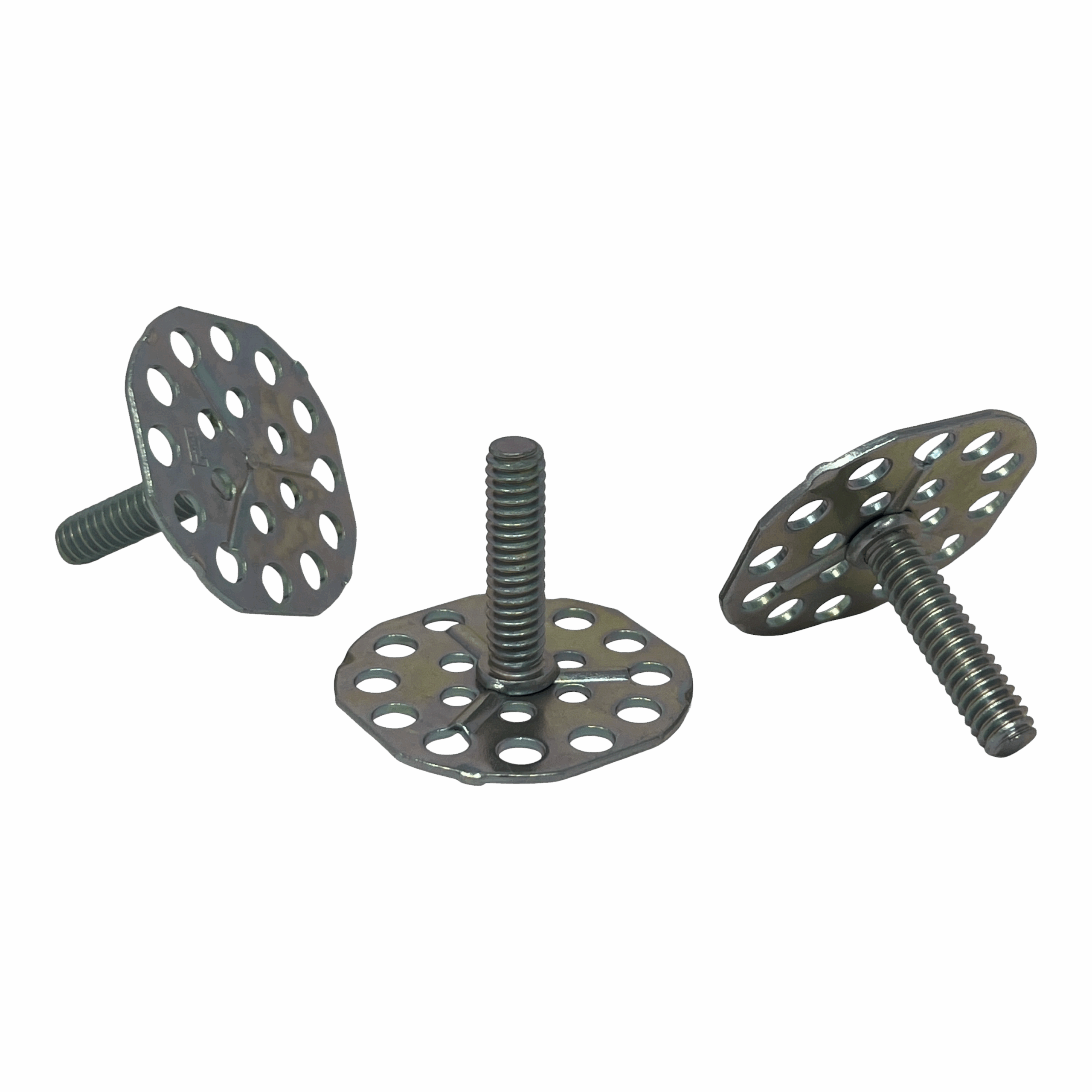

The SpecialInsert M1 Series are male-threaded adhesive bonding fasteners designed for permanent, high-strength attachment without drilling or welding. Available in multiple base shapes — round, rectangular, and square — the M1 line provides secure mounting points that bond directly to metal, composite, or plastic substrates using structural adhesives.
M1 fasteners are part of our Core Range of stocked solutions, trusted in signage, marine, transportation, and general manufacturing where mechanical fastening isn’t feasible or desired. These heavy-duty studs can also be embedded during molding or bonded post-production for a clean, reliable, weld-free installation.
🔗 View the full Core Range collection
Key Features & Benefits
-
Weld-free installation: No drilling, no distortion, no galvanic corrosion.
-
Available base types: Round, square, or rectangular for flexibility in layout and load distribution.
-
Threaded male stud: Accepts standard hardware; ideal for direct mounting.
-
Corrosion-resistant: Offered in zinc-plated or stainless steel construction.
-
Compatible with structural adhesives: LORD® 406/19, Chem-Set™ 420GB, Huntsman Araldite® 2053-05.
M1 Series Technical Specifications (Core Range Sizes)
| SKU | Base Size / Type | Thread Size | Length | Material |
|---|---|---|---|---|
| CCH-M1B23-1/4-20X1 | 23mm (0.9”) Round | 1/4”-20 | 1” | Zinc-Plated Steel |
| CCH-M1B23-1/4-20X3/4 | 23mm (0.9”) Round | 1/4”-20 | 3/4” | Zinc-Plated Steel |
| CCH-M1Y3232-1/4-20X1 | 32mm (1.25”) Square (RS Solid Base) | 1/4”-20 | 1” | Zinc-Plated Steel |
| CCH-M1T38-10-32X3/4 | 38mm × 15mm Rectangular | 10-32 | 3/4” | Zinc-Plated Steel |
| CCH-M1T38-1/4-20X1 | 38mm × 15mm Rectangular | 1/4”-20 | 1” | Zinc-Plated Steel |
| CCH-M1T38-1/4-20X3/4 | 38mm × 15mm Rectangular | 1/4”-20 | 3/4” | Zinc-Plated Steel |
| CCH-M1Y3815-1/4-20X1 | 38mm × 15mm Rectangular (RS Solid Base) | 1/4”-20 | 1” | Zinc-Plated Steel |
| SPE-PR16R3815060.12 | 38mm × 15mm Rectangular | M6 | 16mm | Zinc-Plated Steel |
| CCH-M1B38-10-32X3/4 | 38mm (1.5”) Round | 10-32 | 3/4” | Zinc-Plated Steel |
| CCH-M1B38-1/4-20X1/2 | 38mm (1.5”) Round | 1/4”-20 | 1/2” | Zinc-Plated Steel |
| CCH-M1B38-1/4-20X3/4 | 38mm (1.5”) Round | 1/4”-20 | 3/4” | Zinc-Plated Steel |
| CCH-M1B38-1/4-20X1 | 38mm (1.5”) Round | 1/4”-20 | 1” | Zinc-Plated Steel |
| CCH-M1B38-1/4-20X1-1/4 | 38mm (1.5”) Round | 1/4”-20 | 1-1/4” | Zinc-Plated Steel |
| CCH-M1B38-1/4-20X1-1/2 | 38mm (1.5”) Round | 1/4”-20 | 1-1/2” | Zinc-Plated Steel |
| CCH-M1B38-1/4-20X3 | 38mm (1.5”) Round | 1/4”-20 | 3” | Zinc-Plated Steel |
| CCH-M1Y38-1/4-20X3/4 | 38mm (1.5”) Round (RS Solid Base) | 1/4”-20 | 3/4” | Zinc-Plated Steel |
| CCH-M1Y38-1/4-20X1 | 38mm (1.5”) Round (RS Solid Base) | 1/4”-20 | 1” | Zinc-Plated Steel |
| CCH-SSM1B38-1/4-20X1 | 38mm (1.5”) Round | 1/4”-20 | 1” | Stainless Steel |
Recommended Adhesives by Substrate
| Substrate Type | Recommended Adhesives |
|---|---|
| Metal & Composites | LORD 406/19, Chem-Set™ 420GB, Huntsman Araldite® 2053-05 |
| Plastic & FRP | LORD 406/19, Plexus MA300, Chem-Set™ 420GB |
| Stone, Glass, Wood | LORD 310A/B, Huntsman Araldite® 2012 |
| Note: | Primer recommended for optimum bond on glass. |
Typical Applications
-
Signage and architectural assemblies
-
Marine hardware and deck fittings
-
Industrial enclosures and housings
-
Automotive and transportation interiors
-
Aerospace and defense components
Why Choose Chemical Concepts
- Stocked Core Range: Fast shipping on standard M1 sizes
- Proven Durability: Trusted by OEM, marine, and aerospace manufacturers
- Application Support: Expert recommendations for adhesives and installation
📞 Call 800-220-1966 | ✉️ [email protected]
