Description
The SpecialInsert F1 Series are female adhesive-bonded fasteners featuring internal threads for bolted connections where access from one side is limited. Designed for adhesive bonding instead of drilling or welding, these zinc-plated and stainless-steel fasteners create reliable threaded anchor points on metal, composite, and plastic substrates.

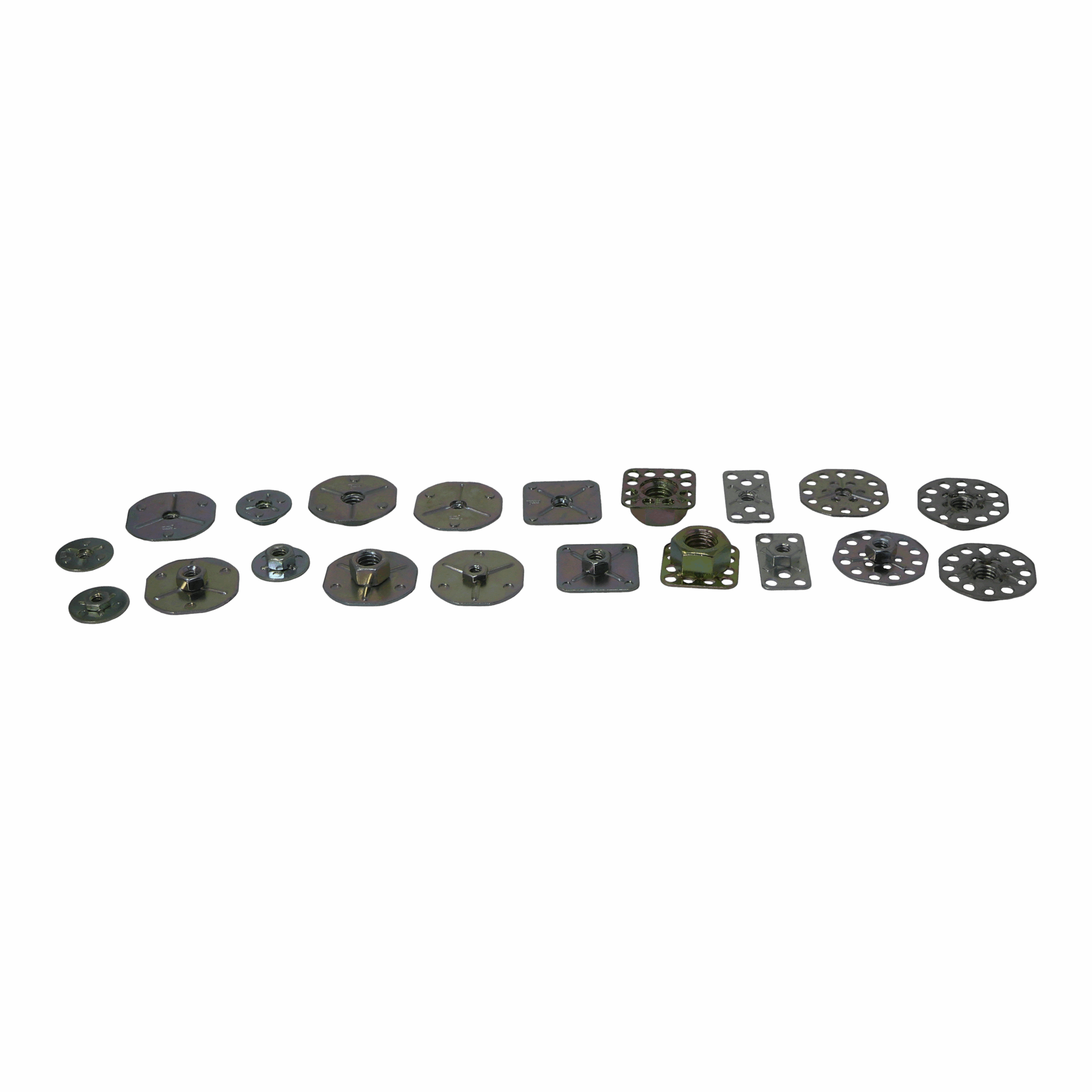

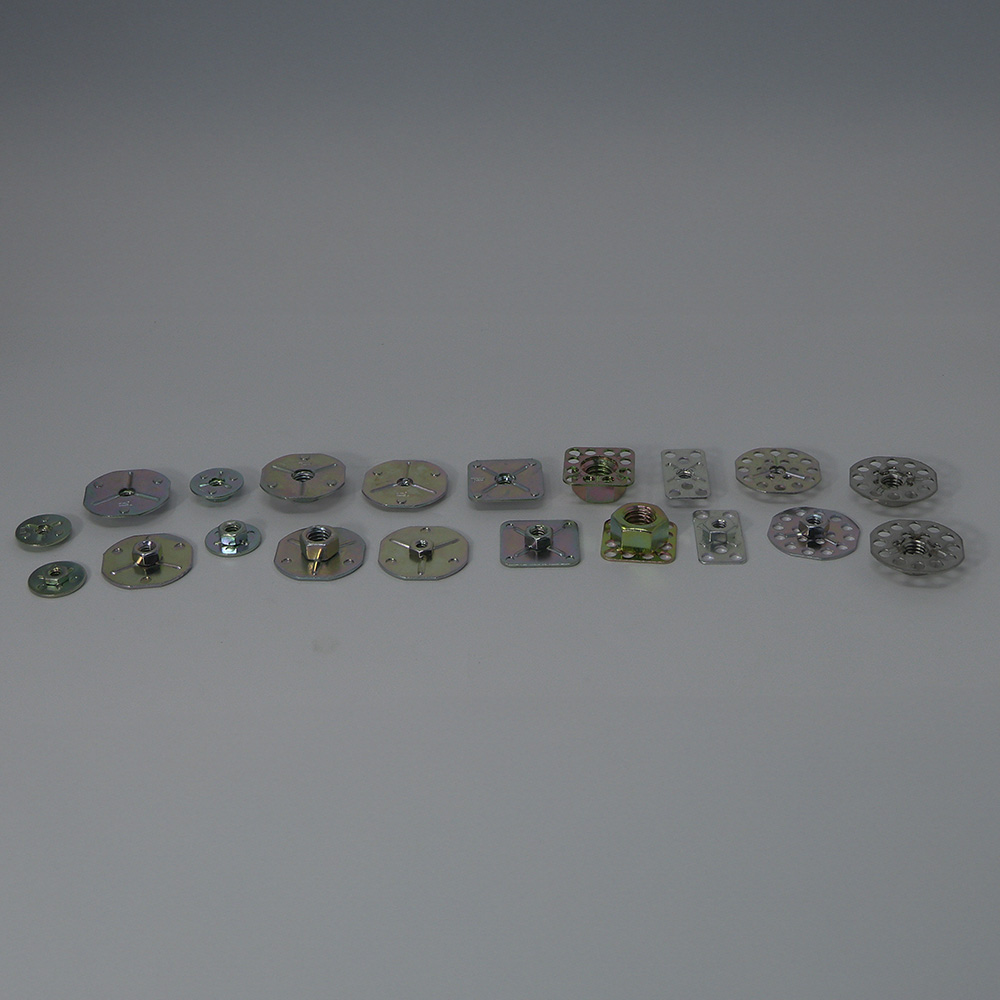

The F1 family includes round, rectangular, and square base options — allowing flexible installation across signage, marine, aerospace, and OEM applications. As part of our Core Range, these models are stocked for fast delivery and consistent performance in structural bonding applications.
🔗 View the full Core Range collection
Key Features & Benefits
-
Drill-free installation: Bonds with structural adhesive — no holes, rivets, or welding required.
-
Internal thread design: Provides strong anchor points for standard bolts or threaded components.
-

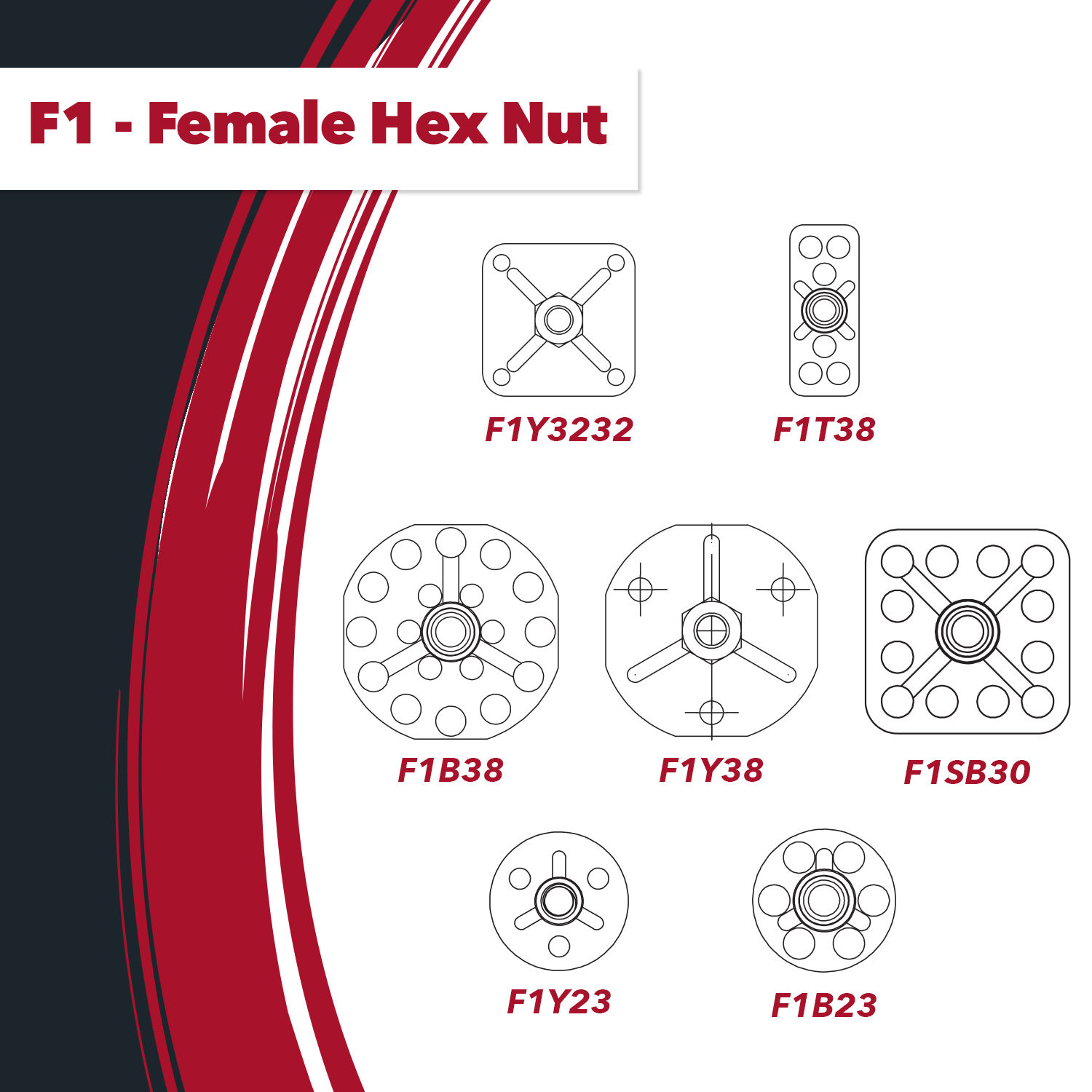

Multiple base styles: Round, rectangular, and square plates suit various layout and load needs.
-
Corrosion-resistant materials: Available in zinc-plated or stainless steel.
-
Compatible with top adhesives: LORD® 406/19, Chem-Set™ 420GB, Huntsman Araldite® 2053-05.
-
Ideal for blind-hole or through-hole configurations.
F1 Series Technical Specifications (Core Range Sizes)
| SKU | Base Size / Type | Thread Size | Configuration | Material |
|---|---|---|---|---|
| CCH-F1B23-10-24 | 23mm (0.9”) Round | 10-24 | Standard | Zinc-Plated Steel |
| CCH-SSF1B23-1/4-20 | 23mm (0.9”) Round | 1/4”-20 | Standard | Stainless Steel |
| CCH-F1B23-1/4-20 | 23mm (0.9”) Round | 1/4”-20 | Standard | Zinc-Plated Steel |
| CCH-F1SB30-1/4-20 | 30mm (1.2”) Square | 1/4”-20 | Standard | Zinc-Plated Steel |
| CCH-F1SB30-1/2-13 | 30mm (1.2”) Square | 1/2”-13 | Standard | Zinc-Plated Steel |
| CCH-F1Y3232-1/4-20 | 32mm (1.25”) Square (RS Solid Base) | 1/4”-20 | RS Base | Zinc-Plated Steel |
| CCH-F1T38-10-24 | 38mm × 19mm Rectangular | 10-24 | Standard | Zinc-Plated Steel |
| CCH-F1CT38-10/32NF | 38mm × 19mm Rectangular | 10-32 | Standard | Zinc-Plated Steel |
| CCH-F1T38-1/4-20 | 38mm × 19mm Rectangular | 1/4”-20 | Standard | Zinc-Plated Steel |
| CCH-F1B38-1/4-20 | 38mm (1.5”) Round | 1/4”-20 | Standard | Zinc-Plated Steel |
| CCH-F1B38-10-24 | 38mm (1.5”) Round | 10-24 | Standard | Zinc-Plated Steel |
| CCH-F1Y38-10-24 | 38mm (1.5”) Round (RS Solid Base) | 10-24 | RS Base | Zinc-Plated Steel |
| CCH-F1CB38-1/4-20 | 38mm (1.5”) Round | 1/4”-20 | Closed Back | Zinc-Plated Steel |
| CCH-F1B38-5/16-18 | 38mm (1.5”) Round | 5/16”-18 | Standard | Zinc-Plated Steel |
| CCH-F1B38-3/8-16 | 38mm (1.5”) Round | 3/8”-16 | Standard | Zinc-Plated Steel |
| CCH-F1B38-1/2-13 | 38mm (1.5”) Round | 1/2”-13 | Standard | Zinc-Plated Steel |
| CCH-SSF1B38-10-24 | 38mm (1.5”) Round | 10-24 | Standard | Stainless Steel |
| CCH-SSF1B38-1/4-20 | 38mm (1.5”) Round | 1/4”-20 | Standard | Stainless Steel |
| CCH-SSF1B38-3/8-16 | 38mm (1.5”) Round | 3/8”-16 | Standard | Stainless Steel |
Recommended Adhesives by Substrate
| Substrate Type | Recommended Adhesives |
|---|---|
| Metal & Composites | LORD 406/19, Chem-Set™ 420GB, Huntsman Araldite® 2053-05 |
| Plastic & FRP | LORD 406/19, Plexus MA300, Chem-Set™ 420GB |
| Stone, Glass, Wood | LORD 310A/B, Huntsman Araldite® 2012 |
| Note: | Primer recommended for optimum bond on glass. |
Typical Applications
-
Channel letter and architectural signage
-
Marine interior and exterior bonding
-
Aerospace and automotive panels
-
Electrical housings and enclosures
-
Industrial fixture or component mounting
Why Choose Chemical Concepts
- Core Range Availability: Stocked sizes for quick shipment
- Trusted Construction: Used by OEMs and aerospace fabricators worldwide
- Expert Guidance: Adhesive and load recommendations from our technical team
