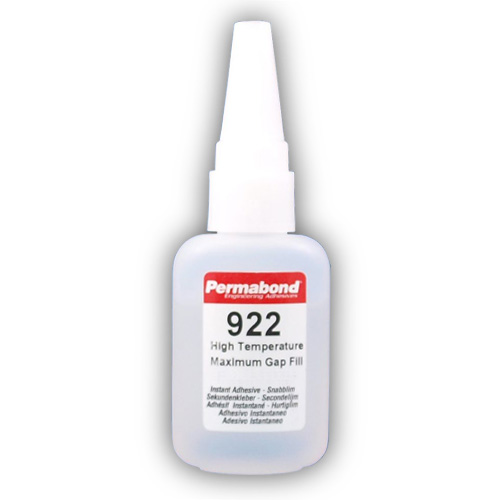

Permabond 922 High-Temperature Instant Adhesive

Description

Permabond® 922 is a high-temperature-resistant, moderate-viscosity cyanoacrylate adhesive designed for fast, strong bonding of metals, plastics, and rubbers. Unlike standard cyanoacrylates, Permabond 922 withstands temperatures up to 250°C (482°F) when post-cured, making it ideal for applications exposed to extreme heat such as aerospace, electronics, and industrial manufacturing.

This single-component adhesive cures rapidly at room temperature upon contact with surface moisture. It meets MIL-SPEC MIL-A-46050C Type V, Class 3 (existing designs), ensuring compliance for military, aerospace, and industrial applications.

For customers looking for alternatives to Loctite® 4203, 3M™ Scotch-Weld™ PR600, or Permatex® High-Temperature Super Glue, Permabond 922 provides a premium, heat-resistant bonding solution.

Key Features & Benefits

✅ High-Temperature Resistance – Withstands up to 250°C (482°F) after post-curing
✅ MIL-SPEC Compliant – Meets MIL-A-46050C Type V, Class 3
✅ Fast-Setting Formula – Achieves handling strength in 15-20 seconds
✅ Bonds a Wide Range of Materials – Adheres to metals, plastics, ceramics, and rubbers
✅ Excellent Heat & Chemical Resistance – Ideal for harsh environments
✅ Single-Part, No Mixing Required – Easy-to-use for fast production
✅ 100% Solids, Solvent-Free – Eco-friendly with no VOCs

Technical Specifications

• Viscosity: 1,200-2,000 mPa.s (moderate viscosity)
• Gap Fill: 0.4 mm (0.017 in)
• Fixture / Handling Time:
  • Steel: <20 sec
  • NBR Rubber: <15 sec
  • Buna-N Rubber: <45 sec
  • Phenolic: <45 sec
• Full Cure Time: 24 hours
• Shear Strength (ISO 4587):
  • Steel: 19-23 N/mm² (2800-3300 psi)
• Impact Strength (ASTM D-950): 3-5 kJ/m² (1.4-2.4 ft-lb/in²)
• Temperature Range: -55°C to 250°C (-65°F to 482°F)
• Color: Clear

High-Temperature Post-Cure Process

To activate maximum heat resistance, follow this post-curing process:

1. Bond and clamp parts at room temperature for at least 4 hours.
2. Heat parts to 150°C (302°F) for 2 hours while keeping them clamped.
3. The adhesive will now be thermally resistant up to 250°C (482°F).

Applications

• High-temperature industrial and aerospace applications
• Electronics and electrical component bonding
• Automotive manufacturing and under-hood applications
• Medical device and high-heat-resistant bonding
• Precision manufacturing in harsh environments

Directions for Use

1. Ensure surfaces are clean, dry, and grease-free. Use acetone or isopropanol for best results.
2. Apply Permabond 922 sparingly to one surface only.
3. Quickly align and press components together. Apply even pressure to ensure a thin, even adhesive film.
4. Hold in place for 15-20 seconds until initial bond forms.
5. Allow 24 hours for full strength development.
6. For high-temperature applications, follow the post-curing process outlined above.
7. For difficult or porous surfaces, use Permabond CSA or QFS 16 Activator.

🔹 Note: For bonding polypropylene, polyethylene, PTFE, or silicone, use Permabond Polyolefin Primer (POP) before applying adhesive.
