Description

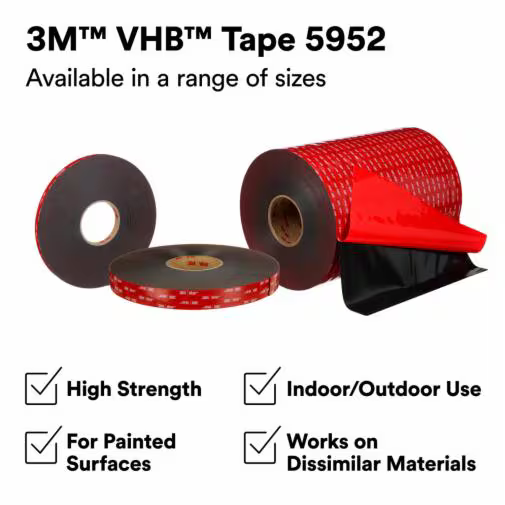

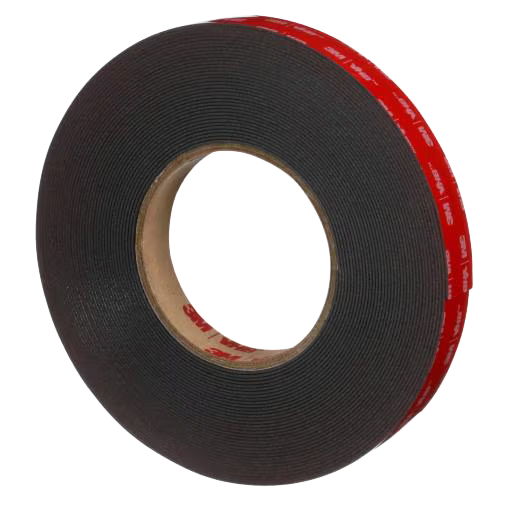

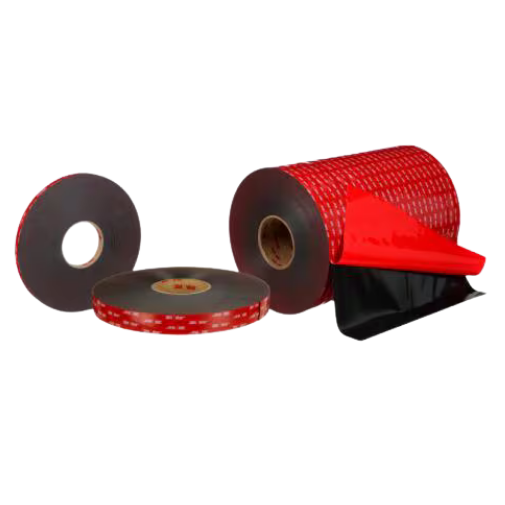

3M VHB 5952 Black High Bond Tape is a 45 mil double-sided acrylic foam tape for permanent bonding to metal, glass, powder coat, and plastics without screws, rivets, or welds. It carries high static and dynamic loads, absorbs vibration and thermal movement, and resists moisture and solvents for long-term indoor and outdoor holds. Select your roll width below.
3M VHB 5952 Benefits
- Replaces mechanical fasteners and welds, removing drilling, grinding, and rework at the bench
- Conformable black acrylic foam core spreads stress and dampens vibration across the bond line
- Bonds a wide range of high and medium surface energy metals, glass, and rigid plastics
- Holds through temperature swings, UV exposure, moisture, and solvents
- Clean, fast assembly with no mixing and no cure equipment
Common Applications
- Mounting nameplates, trim, and brackets on powder-coated and painted panels
- Bonding glass, metal, and rigid plastic panels in fabrication and signage
- Attaching displays, POP fixtures, and architectural elements
- Vibration-resistant bonds on transportation and equipment assemblies
- Fastener replacement where a clean, sealed bond line is needed
Surface Prep and Use
Clean and dry both surfaces with isopropyl alcohol and let them flash off before applying. Press the tape firmly to wet out the adhesive, and prime low surface energy plastics with a 3M adhesion promoter for the strongest bond. Bond strength builds over the first 72 hours at room temperature.
Ordering and Product Support

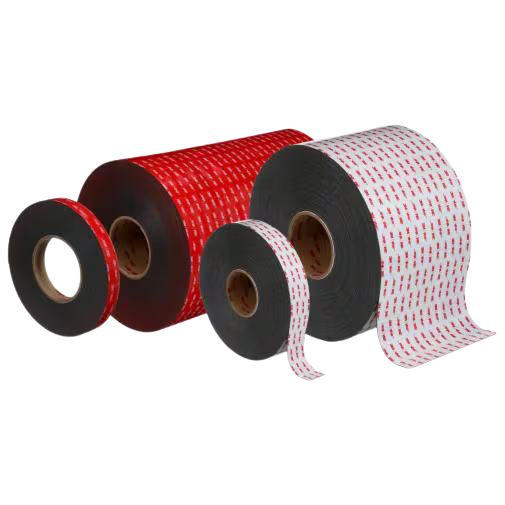

3M VHB 5952 is stocked in 1/2 in and 1 in widths on 36 yard rolls. Browse our high-bond and acrylic-foam tapes for related options, and review manufacturer resources at 3M.
If you need help choosing the right VHB width or thickness for your application, call (800) 220-1966 or email [email protected].
