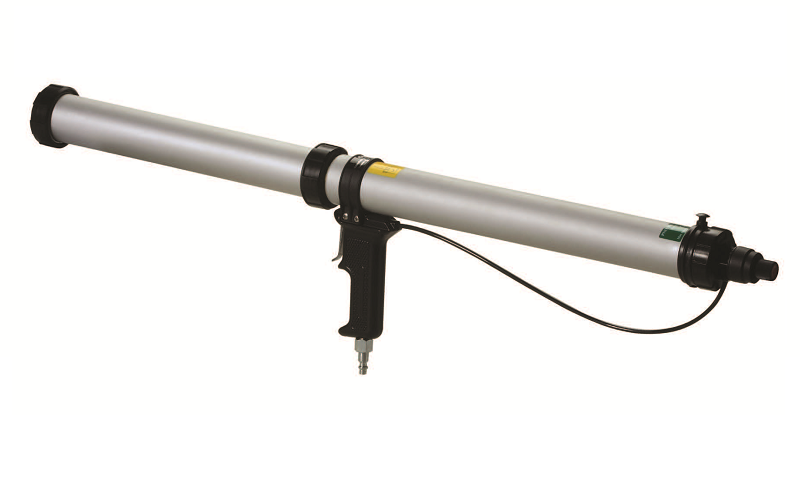

Cox AirFlow 1 Bulk 800 Pneumatic Dispenser

Description

The Cox AirFlow 1 Bulk 800 is a pneumatic single-component dispenser for applying low- to medium-viscosity material from a 700 mL (24 oz) bulk fill. Its material path works with the selected Cox AirFlow 1 dispenser, cone nozzle, and job-specific outlet arrangement, giving installers a powered alternative to repeated manual plunging on long or high-volume beads.

Cox AirFlow 1 Dispenser Fitment and Material Path

This model uses piston-rod action on bulk material and a leather plunger assembly. Reverse air returns the plunger through the trigger, while the quick exhaust valve supports responsive control between dispensing cycles. Six yellow cone nozzles are included for adapting the outlet to the bead size and access point required by the job.

Confirm the complete path before loading material. Check the compound’s package format, viscosity range, nozzle connection, outlet diameter, hose or extension needs, and the clean-air supply available at the workstation. The product is a one-component bulk dispenser, so it does not meter or mix separate resin and hardener streams. Two-part cartridge work requires a compatible multi-component system.

Cox AirFlow 1 Dispenser Setup and Buying Format

• Bulk capacity: 700 mL (24 oz)
• Drive type: pneumatic
• Material system: one component
• Viscosity range: low to medium
• Plunger return: reverse air through the trigger
• Barrel material: anodized aluminum
• Handle material: epoxy-coated aluminum
• Included outlets: six yellow cone nozzles
• SKU: COX-DP1C800-CM-145-119

Before startup, inspect the barrel, plunger, regulator, trigger, and nozzle path. Load only material approved for bulk pneumatic dispensing, seat the plunger correctly, and increase air gradually during the setup bead. A consistent bead depends on material condition, outlet restriction, operator travel speed, and the selected regulator setting. When the tool is idle, follow the material supplier’s guidance for pressure relief and nozzle protection.

Choose this dispenser when a 700 mL bulk format and pneumatic drive suit the work cell. Browse related dispensers, mixers, and nozzles for compatible application hardware. Visit Cox dispenser resources for manufacturer information.
