Description

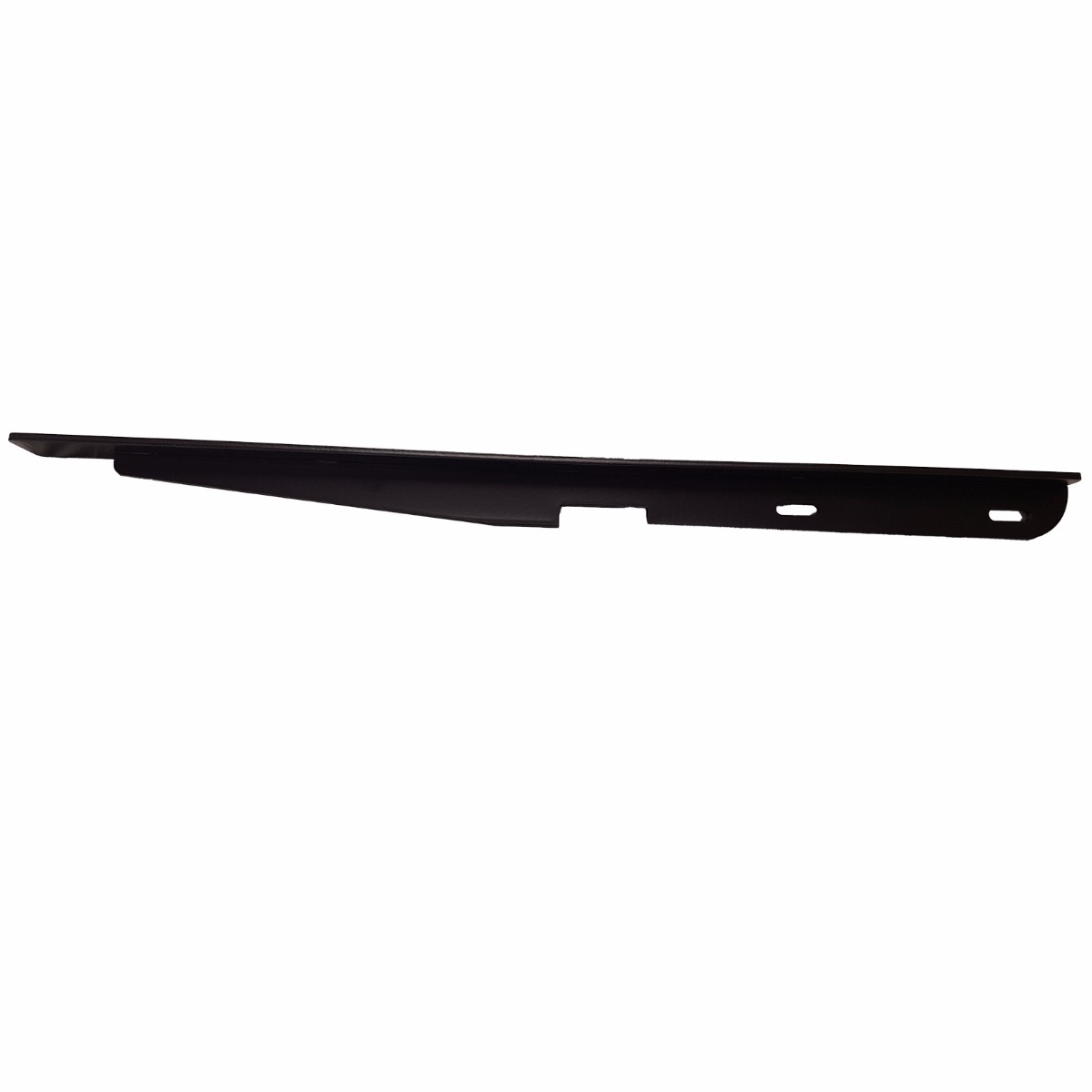

CounterBalance IslandBar 24 is a concealed steel support bracket for island and peninsula countertop overhangs above cabinetry. The 24-inch bar attaches to a left or right cabinet wall, placing structural support beneath the countertop while preserving open knee space. Its low-profile form replaces visible corbels in layouts where a clean, floating appearance matters.
Where the IslandBar Fits
The bracket is designed for one-sided cabinetry overhangs. Published sizing guidance supports 12 to 18 inches of overhang for 3 cm or 1 1/4-inch countertop material, and 12 to 15 inches for 2 cm or 3/4-inch material. Final spacing and overhang must also account for the countertop material, cabinet construction, edge details, seams, and any fabricator requirements. Full-overlay doors or limited cabinet framing may call for a different support style.
Installation Planning
Install the bars no more than 16 to 20 inches apart for optimum performance. Position each bracket so the support ends roughly 3 to 6 inches back from the finished counter edge. The integrated notch helps with full-length placement, while the bar may sit farther back inside the cabinet for a shorter overhang. Route or prepare the cabinet wall as directed, fasten into sound material, and confirm that the bracket sits level before the countertop is placed. Dry-fitting the complete layout helps avoid conflicts with drawers, doors, plumbing, and internal cabinet hardware.
CounterBalance IslandBar 24 Specifications
| Property | Value |
|---|---|
| SKU | CCH-CBIB2 |
| Length | 24 inches |
| Width | 1.75 inches |
| Height | 1.75 inches |
| Mounting location | Left or right cabinet wall |
| Overhang type | One-sided island or peninsula |
| Suggested spacing | No more than 16 to 20 inches apart |
| Country of manufacture | USA |
Confirm countertop thickness and the required overhang before selecting bracket quantity. Check each cabinet wall for solid fastening points and use the project drawings to keep every support aligned. Browse related countertop brackets for plates, corner supports, and alternate concealed formats. For cabinet support installation ideas, visit the Chemical Concepts countertop installation video library.
Need Help?
Need help laying out concealed supports for an island or peninsula overhang? Call (800) 220-1966 or email [email protected].
