Fischbach Type ED 310 1/10 Gallon (310 ml) Cartridge

Description

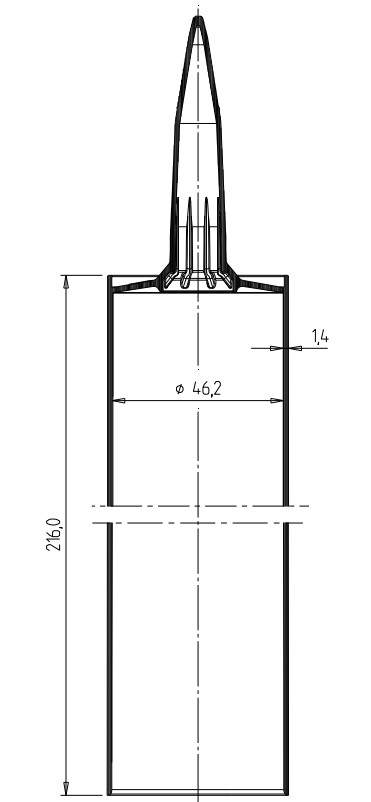

This syringe barrel style cartridge is the Fischbach Type ED 310, a one piece 310 mL (1/10 gallon) container built with an integrated application nozzle rather than a separate tip. The single piece format removes one assembly step from filling lines and keeps the dispensing path consistent from cartridge to nozzle tip.

Syringe barrel construction and filling use

The cartridge is molded from HDPE and weighs approximately 39.0 grams empty, light enough to keep shipping and handling costs down across large filling runs. An optional foil seal across the cartridge shoulder protects the compound during storage and supports clean, complete emptying when the plunger drives the fill toward the integrated nozzle. This syringe barrel format suits plastic and permanently elastic sealing compounds that need a controlled bead without a separate mixing chamber.

Because the barrel and nozzle are one piece, the cartridge is well suited to automatic filling equipment and prefabrication lines that use matching plunger systems. Packaging runs 140 pieces per box or 64 pieces per bundle, sized for production filling rather than single unit retail use. Confirm plunger compatibility and fill volume tolerances with your filling equipment before committing to a production run, since a mismatched plunger diameter can leave residual compound in the barrel after the stroke completes.

Syringe barrel packaging specifications

Specify this cartridge for filling lines that need a one piece dispensing container with a built in nozzle rather than a separate tip fitting. Browse dispensing cartridges, mixers, and nozzles for compatible plungers and accessories. Visit Fischbach for full cartridge specifications and filling equipment compatibility.

Need Help?

Need help matching cartridge volume to your filling equipment? Call (800) 220-1966 or email [email protected].
