Medmix MK GreenLine H283M 400 mL 1:1 Cartridge Dispenser

Description

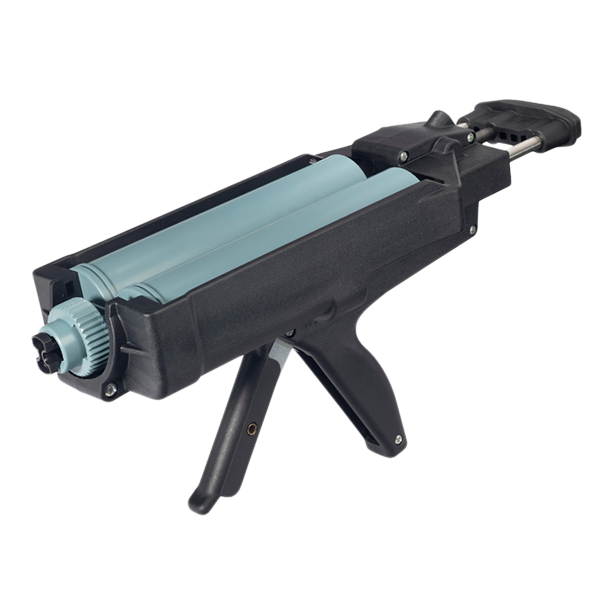

H283M dispenser is a Medmix MK GreenLine two-component applicator for MIXPAC conventional and GreenLine 400 mL 1:1 cartridges. The tool is built for clean manual dispensing where assembly, repair, and fabrication teams need reliable bead control from dual cartridges.

H283M dispenser Benefits

• Supports MIXPAC conventional and GreenLine 400 mL 1:1 cartridge systems.
• GreenLine construction uses at least 45 percent post-industry recycled material in the product listing.
• Anti-drip and trigger-integrated brake release help reduce material waste at bead stops.
• Reinforced nylon barrel housing and high gearing ratio suit repeated industrial use.
• Life-prolonging adjustment screw helps keep the tool useful across daily cartridge changes.

This dispenser fits shops that want a dedicated 400 mL 1:1 manual tool for two-part adhesives, sealants, and potting materials. It keeps cartridge, mixer, and ratio setup clear for operators who need a portable applicator without air lines.

H283M dispenser Applications

• Dispensing 400 mL 1:1 MIXPAC and compatible two-component cartridges.
• Adhesive bonding in countertop, sign, panel, and general assembly work.
• Repair kits where a manual dispenser is easier to stage than pneumatic equipment.
• Prototype builds using cartridge-packaged epoxies, urethanes, silicones, or acrylics.
• Work cells switching from conventional MIXPAC packages to GreenLine cartridge systems.

Setup And Use

Confirm the cartridge volume, ratio, and mixer interface before loading the tool. Seat the cartridge squarely, install the correct static mixer, and purge until both components flow evenly. Replace the mixer when work pauses past the adhesive open time or when trigger force rises.

Keep the rack, plungers, and cartridge seat clean. Cured adhesive on the frame can misalign the package and affect ratio control. Store the dispenser dry and check the adjustment screw during routine tool inspection.

Technical Details And Documentation

Medmix describes GreenLine F-System cartridges as compatible with MIXPAC, MK, and COX two-component dispensers, with cartridge systems made from recycled plastics. Chemical Concepts lists the H283M model for 400 mL 1:1 cartridges with anti-drip brake release, reinforced nylon housing, high gearing ratio, and up to two year warranty. Review current information from Medmix before standardizing the setup.

Dispensing And Ordering Help

For compatible mixers, cartridges, and related applicators, browse Chemical Concepts dispensers, mixers, and nozzles. For help matching ratio, cartridge family, and static mixer, call (800) 220-1966 or email [email protected].
