Monarch Metal Fabrication

Monarch Metal MFSTR 1125 – Clip and Rail System Compatible with Keep-Nut Anchors


From: $7.54

  • Expert Support

  • 50+ Years of Experience

  • Same Day Shipping*

*On in-stock items, placed by 2pm EST

Ask An Expert

Our engineers are ready to help!

Get In Touch Now


Monarch Metal Clip and Rail System for Mounting Facade Panels – Compatible with Keep-Nut anchors for porcelain, natural stone, HPL, solid surface, & more!

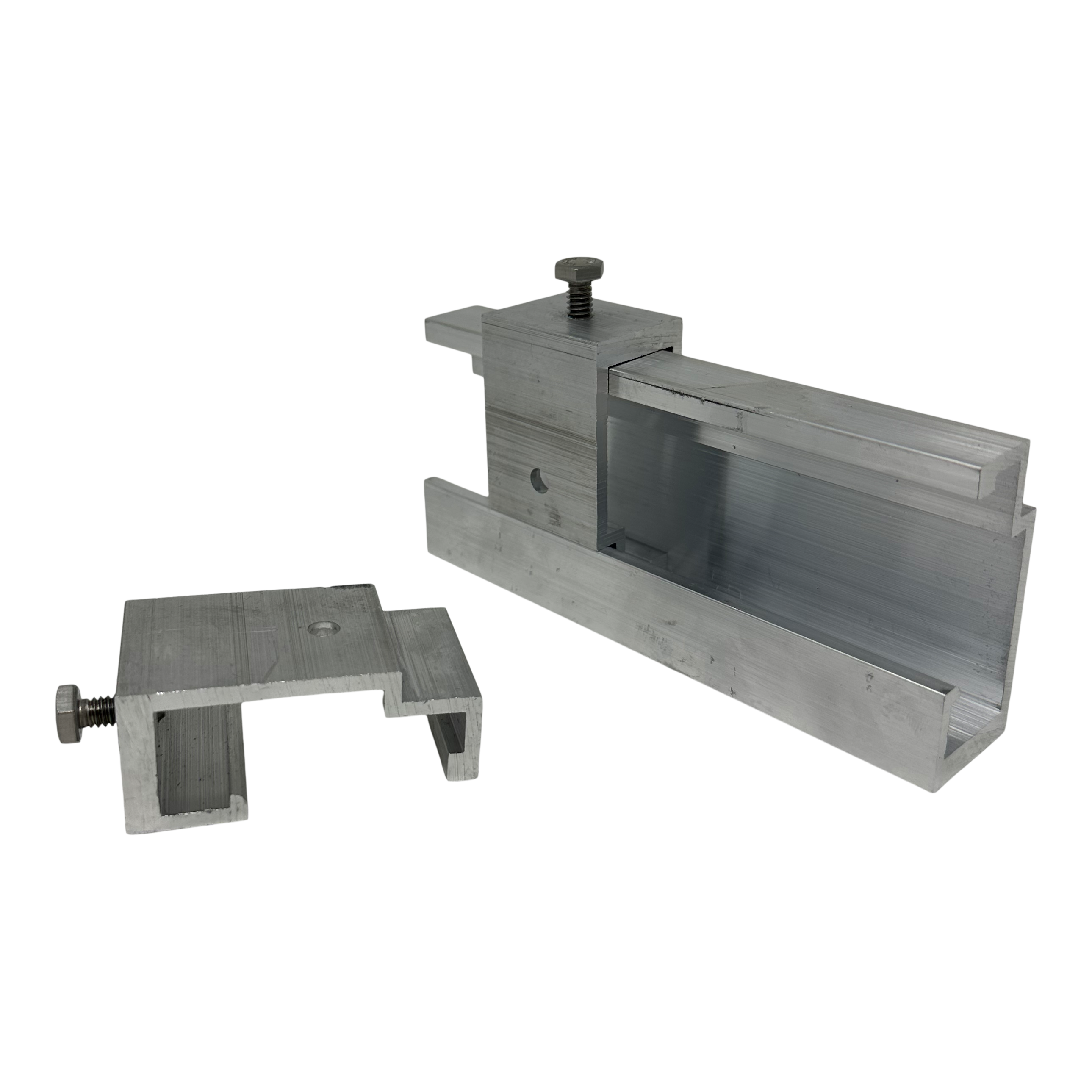

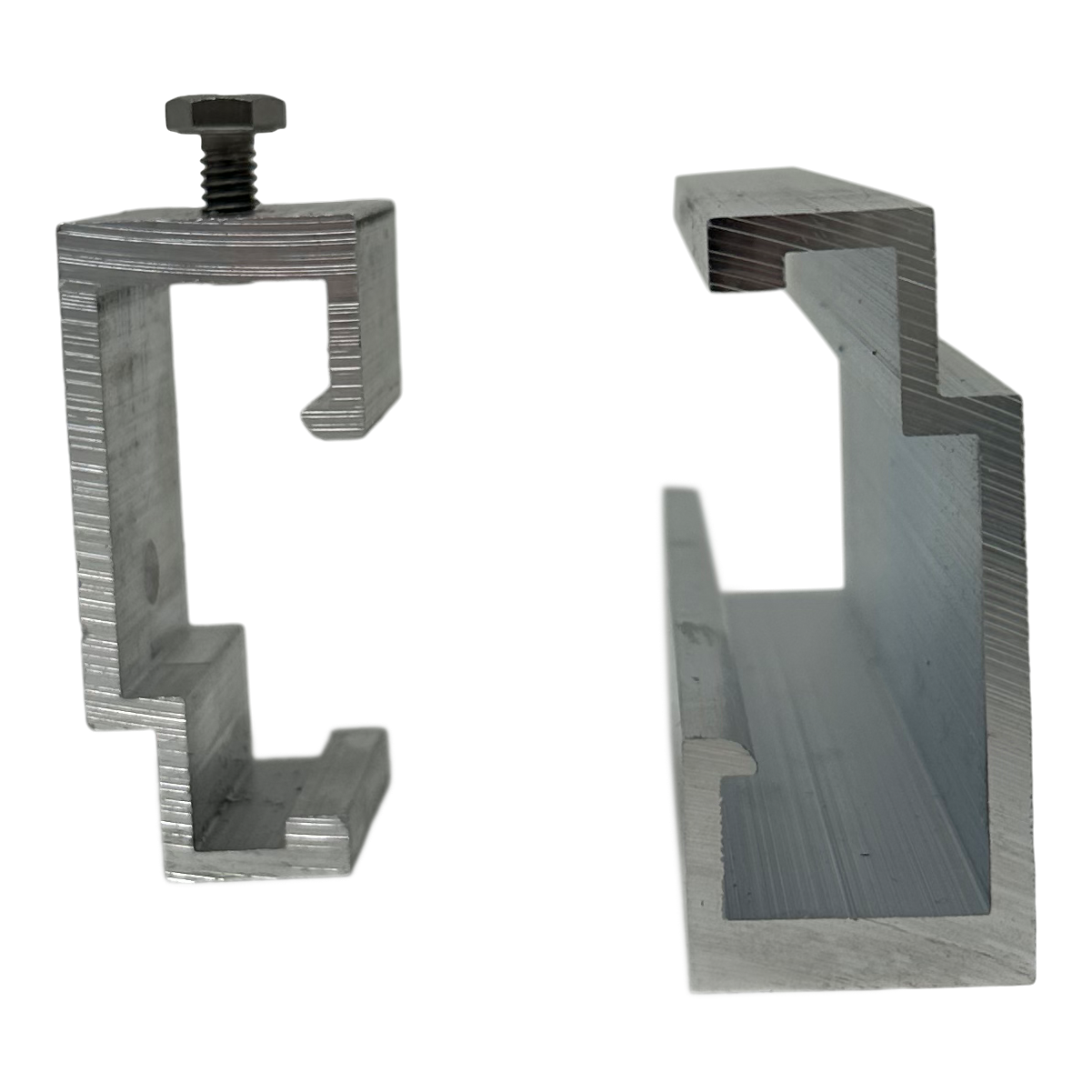

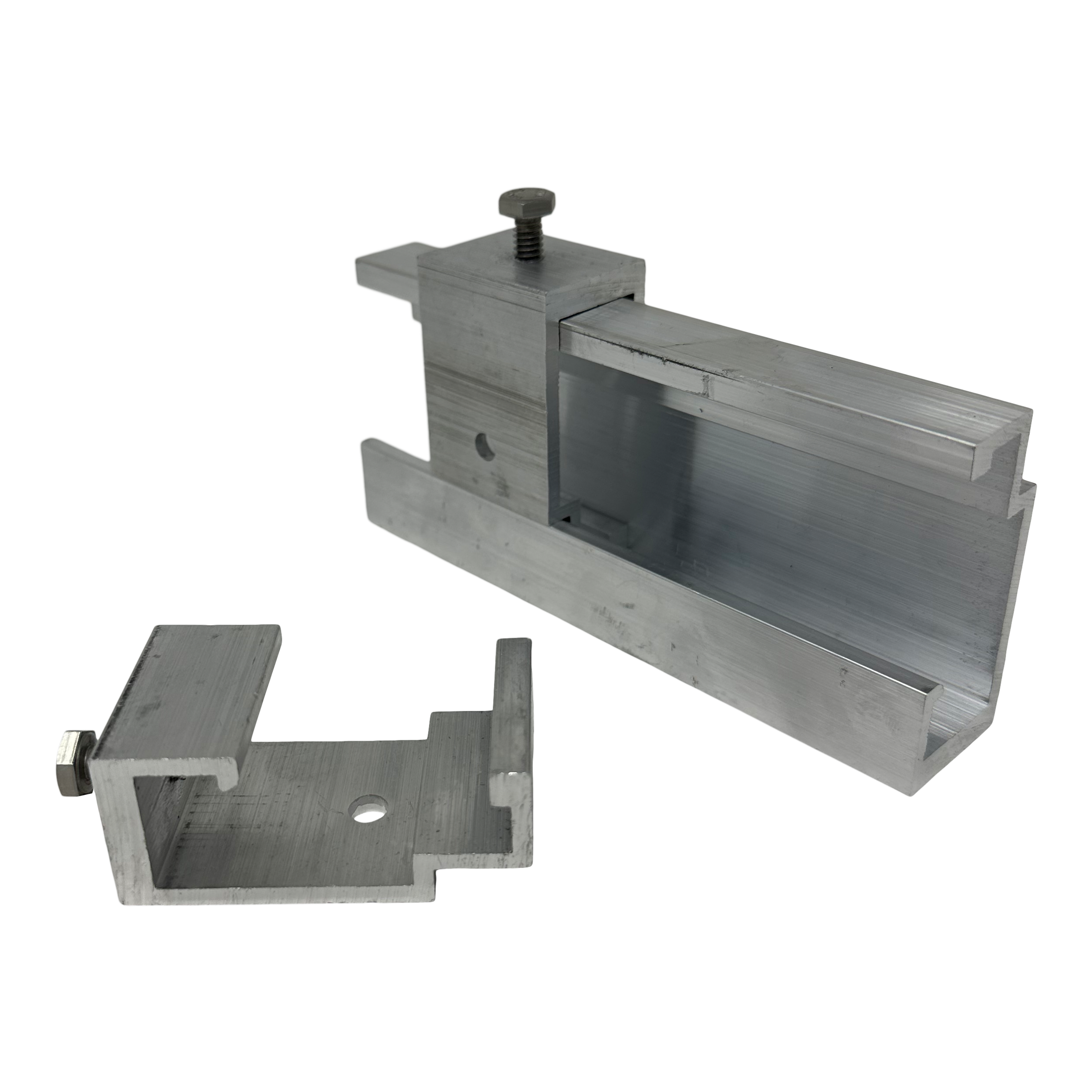

12′ mounting rail with option of either a fixed or adjustable clip. Keep-nut and installation tools sold separately.


  • MRC-MFSTR-1125-1.5I-FIX – Fixed MFSTR 1125 Clip

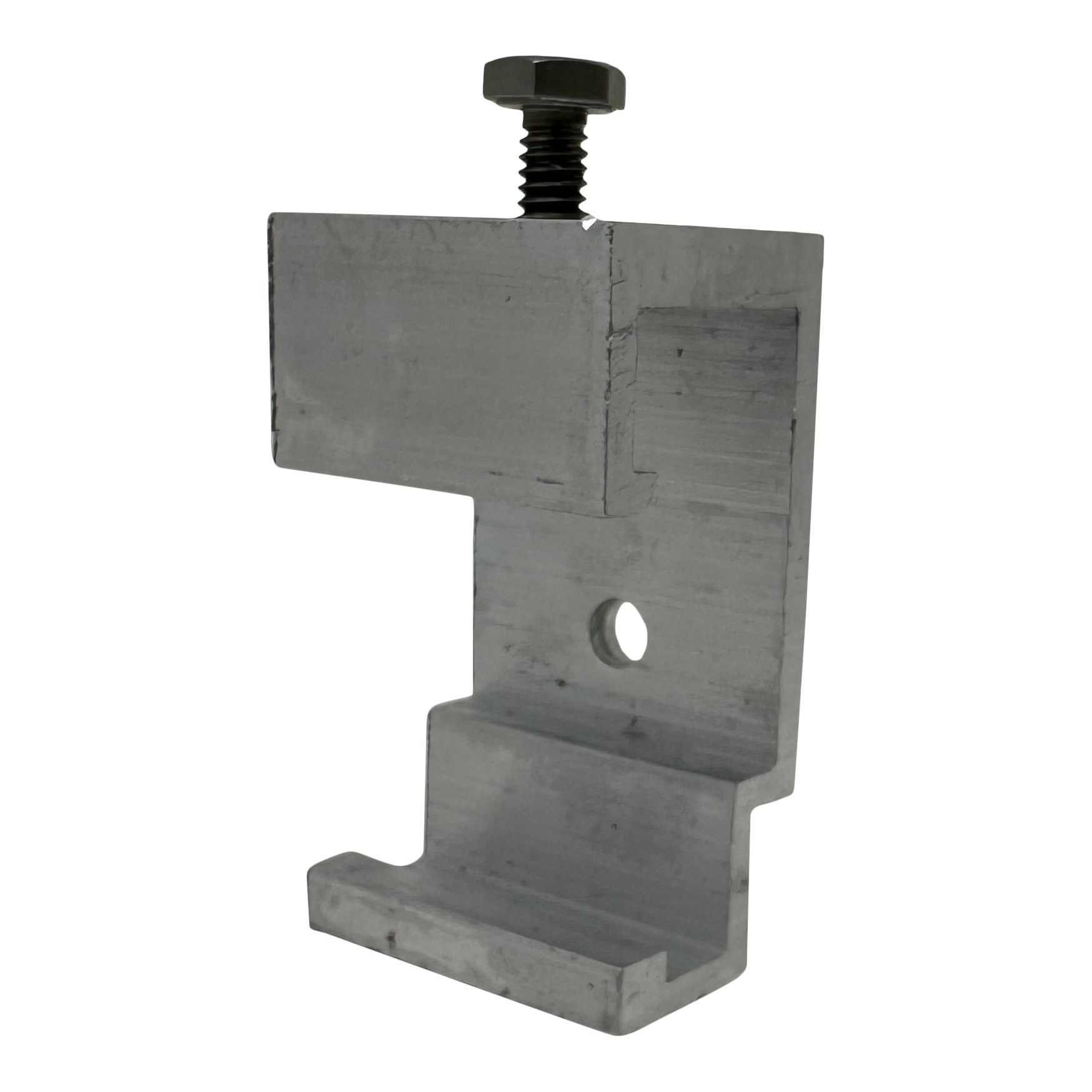

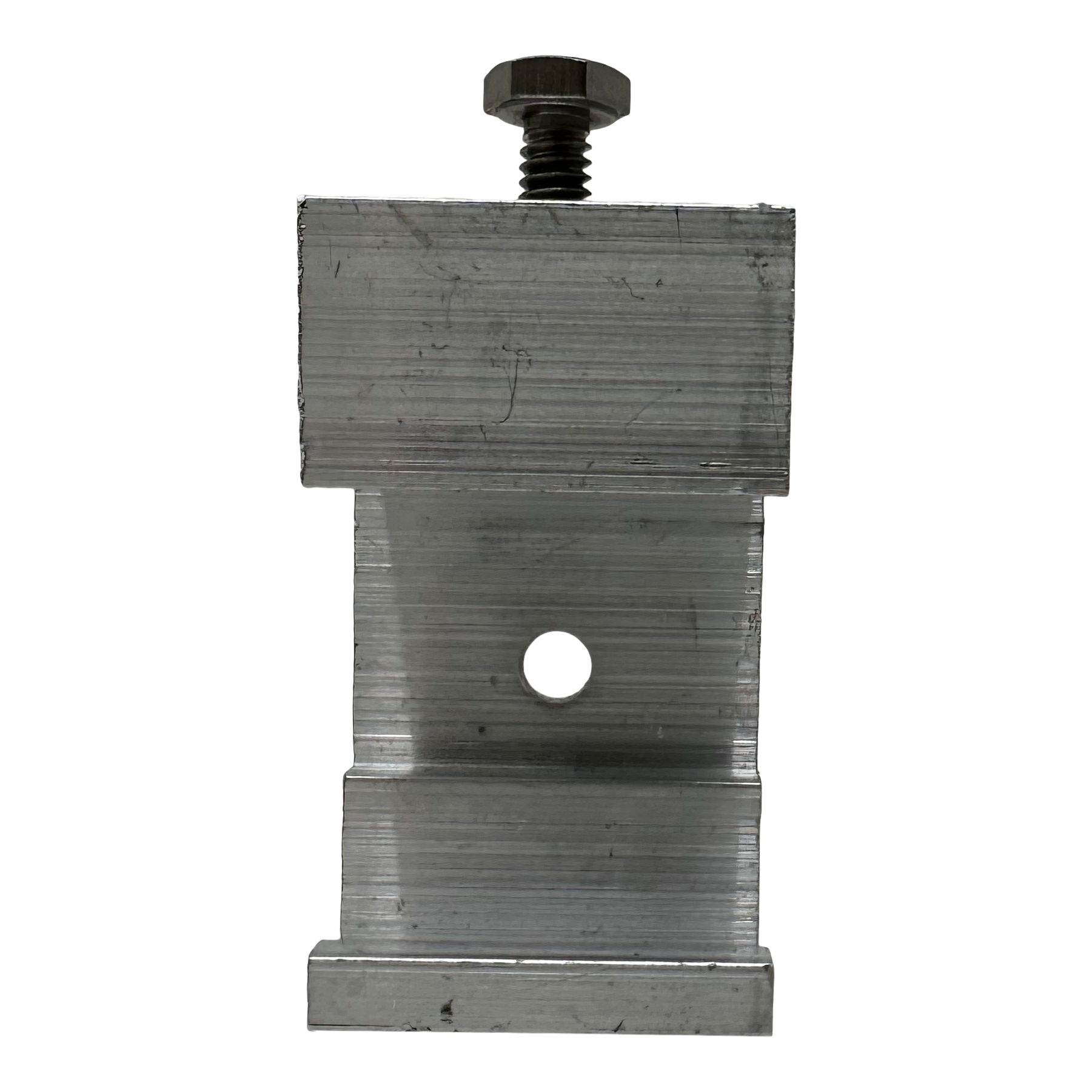

  • MRC-MFSTR-1125-1.5I-ADJ – Adjustable MFSTR 1125 Clip
  • MRC-MFSTR-1125-144 – 12′ MFSTR 1125 Rail (No Holes)
  • MRC-MFSTR-1125-144H4-BK – 12′ MFSTR 1125 Rail (Black, w/ Holes)
  • MRC-MFSTR-1125-144H8 – 12′ MFSTR 1125 Rail (w/ Holes)


  • Patented Keep-Nut fastening system to securely install porcelain, stone or other compact materials in ventilated rain screen applications
  • Panel bracket designed so that the bracket is flush with the back of the panel
  • Adjustable system from Specialinsert is suitable for any kind of material and thickness
  • Heavy duty aluminum system for mounting curtain wall in exterior applications

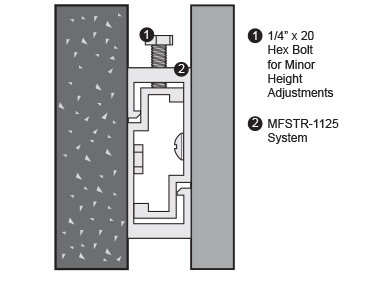

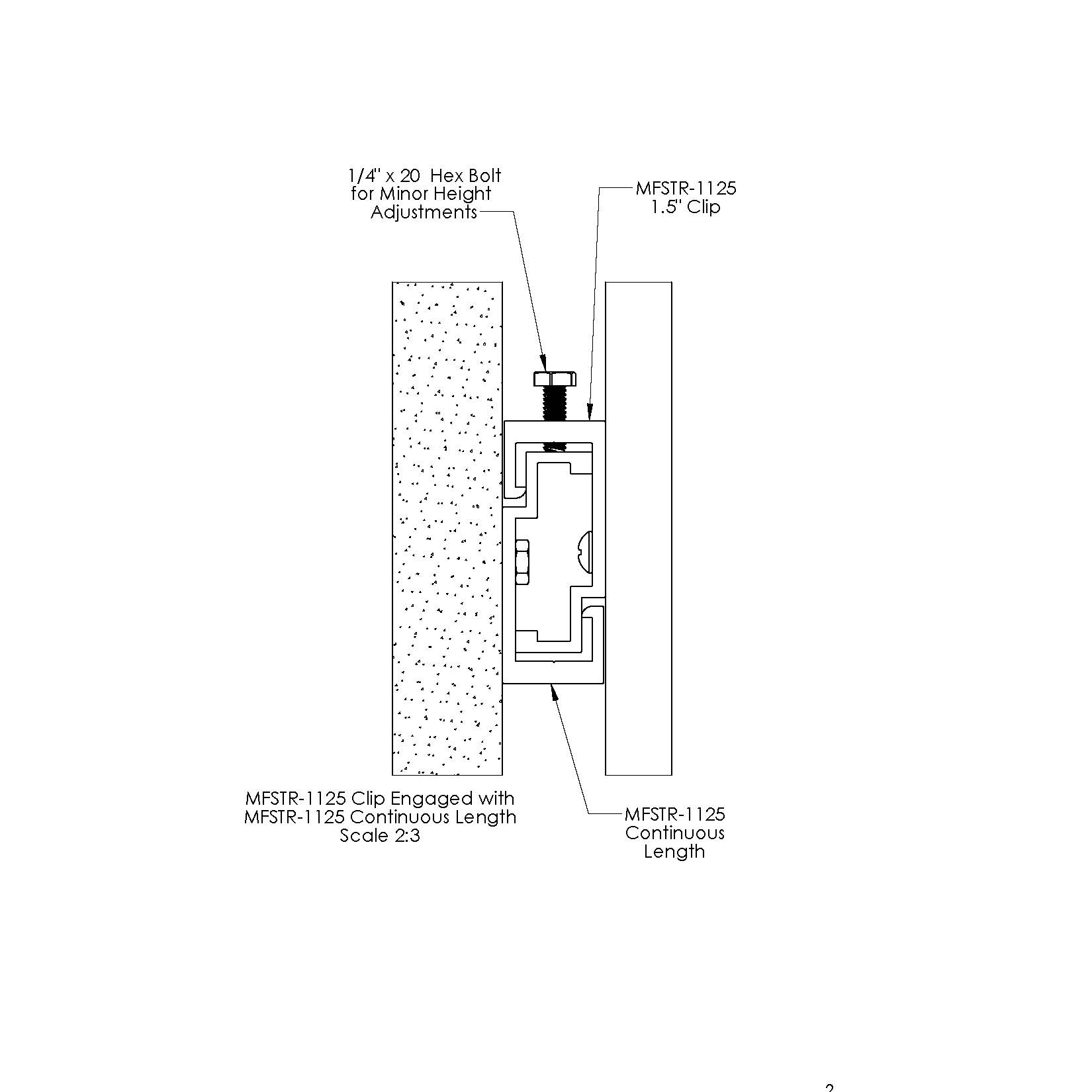

  • Easy adjust bolt on clips for minor height adjustments
  • Easy fit engagement for locating
  • 3/4 inch clearance required above the panel
  • 6063-T6 Aluminum
  • Compatible with heavy duty hex bolts up to 3/8’’ for additional strength
  • Perfect for mounting on concrete block or other difficult materials
Material Aluminum
Stock Clip Size 1.5 Inch
Stock Continuous Length 144 Inch
Custom Lengths Available Any
Lift Off (1) 5/8 Inch
Projection (2) 1 1/8 Inch
Availability Same Day Shipping
(1) The “Lift-Off” is the amount you need to raise the panel over its resting height to mount the panel.
(2) The “Projection” is the distance that the panel sits out from the wall.

Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in

Must Ship Freight

Country Of Manufacture
