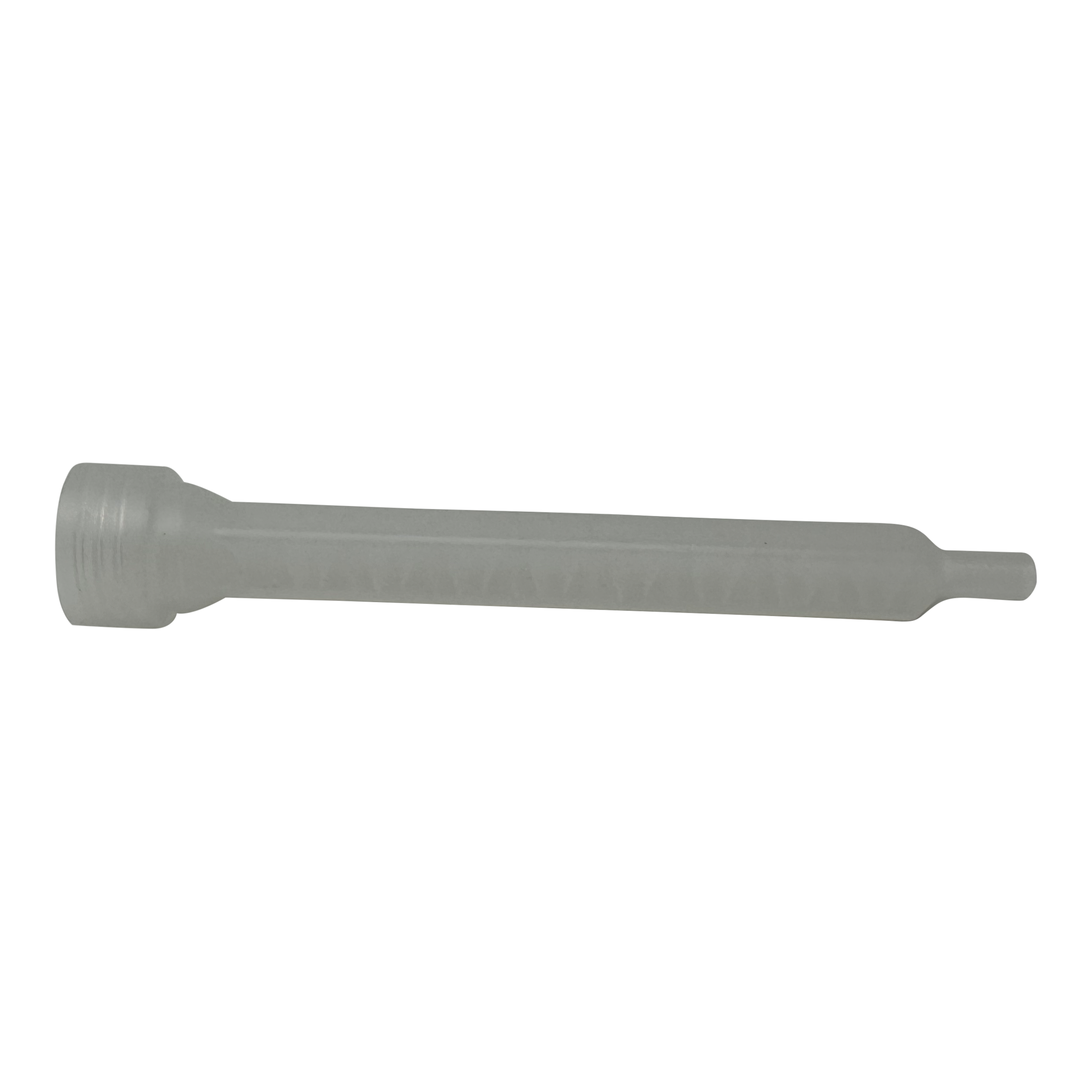

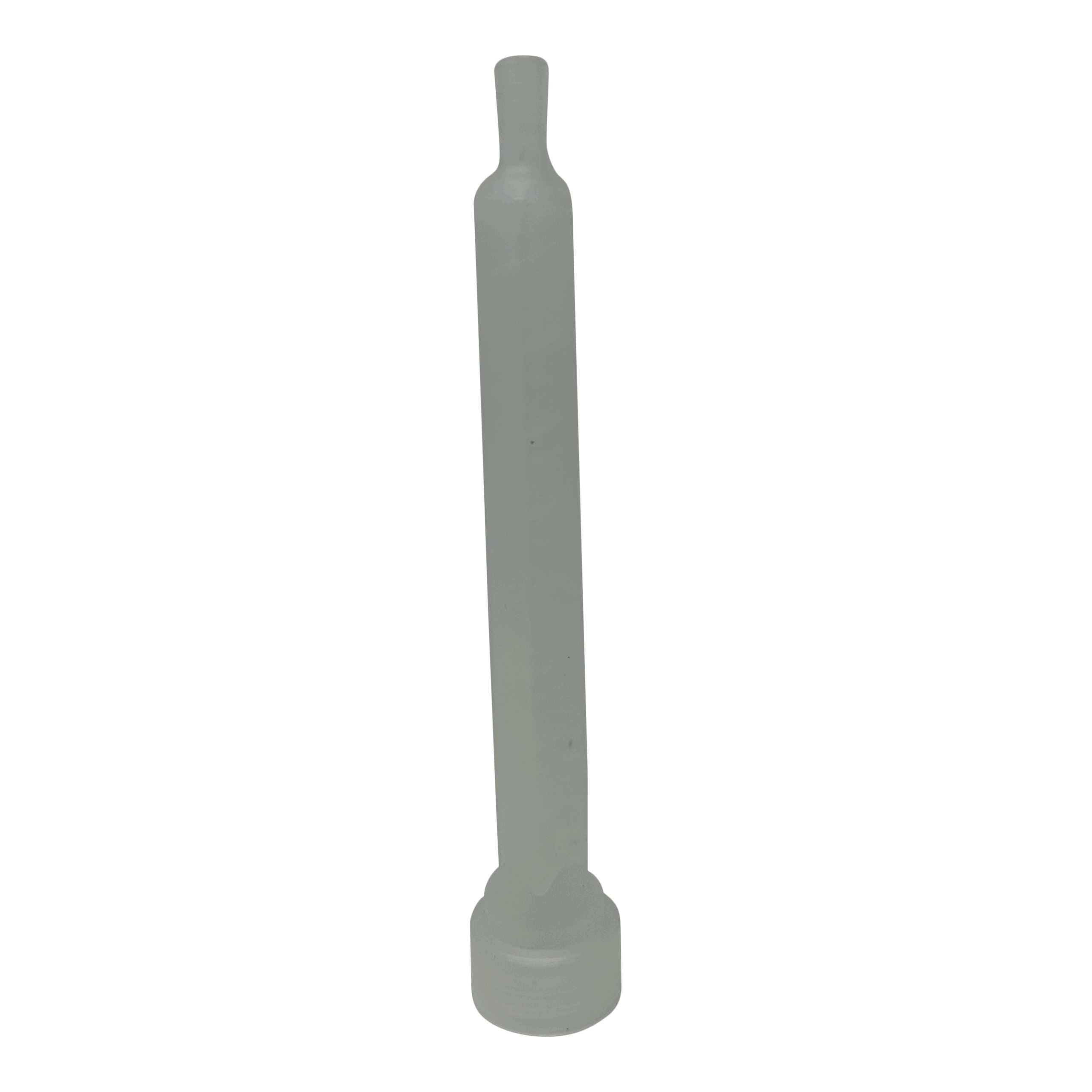

Ritter Q17 Square Static Mixer, Integral Nut Connection

Description

The Ritter Q17 static mixer is a 17-element square-profile disposable mixer with an integral nut connection for two-component cartridge work. Adhesive and sealant crews use the Ritter Q17 static mixer where a precise A-side and B-side blend has to happen at the nozzle, every shot, with no leftover stripe of unmixed material at the bead start.

Where the Ritter Q17 static mixer is used

Two-part epoxies, methacrylates, polyurethanes, and reactive acrylics in cartridge form rely on a quality mixer between the cartridge tip and the part. The 17-element count gives enough shear-and-divide passes to homogenize most general-purpose two-part formulas at a 1:1 or 2:1 mix ratio in the 50 ml to 200 ml cartridge range. The integral nut keeps the mixer locked to the cartridge under pressure without backing off when the gun is rocked or set down between shots.

Why the Ritter Q17 static mixer geometry matters

• Square element profile increases turbulence at lower element counts than spiral designs.
• 17 elements is the sweet spot for medium-viscosity acrylics and epoxies in cartridge format.
• Integral nut connection threads directly onto the cartridge bell without an adapter ring.
• Disposable plastic construction prevents cross-contamination between batches.
• 143 mm overall length keeps the working point close to the operator without a fly-out tip.

Technical Details

Ordering Help

Match this mixer to the cartridge format and adhesive viscosity you are running. For other static mixers, dispensing nozzles, and cartridge guns, see our dispensers, mixers, and nozzles category. For the manufacturer site, see Ritter. Call (800) 220-1966 or email [email protected] for cross-reference help against Sulzer, Medmix, or Nordson EFD mixers.
