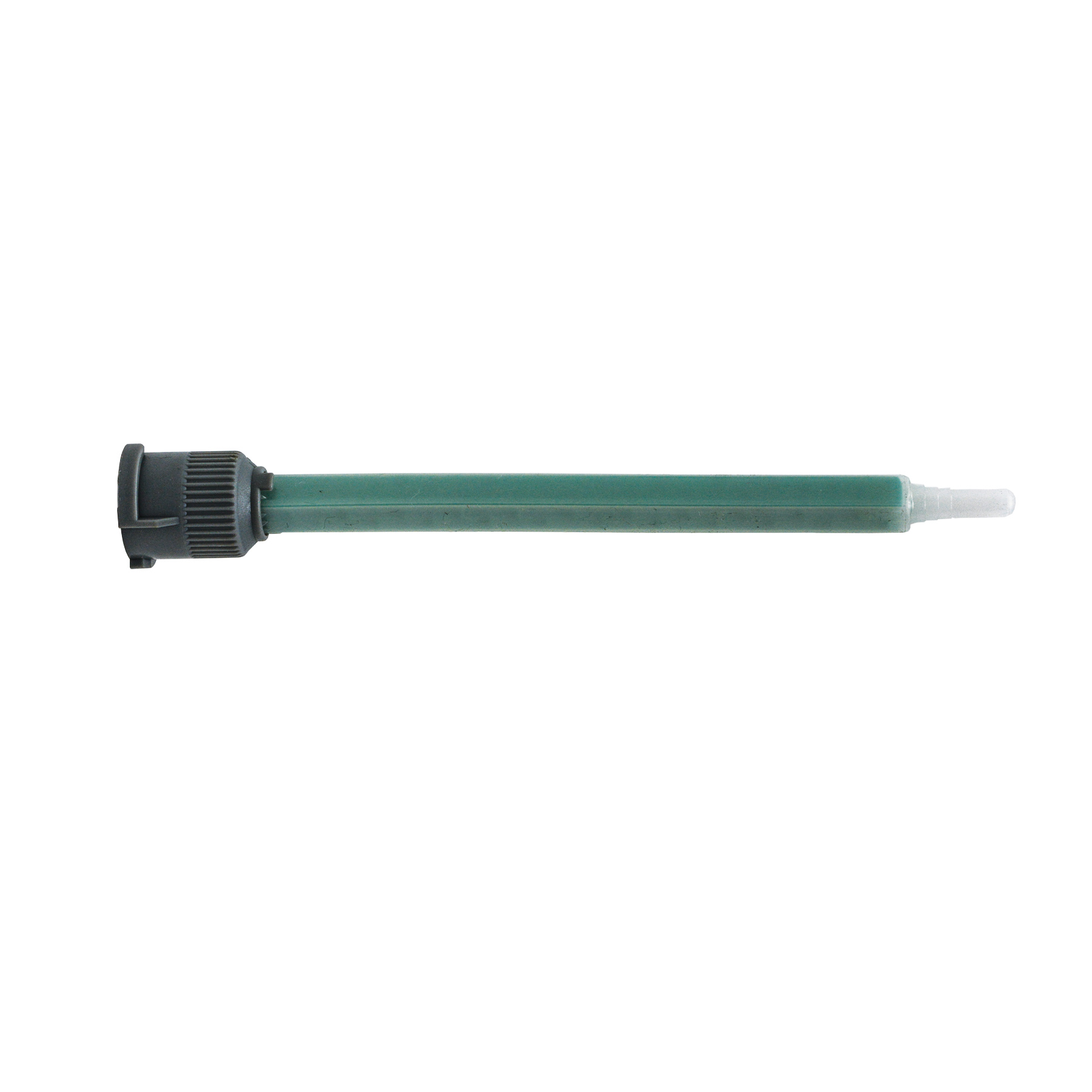

Sulzer MBQ 05-24L Quadro Static Mixer for 50 mL B-System Cartridges

Description

Sulzer MBQ 05-24L Quadro Static Mixer is an MBQ05 Mixer for 50 mL two-component cartridges that use the B-System twist-lock connection. The compact Quadro path helps blend resin and hardener while keeping the nozzle short enough for bench work, repairs, and close-in adhesive placement.

MBQ05 Mixer Benefits

• Quadro square element design for compact two-part adhesive mixing.
• 24 elements for controlled mixing in a small cartridge format.
• Twist-lock connection for compatible 50 mL B-System cartridges.
• Stepped outlet supports trimming for bead size or extension fit.
• Disposable nozzle format reduces cleanup after curing adhesive systems.

Use this nozzle only when the cartridge outlet, ratio, and product instructions call for the MBQ 05-24L style. Small cartridges are common in repair kits, countertop work, sign assembly, and low-volume production. The right mixer matters because incomplete mixing can leave soft spots, streaks, weak cure, or excess waste in the first bead.

Common Applications for MBQ05 Mixer

• Dispensing two-part adhesives from 50 mL cartridge kits.
• Countertop seam work, small repairs, fixture bonding, and prototype assembly.
• Field kits where compact cartridge packaging is easier to carry than bulk systems.
• Production stations that need a fresh mixer for each work period.

Compatible Cartridges and Materials

• 50 mL B-System cartridges with matching twist-lock outlet.
• 1:1, 2:1, and 3:2 packages when supported by the cartridge and adhesive system.
• Epoxy, polyurethane, silicone, acrylic, and MMA materials after qualification.

MBQ05 Mixer Technical Specifications

Packaging and Ordering

Choose this mixer for compatible 50 mL cartridge systems that specify MBQ 05-24L fit. For matching applicators, retainers, and other static mixer options, browse Chemical Concepts dispensers, mixers, and nozzles. For manufacturer background on MIXPAC dispensing systems, visit medmix.

Need Help?

Need help confirming 50 mL mixer fit or cartridge ratio? Call (800) 220-1966 or email [email protected].
