Description

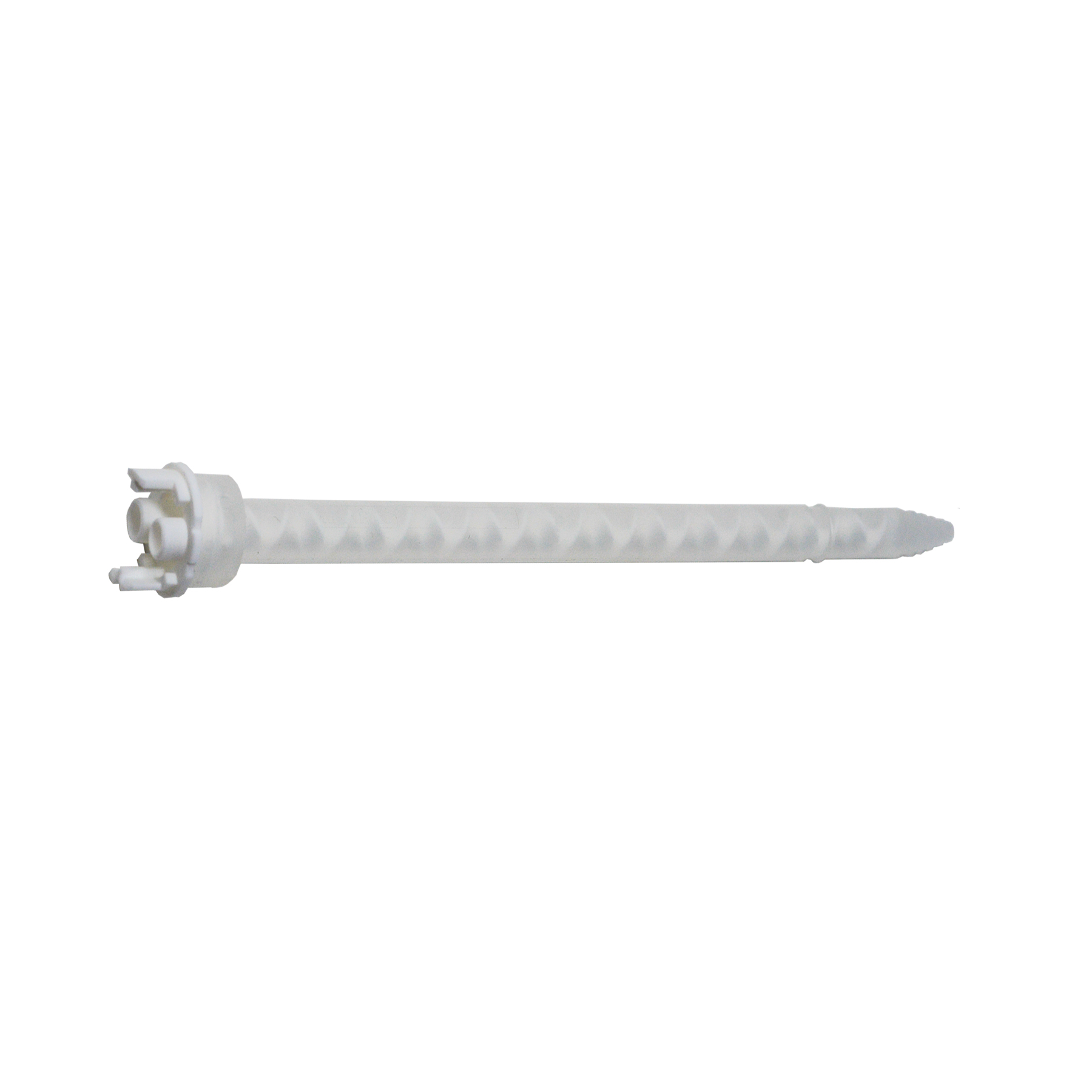

MFH 08-24T mixer is a medmix Mixpac helix mixer for F-System 200 mL and 400 mL cartridges in 1:1 and 2:1 ratios. The white 24-element nozzle is built for reliable blending of two-part epoxies, polyurethanes, silicones, acrylics, and methacrylates where a larger mixer body and medium retained volume make sense.
MFH 08-24T Mixer Benefits
- 24 mixing elements support homogeneous blend quality on medium-volume cartridges.
- F-System interface keeps the A and B sides separated until they enter the mixer.
- 8 mm element diameter supports useful flow on filled and standard two-part materials.
- Stepped outlet tip gives a controlled nozzle end for production or bench work.
- Disposable format keeps changeover simple when cartridges are swapped during a shift.
This mixer is a solid choice for assembly teams using 200 mL or 400 mL cartridges where throughput matters but a very large machine mixer is unnecessary. Distributor specifications list a 12 mm outside diameter, 23.4 cm housing length, 2.4 mm nozzle opening, and 9.30 mL retained volume for the MFH 08-24T geometry.
Common Applications for MFH 08-24T Mixer
- Dispensing two-part adhesives from 200 mL and 400 mL F-System cartridges.
- Structural bonding with epoxy, acrylic, methacrylate, or polyurethane materials.
- Potting and sealing jobs that need a fresh mixer at each cartridge change.
- Production assembly where consistent cartridge mixing matters.
- Bench or light production work using manual or pneumatic F-System guns.
Compatible Cartridges and Materials
- F-System 200 mL cartridges in 1:1 and 2:1 ratios.
- F-System 400 mL cartridges in 1:1 and 2:1 ratios.
- Epoxy, polyurethane, silicone, acrylic, and methacrylate chemistries.
- White MFH family applications where a helix mixer is specified instead of a quadro design.
MFH 08-24T Mixer Technical Specifications
| Property | Value |
|---|---|
| Mixer Technology | Helix spiral mixer |
| Connection | F-System 1:1 and 2:1 |
| Mixing Elements | 24 |
| Element Diameter | 8.0 mm |
| Outer Diameter | 12.0 mm |
| Housing Length | 23.4 cm |
| Nozzle Opening | 2.4 mm |
| Retained Volume | 9.30 mL |
Packaging and Ordering
Choose this mixer when your 200 mL or 400 mL cartridge process needs a standard F-System helix nozzle with 24 elements. For matching accessories, browse our dispensers, mixers, and nozzles. Product family information is available from medmix.
Need Help?
If you need help matching cartridge size, ratio, or nozzle style to your material, call (800) 220-1966 or email [email protected].
