Description

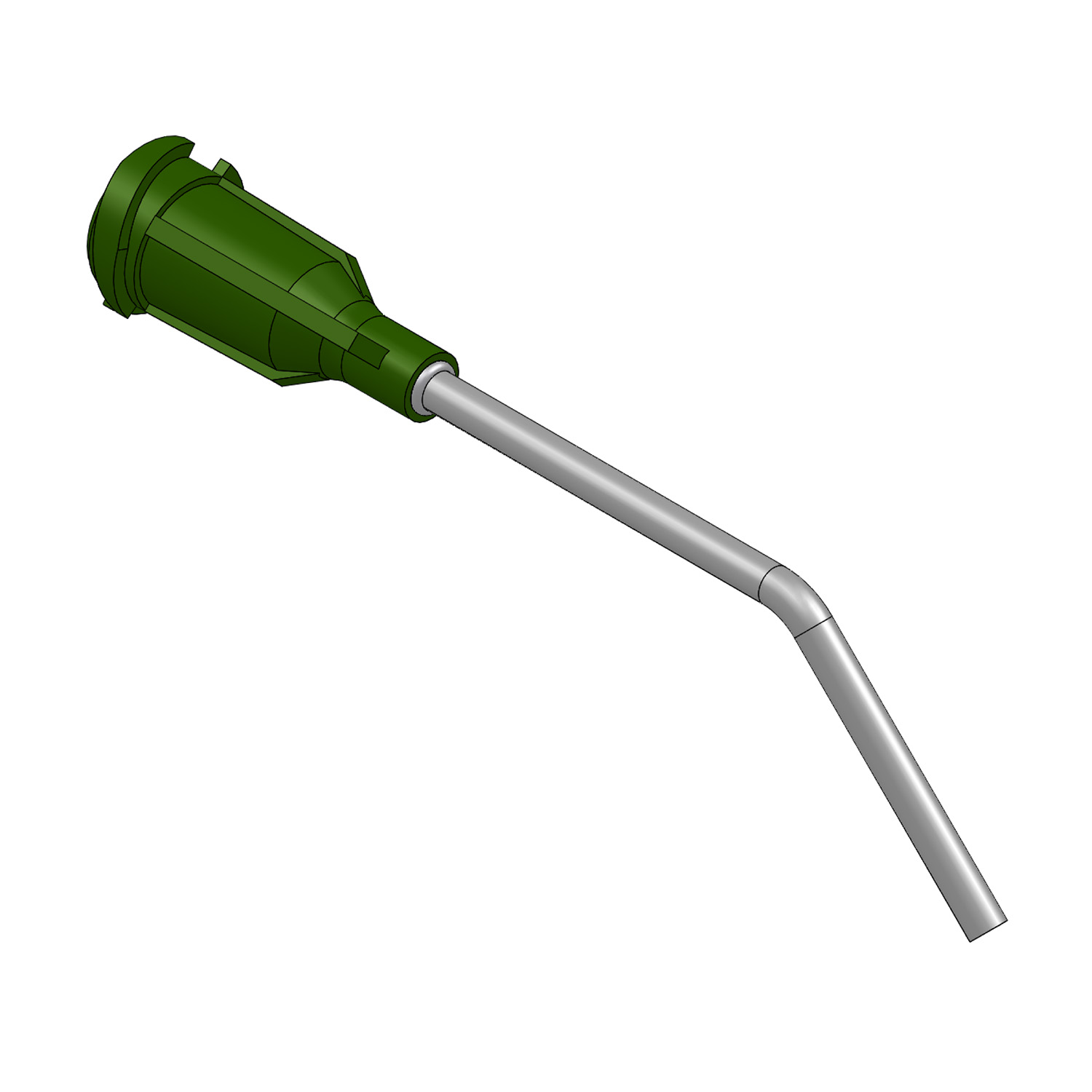

14 Gauge Bent Needle tips give operators both higher-flow output and long angled reach for difficult dispense locations. This Techcon TE bent tip uses a 14 gauge stainless steel cannula, 1-1/2 inch length, 45 degree bend, olive hub, and pack of 50 for repeat production use.
14 Gauge Bent Needle Reach Benefits
- 1-1/2 inch cannula reaches deeper recesses, channels, housings, and fixture openings.
- 45 degree bend supports side-entry placement without turning the part.
- 14 gauge outlet supports heavier compatible fluids and larger bead targets.
- Olive hub supports quick gauge identification on the bench.
- Luer-lock connection fits compatible syringe barrels and dispensing adapters.
Techcon lists this SKU as a 14 gauge, 1-1/2 inch, 45 degree bent needle in a pack of 50. The TE bent line uses precision-bent stainless steel cannulas with double-helix polypropylene hubs, burr-free electro-polished cannulas, silicone-free and chloride-free construction, and a 100 psi maximum operating pressure.
14 Gauge Bent Needle Process Fit
Choose this longer bent tip when a short 90 degree tip cannot reach the target or when the part must stay in a nest during dispense. It is a practical choice for adhesive beads, sealant placement, potting touch-up, grease placement, and other compatible fluids that need controlled angled delivery. That combination helps teams keep the barrel and operator hand clear of the fixture while still placing material at the required point.
Because the cannula is longer, use steady hand support and avoid side-loading the needle. If the material requires too much pressure, review fluid temperature, shot size, and gauge choice before continuing.
Ordering Long Bent TE Tips
Use this pack with compatible barrels, pistons, caps, and Chemical Concepts dispensers, mixers, and nozzles. For manufacturer background on Techcon dispensing products, visit Techcon.
Need help matching length, angle, and gauge to a fixture? Call (800) 220-1966 or email [email protected].
