Description

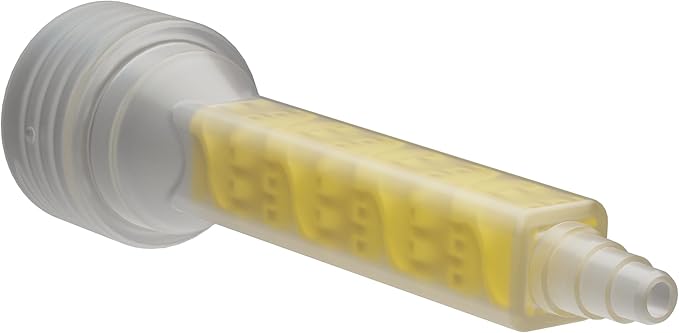

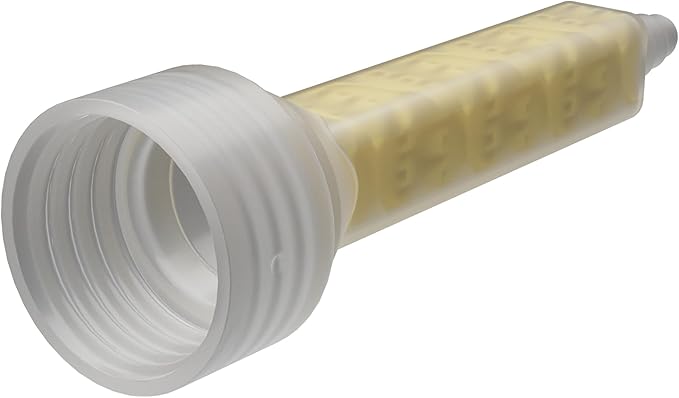

The Xemex X2-G8-7S Low-Waste Static Mixer is designed for dispensing two-part adhesives using G-system threaded bell cartridges. The threaded connection eliminates the need for a separate retaining nut while providing a secure, leak-free attachment to the cartridge.
Using Xemex’s patented internal mixing geometry, seven mixing elements provide mixing performance comparable to much longer traditional mixers. The compact mixer design helps reduce retained adhesive volume while maintaining consistent mixing performance.
The 8.7 mm internal diameter supports higher material throughput for industrial dispensing applications. A stepped outlet tip allows trimming the nozzle to adjust bead size for controlled adhesive placement.
The mixer is compatible with common industrial adhesive chemistries including epoxies, methacrylates, urethanes, and silicones.
See How Xemex Low-Waste Mixers Work
Understanding how Xemex mixers reduce adhesive waste is easier when you see the internal mixing technology in action.
Xemex mixers use optimized internal geometry to achieve complete mixing with significantly fewer elements, reducing purge waste and minimizing adhesive retained inside the mixer.
Key Product Details
| Property | Value |
|---|---|
| Product | Xemex X2-G8-7S Static Mixer |
| Connection Style | Threaded Bell (G-System) |
| Outlet Tip | Stepped |
| Insert Material | Polyester |
| Housing Material | Polypropylene |
| Insert Assembly | 7 elements |
| Inner Diameter | 8.7 mm (0.34″) |
| Total Length | 89.5 mm (3.52″) |
| Retained Volume | 3.9 mL |
| Adhesives Served | Epoxies, Methacrylates, Urethanes, Silicones |
Performance and Use
• Patented Xemex mixing geometry delivers reliable two-part mixing using fewer elements
• Threaded bell connection eliminates the need for a separate retaining nut
• Reduced mixer length helps minimize adhesive retained inside the nozzle
• 8.7 mm internal diameter supports higher adhesive flow rates
• Stepped outlet tip allows trimming for adjustable bead size
• Suitable for thicker adhesives and sealants used in industrial assembly
Installation and Handling Notes
• Designed for G-system threaded bell cartridge connections
• Threaded connection provides a secure, leak-free fit during dispensing
• Stepped outlet tip can be trimmed to adjust bead size
• Compatible with manual, pneumatic, and automated dispensing systems
• Replace mixer when adhesive begins curing inside the nozzle
Common Applications
• Structural adhesive bonding
• Potting and encapsulation
• Industrial manufacturing assembly
• Panel bonding and composite assembly
• General two-part adhesive dispensing
Customer Feedback
“The new Xemex mixer worked fantastic with Dow 3-4207. Greatly reduces wasted potting material and also mixed the 2 parts very well. This is exactly what we needed.”
Direct Customer Quote
“My customer had sporadic curing issues running EP965LVLX with a .187 x 48 helical mixer they were using. They dispensed test patterns with Xemex and got a complete cure. They told me these mixing sticks work great.”
Sales Representative (Eastern US)
“My customer tested the new Xemex mixer with an expensive thermally conductive paste. It was easy to see the cost savings from wasting less material in the mixer compared to the helical mixer they were previously using. They were so impressed they ordered 50 on the spot.”
Sales Representative (Southern US)
