UL 94 V-0 Silicone Potting for Outdoor LED Displays & Scoreboards

Electronics Encapsulation

UL 94 V-0 Silicone Potting Compounds for LED Displays

CHT QSil two-part silicone potting compounds are engineered for high-reliability encapsulation in outdoor LED displays, digital signage, LED matrix boards, and DOT matrix display modules.

These UL 94 V-0 rated RTV systems provide low-stress protection for sensitive electronics and maintain performance under constant thermal cycling, vibration, heat, and UV exposure. Designed for production environments, QSil silicones support hand mixing, cartridge dispensing, meter mix systems, and vacuum-assisted potting.

Ask Our Technical Team

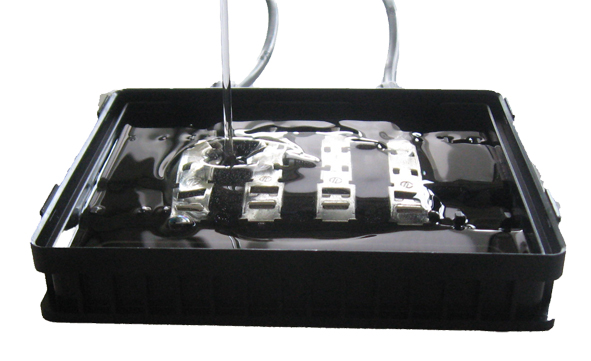

Silicone potting compound being poured over LED electronics

Why Silicone Potting for LED Matrix & Digital Displays?

Silicone potting compounds drastically outperform epoxy and urethane in long-term outdoor service. For manufacturers of LED matrix boards, DOT matrix displays, and stadium video walls, QSil silicones provide:

  • Thermal stability and UV resistance for outdoor digital displays and scoreboards.
  • Low modulus, low stress encapsulation that protects SMD components and solder joints during extreme thermal cycling.
  • High dielectric strength suitable for dense LED power boards and driver modules.
  • Moisture and environmental sealing that guarantees robust IP-rated electronic enclosures.
  • Production Versatility: Fully compatible with metering and mixing systems, automatic glue dispensing machines, and vacuum degassing equipment.

Choose Based On Your Requirement

Thermally Conductive

For LED matrix boards and video wall modules where heat dissipation is critical.

Pick: QSil 553
(0.68 W/m·K thermal)

Fast Cure

For high-throughput potting lines and automated LED production.

Pick: QSil 550F
(2.5 to 4.5 minute gel)

Low Viscosity

For tight PCB layouts, tiny SMD gaps, and through-holes on LED boards.

Pick: QSil 550LV A/C
(1,300 cps mixed)

Black Contrast

For digital displays and DOT matrix signs that need enhanced optical contrast.

Pick: QSil 556
(Opaque Black)

CHT Silicones For Potting Applications

All QSil formulations listed below are two-part RTV silicone potting compounds with a UL 94 V-0 flame rating, suitable for harsh environment electronics. Use this quick comparison to align thermal conductivity, gel time, and viscosity with your manufacturing process.

CHT Product Benefits Catalyzed Color Mixed Viscosity Durometer Gel Time Thermal Conductivity
QSil 550F Fast curing for automated dispensing. Gray 4,000 cps 55 Shore A 2.5 to 4.5 min 0.37 W/m·K
QSil 550LV A/C Low viscosity room temperature cure. Gray 1,300 cps 62 Shore A 110 min 0.37 W/m·K
QSil 553 Thermally conductive for heat dissipation. Black 6,000 cps 45 Shore A 140 min 0.68 W/m·K
QSil 556 Black silicone potting for optical contrast. Black 1,750 cps 50 Shore A 72 min 0.37 W/m·K

*Note: QSil Primer #3 contains a UV tracer for ease of visual inspection under UV lighting prior to potting. All listed products utilize Addition Cure.

Applications & Compliance

Outdoor LED video walls & stadium displays
DOT matrix & LED transportation signs
Scoreboard electronics & control modules
Power supply & driver board encapsulation
Harsh environment PCB protection
IP-rated potted electronic enclosures

All featured silicones provide UL 94 V-0 flame retardant performance and high dielectric strength. They support design work where engineers compare potting versus conformal coating, evaluate potting material selection for harsh environments, and plan IP-rating testing on potted enclosures.

When combined with correct design and manufacturing practices, QSil potting materials help reduce field failures and improve the total life-cycle performance of digital displays.

Need Help Specifying The Right Compound?

Share your LED matrix or digital display design, target gel time, viscosity range, and thermal requirements. Our technical team will recommend a silicone potting compound and primer that perfectly matches your process.
