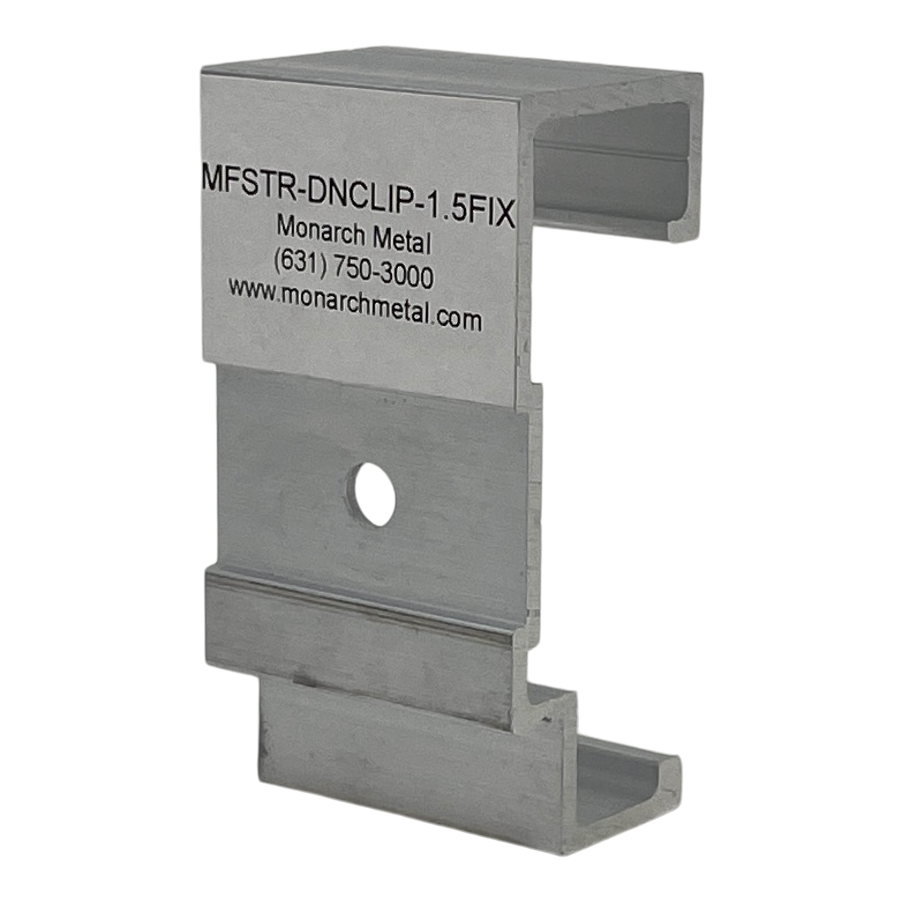

Monarch DNCLIP Fixed Clip for Deform-Nut Honeycomb Panels – 1.508 in

The Monarch DNCLIP fixed clip is the 1.508 in clip in the DNCLIP and DNRAIL clip and rail system, used to hang honeycomb and sandwich panels on a DNRAIL. It has 0.25 in mounting holes and no adjusting bolt, so it suits runs where panel height does not need to be set after the panel is hung. Pair it with Deform-Nut anchors in the panel and order the rail separately.

Key Product Details

Using the Fixed Clip

• Use it where the rail layout already sets panel height. Choose the adjustable clip where height has to be set after the panel is hung.
• Clip count follows your anchor layout, set by your project engineer.
• The DNRAIL, Deform-Nut anchors, installation tools, and structural adhesive are ordered separately.

Related Products

• Monarch DNCLIP and DNRAIL clip and rail system
• Deform-Nut TC/DM Honeycomb Anchor, 1/4-20

Frequently Asked Questions

What is the difference between the DNCLIP fixed clip and the adjustable clip?

The fixed clip has no adjusting bolt, and the adjustable clip is tapped for a 1/4-20 UNC adjusting bolt that sets panel height after the panel is hung. Both are 1.508 in (38.3 mm) long with 0.25 in (6.4 mm) mounting holes.

How many fixed clips do I need per panel?

Clip count follows your anchor layout, panel size, and panel weight, which your project engineer sets. Call us with your panel dimensions and we will help total the order.

What do I order with the fixed clip?

You need a DNRAIL, Deform-Nut anchors, installation tools, and structural adhesive for the anchors. The rail and full system are on the DNCLIP and DNRAIL system page, and the anchors are on the TC/DM anchor page.

Does the fixed clip come with anchors or hardware?

No. The fixed clip is sold as a single clip. Deform-Nut anchors and installation tools are sold separately, so call us to confirm the mounting hardware for your assembly.
