Description
Monarch DNCLIP honeycomb panel clips and the DNRAIL aluminum rail make up a concealed clip-and-rail mounting system for honeycomb and sandwich panels on ventilated rainscreens. The panel bracket sits flush with the back of the panel, and the adjustable clip lets you set panel height after the panel is hung. The system works with Deform-Nut TC/DM and TC/SC1 anchors, which give each panel its threaded attachment points. Made in the USA by Monarch Metal Fabrication.
Mounting starts with the anchors: a blind hole, a rivet-style Deform-Nut, structural adhesive, and a threaded adjusting bush. The full sequence is covered step by step below.
Key Product Details
| Property | Value |
|---|---|
| Manufacturer | Monarch Metal Fabrication |
| Product Type | Clip and rail panel mounting system |
| Monarch Part Numbers | MFSTR-DNRAIL (rail), MFSTR-DNCLIP (fixed and adjustable clips) |
| Rail Length | 143.75 in (3,651 mm), sold as the 12 ft DN rail |
| Rail Weight | 0.760 lb/ft (1.13 kg/m) |
| Rail Design Thickness | 0.11 in (2.8 mm) |
| Rail Finish | Mill finish |
| Clip Length | 1.508 in (38.3 mm) |
| Clip Mounting Holes | 0.25 in (6.4 mm) diameter, both clips |
| Adjustable Clip Thread | 1/4-20 UNC, 0.625 in (15.9 mm) bolt length per Monarch drawing |
| Compatible Anchors | Deform-Nut TC/DM and TC/SC1 honeycomb anchors |
| Panel Cores | Honeycomb and foam, per Monarch |
| Country of Manufacture | USA |
| Sold Separately | Deform-Nut anchors, installation tools, structural adhesive |
Performance in Production
- Monarch designs the panel bracket to sit flush with the back of the panel, which keeps the attachment concealed behind the panel.
- The adjustable clip carries a 1/4-20 UNC adjusting bolt, so panel height can be set after the panel is hung.
- The fixed clip has no adjusting bolt, which keeps the part simple on runs that do not need height adjustment.
- A 143.75 in (3,651 mm) rail covers long horizontal runs with fewer rail joints.
- At 0.760 lb/ft, a full-length rail weighs about 9.1 lb, which helps when estimating handling and the load on the wall before panels go on.
- The Deform-Nut anchor installs from one side of the panel through a blind hole, so you do not need access to the back skin.
Common Applications
- Ventilated rainscreen facades using veneered honeycomb panels
- Concealed panel mounting with no face fasteners
- Honeycomb panels that need height adjustment after hanging
- Sandwich panels with honeycomb or foam cores
- Panel runs hung from a continuous horizontal rail
- Facade projects pairing the clip and rail with Deform-Nut TC/DM or TC/SC1 anchors
Available Sizes
| Component | SKU | Description |
|---|---|---|
| Fixed Clip | MRC-MFSTR-DNCLIP-FIX | 1.508 in clip, 0.25 in diameter mounting holes |
| Adjustable Clip | MRC-MFSTR-DNCLIP-ADJ | 1.508 in clip, 0.25 in mounting hole, 1/4-20 UNC adjusting bolt |
| 12 ft DN Rail | MRC-MFSTR-DNRAIL-144 | 143.75 in rail, mill finish, no holes |
Confirm the rail fasteners, anchor spacing, and panel build with your project engineer before release.
Related Products
- Deform-Nut TC/DM Honeycomb Anchor, 1/4-20
- Deform-Nut TC/SC1 honeycomb panel anchors
- Manual Rivet Tool for Deform-Nut TC/SC1 (TC/DM)
- 13mm pre-drill cutter bit for Deform-Nut TC/SC1
- UltraLok 300 MMA structural adhesive
- Honeycomb panels and adhesives

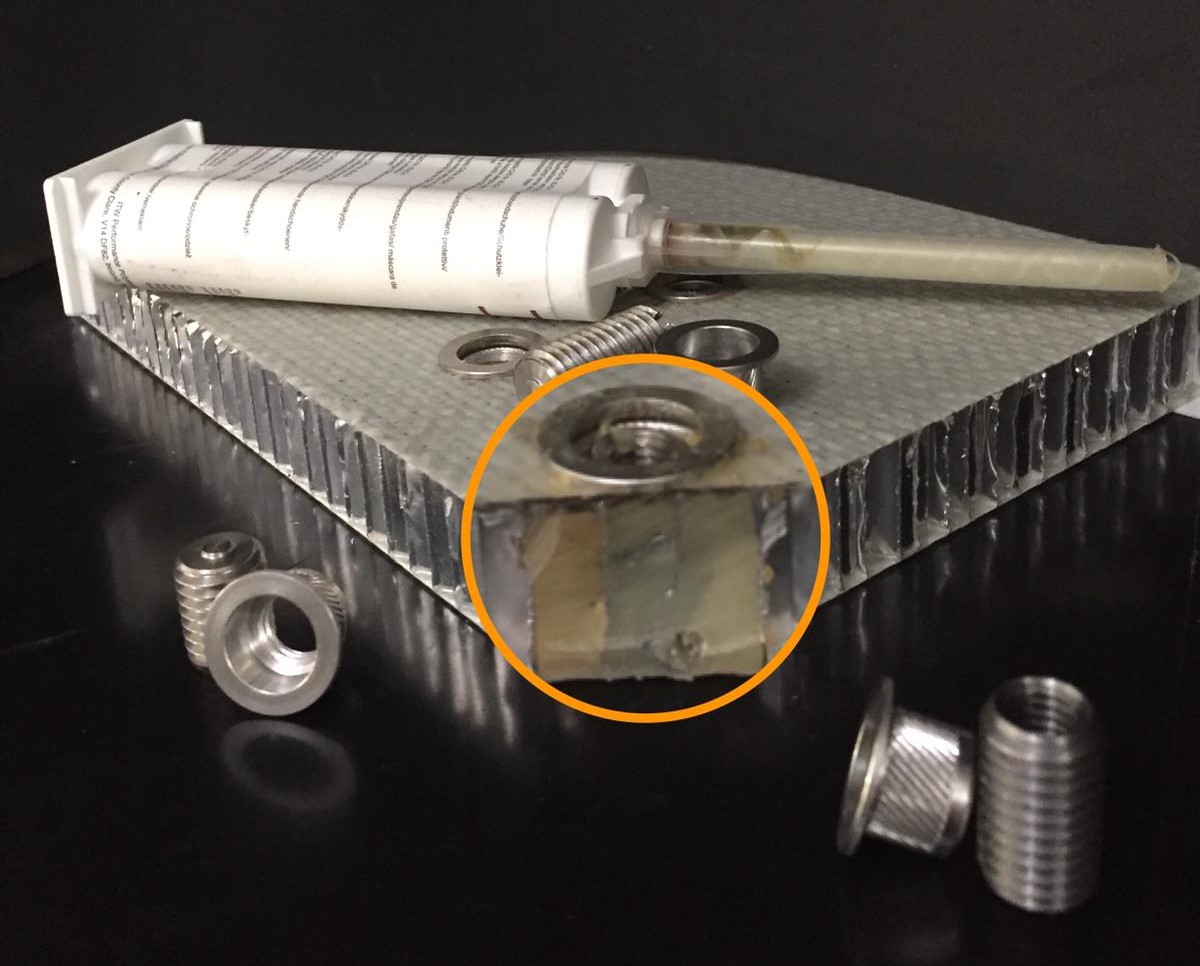

How Do You Install a Deform-Nut Anchor in a Honeycomb Panel?
You drill one blind hole, rivet the Deform-Nut to the top skin, pot it with structural adhesive, and screw a threaded bush down to the back skin. Monarch lists the sequence below for honeycomb and sandwich panels, and the TC/DM and TC/SC1 pages describe the same process. Check the anchor page for sizing against your panel thickness.
- Drill a blind hole from one side of the panel, sized for the tubular rivet and threaded adjusting bush. For TC/SC1 anchors, use the 13mm pre-drill cutter bit.
- Insert the tubular rivet into the hole.
- Insert the spindle of the deformation tool, such as our manual rivet tool, into the rivet.
- Run the tool to deform the rivet so it clamps onto the panel skin.
- Unscrew the tool from the deformed rivet.
- Inject structural adhesive into the rivet, such as UltraLok 300.
- Insert the threaded adjusting bush into the rivet.
- Screw the bush in with a tool until it reaches the skin on the far side of the panel.
- Remove the tool. The threaded insert is ready for the bolt that attaches the mounting hardware.
Monarch states the adjustable Specialinsert system works with honeycomb and foam cores. The anchors give each panel its threaded attachment points for the clip hardware.
Frequently Asked Questions
What are DNCLIP and DNRAIL used for?
DNCLIP clips and DNRAIL rail mount honeycomb and sandwich panels on ventilated rainscreens using Deform-Nut anchors. The anchors sit in the panel, the clips attach at those anchors, and the rail carries the clips. DNCLIP, DN clip, and MFSTR-DNCLIP all describe the same clip family.
What is the difference between the fixed and adjustable DNCLIP?
The adjustable clip has a 1/4-20 UNC adjusting bolt for setting panel height after the panel is hung, and the fixed clip does not. Both clips are 1.508 in (38.3 mm) long and have 0.25 in (6.4 mm) mounting holes.
How long is the DNRAIL?
The DN rail is 143.75 in (3,651 mm), sold as a 12 ft rail, and weighs 0.760 lb/ft.
Do the clips and rail come with Deform-Nut anchors?
No. Deform-Nut anchors, installation tools, and structural adhesive are sold separately. Start with the TC/DM anchor or the TC/SC1 anchors.
What kinds of panels does the DNCLIP system work with?
Monarch lists honeycomb and sandwich panels, including honeycomb and foam cores, for ventilated rainscreen use. If your core, skin, or thickness falls outside that, call us before ordering and we will check it with Monarch.

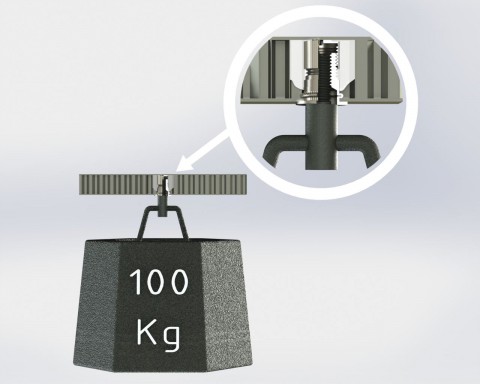

How much weight can a DNCLIP and Deform-Nut anchor hold?
Capacity depends on the panel build, the adhesive, the anchor spacing, and what the rail is fastened to, so we do not publish a single load number. Call us and we will request test data from Monarch, and have your project engineer confirm the design before release.
Is the DNCLIP system made in the USA?
Yes. Monarch Metal Fabrication makes the DNCLIP and DNRAIL in the USA.
What else do I need to order with the clip and rail?
You need Deform-Nut anchors, a rivet-nut installation tool such as the manual rivet tool, and a structural adhesive such as UltraLok 300 to pot the anchors. For TC/SC1 anchors, a 13mm pre-drill cutter bit is available. Call us to match the anchor to your panel thickness.
Questions on fit for your honeycomb panel installation? Call (800) 220-1966 or email [email protected].
