Description

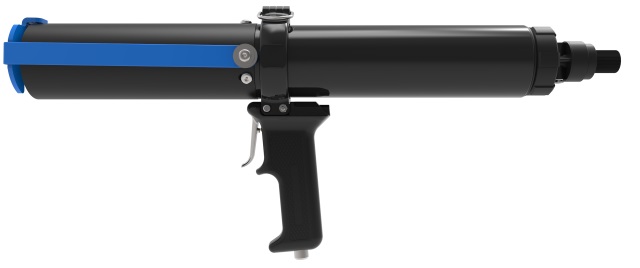

COX AirFlow 1 CCA 380A Pneumatic Dispenser is an air-powered two-component applicator configured here for 380 mL 1:1 coaxial cartridges. The platform is built for medium to high viscosity adhesives and sealants that need controlled pneumatic output.
AirFlow 1 CCA Benefits
- High power pneumatic drive delivers 1124 lbf maximum thrust for thick cartridge materials.
- Coaxial cartridge format keeps the two components in one round package for compatible systems.
- Adjustable regulator lets the operator set output for bead width, material flow, and work pace.
- Quick exhaust valve helps limit bead run-on after trigger release.
- U-opening frame supports cartridge insertion and removal during production changeover.
Use this dispenser when a 380 mL coaxial cartridge is specified and the work calls for repeatable air-driven beads. It is a good fit for assembly benches, repair stations, and bonding cells that run two-part cartridge systems with medium or high viscosity. Confirm ratio, outlet, mixer, and cartridge geometry before dispensing so the tool and material package align.
Common Applications for AirFlow 1 CCA
- Dispensing 380 mL 1:1 coaxial two-part adhesives and sealants.
- Controlled beads for structural bonding, sealing, potting, and repair work.
- Production cells that need pneumatic output for thicker cartridge materials.
- Maintenance benches using coaxial cartridges rather than side-by-side packages.
- Prototype and field jobs where consistent air pressure helps bead control.
Compatible Cartridges and Materials
- 380 mL coaxial cartridges configured for 1:1 dispensing.
- Medium and high viscosity adhesives or sealants packed for the CCA 380A frame.
- Static mixers selected by coaxial outlet, ratio, material viscosity, and bead size.
Technical Specifications
| Property | Value |
|---|---|
| SKU | COX-DP2C380-01-525-111 |
| Tool Type | Pneumatic two-component dispenser |
| Series | AirFlow 1 CCA 380A |
| Configured Ratio | 1:1 |
| Cartridge Capacity | 380 mL |
| Maximum Thrust | 1124 lbf |
| Maximum Pneumatic Pressure | 6.8 bar / 100 psi |
| Air Consumption | 40 liters per minute |
| Frame Length | 178 mm / 7.0 in |
Packaging and Ordering
Order this dispenser when your 380 mL coaxial cartridge package needs high power pneumatic output and a controlled bead. Browse related dispensers, mixers, and nozzles, and review current product-family information from COX Dispensers.
Need Help?
Need help checking coaxial cartridge fit, ratio, or mixer selection for your adhesive? Call (800) 220-1966 or email [email protected].
