Description

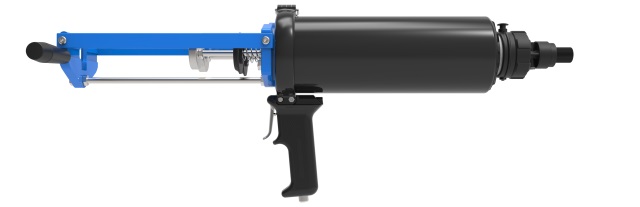

COX AirFlow 1 PPA 300B Pneumatic Dispenser is an air-powered two-component applicator configured for 375 mL 4:1 cartridges. The platform is intended for low to medium viscosity adhesives and sealants where pneumatic control is preferred over a manual trigger.
AirFlow 1 PPA Benefits
- Low power pneumatic output gives steady bead control for compatible materials.
- 494 lbf maximum thrust fits lighter two-part dispensing work without oversizing the tool.
- Adjustable regulator helps set the bead speed for material viscosity and joint width.
- Quick exhaust valve helps reduce run-on after the trigger is released.
- Lightweight frame is practical for bench work, service kits, and repeated cartridge changeovers.
Use this dispenser when the selected adhesive package is a 375 mL 4:1 cartridge. It suits assembly stations, maintenance benches, and field work that need repeatable air-driven output but do not require the higher thrust of a heavy pneumatic platform. Match the plunger set, cartridge footprint, outlet, and static mixer before opening material for the job.
Common Applications for AirFlow 1 PPA
- Dispensing 375 mL 4:1 two-part adhesives and sealants.
- Controlled beads for panel bonding, repair, potting, and sealing work.
- Production stations using lower or medium viscosity cartridge systems.
- Maintenance jobs where air-assisted dispensing reduces operator strain.
- Adhesive trials before moving into higher-volume equipment.
Compatible Cartridges and Materials
- 375 mL side-by-side cartridges configured for 4:1 ratio dispensing.
- Low and medium viscosity adhesives or sealants packaged for the PPA 300B frame.
- Static mixers selected for outlet style, ratio, material viscosity, and bead length.
Technical Specifications
| Property | Value |
|---|---|
| SKU | COX-DP2C600-04-220-111 |
| Tool Type | Pneumatic two-component dispenser |
| Series | AirFlow 1 PPA 300B |
| Configured Ratio | 4:1 |
| Cartridge Capacity | 375 mL |
| Maximum Thrust | 494 lbf |
| Maximum Pneumatic Pressure | 6.8 bar / 100 psi |
| Air Consumption | 40 liters per minute |
| Frame Length | 244 mm / 8.8 in |
Packaging and Ordering
Order this dispenser when your 4:1 cartridge size and shop air setup match the PPA 300B platform. Browse related dispensers, mixers, and nozzles, and review current product-family information from COX Dispensers.
Need Help?
Need help matching a cartridge, mixer, or air setting to your two-part material? Call (800) 220-1966 or email [email protected].
