Description

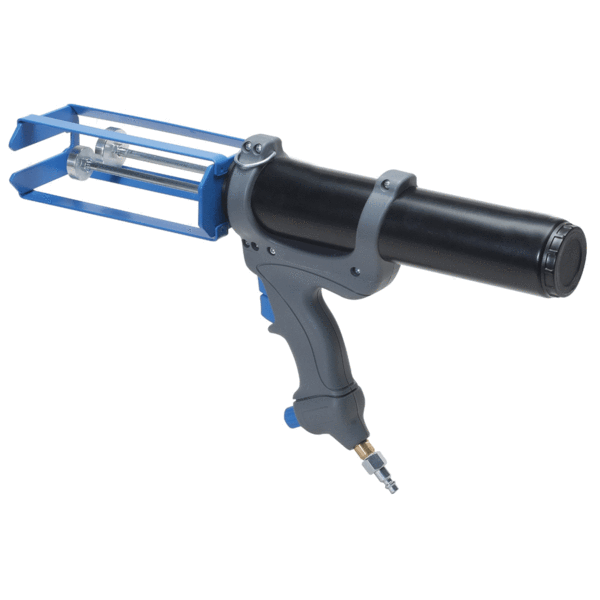

COX AirFlow 3 VBA 400A Pneumatic Multi-Ratio Dispenser is an AirFlow 3 VBA tool for 200 mL and 400 mL two-component cartridges. It gives shops pneumatic dispensing control for multiple adhesive ratios, making it useful when one bench runs different epoxy, acrylic, urethane, or silicone packages through the week.
AirFlow 3 VBA Benefits
- Multi-ratio kit format supports common 200 mL and 400 mL cartridge setups.
- Pneumatic drive reduces hand effort during repeated beads and longer production runs.
- Regulated air pressure helps control material flow and bead size.
- Useful for low to medium viscosity two-part adhesives and sealants in compatible cartridges.
- One tool platform can support several ratio changes when the correct plungers are installed.
This dispenser is a practical choice for assembly teams that switch between cartridge ratios and need consistent material placement. Choose the correct plunger set, cartridge holder, and mixer before loading the adhesive. Purge both components before installing a mixer, then check the first bead for color and texture before placing material on production parts.
Common Applications for AirFlow 3 VBA
- Dispensing 200 mL and 400 mL two-part adhesive cartridges.
- Countertop, sign, panel, and composite assembly work.
- Bench production where pneumatic control improves repeat placement.
- Repair and maintenance jobs using cartridge-packed structural adhesives.
- Process trials that compare several cartridge ratios on the same tool family.
Compatible Cartridge Setup
- 200 mL and 400 mL cartridge systems when matched to the kit configuration.
- 1:1, 2:1, 4:1, and 10:1 ratio setups with the correct plungers.
- Static mixers selected for the cartridge outlet and material viscosity.
- Compressed-air supply suitable for controlled pneumatic dispensing.
Technical Specifications
| Property | Value |
|---|---|
| SKU | COX-DP2C400 |
| Product type | Pneumatic two-component dispenser |
| Cartridge capacity | 200 mL and 400 mL systems by kit setup |
| Ratio options | 1:1, 2:1, 4:1, and 10:1 kit configurations |
| Maximum thrust | 494 lbf family listing |
| Air pressure listing | 6.8 bar family listing |
| Use style | Handheld pneumatic dispensing |
Packaging and Ordering
Order this dispenser when your work uses 200 mL or 400 mL two-part cartridges and needs ratio flexibility. Browse related dispensers, mixers, and nozzles for static mixers, plungers, and accessories. Manufacturer family information is available from COX Dispensers.
Need Help?
Need help matching this pneumatic dispenser to cartridge ratio, mixer style, or material viscosity? Call (800) 220-1966 or email [email protected].
