Description

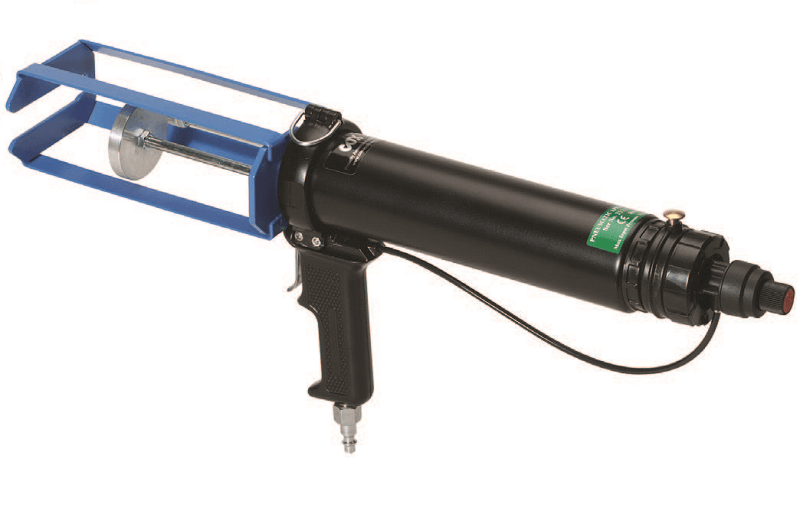

COX AirFlow 3 VBA 400B MR Pneumatic Dispenser Kit is an air-powered two-component applicator for 200 mL and 400 mL cartridge systems. The AirFlow 3 VBA platform supports multi-ratio adhesive and sealant dispensing when a shop needs pneumatic control instead of a manual trigger pull.
AirFlow 3 VBA Benefits
- Multi-ratio kit supports 1:1, 2:1, 4:1, and 10:1 cartridge setups in the 200 mL and 400 mL range.
- Pneumatic drive reduces hand fatigue during repeated beads and longer production runs.
- Adjustable air regulator helps operators tune output to material viscosity and bead size.
- Quick exhaust valve helps reduce run-on at the end of a bead.
- Side-loading frame helps seat cartridges accurately before dispensing starts.
Use this dispenser for two-part adhesives and sealants where the cartridge format changes across jobs. The multi-ratio layout is useful for maintenance teams, fabrication shops, and production cells that run more than one adhesive family through compatible 400 mL and 200 mL packages. Confirm the cartridge style, plunger set, and mixer before loading material.
Common Applications for AirFlow 3 VBA
- Bonding panels, brackets, fixtures, and composite parts with two-part adhesives.
- Dispensing 200 mL and 400 mL cartridges in multiple mix ratios.
- Production benches that need steady bead control with low and medium viscosity materials.
- Chemical anchoring, repair, and assembly work using compatible cartridge systems.
- Shop setups where an air line is available and repeat dispense control matters.
Compatible Cartridges and Materials
- Compatible C-system, F-system, and Blueline cartridge formats listed for the tool family.
- Two-part epoxies, acrylics, urethanes, and sealants packaged for the frame and ratio kit.
- Static mixers selected by cartridge outlet, ratio, and material requirements.
Technical Specifications
| Property | Value |
|---|---|
| SKU | COX-DP2C400-MR-220-311 |
| Tool Type | Pneumatic two-component dispenser |
| Cartridge Capacity | 200 mL and 400 mL systems |
| Supported Ratios | 1:1, 2:1, 4:1, and 10:1 |
| Maximum Force | 494 lbf |
| Maximum Output Pressure | 100 psi |
| Application Range | Low and medium viscosity materials |
Packaging and Ordering
Order this kit when one pneumatic dispenser needs to cover several cartridge ratios. Browse related dispensers, mixers, and nozzles, and review current product-family information from COX Dispensers.
Need Help?
Need help matching a COX frame, plunger kit, mixer, or cartridge ratio to your adhesive? Call (800) 220-1966 or email [email protected].
