Description

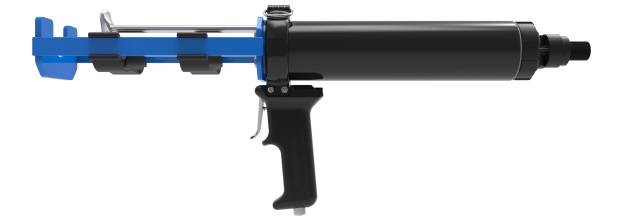

COX AirFlow 1 VBA 200B Pneumatic Dispenser is a two-component air-powered applicator for 200 mL 1:1 cartridge systems. The compact pneumatic frame gives assembly teams controlled beads from low and medium viscosity adhesives, sealants, epoxies, and potting materials.
AirFlow 1 VBA Benefits
- Low power pneumatic drive helps keep output steady without relying on hand force.
- 494 lbf maximum thrust fits smaller cartridge packages and low to medium viscosity materials.
- Adjustable air control lets the operator set bead speed for the material and joint size.
- Quick exhaust valve helps reduce flow after trigger release.
- Compact 200 mL frame is useful at benches, fixtures, and service carts where space matters.
Use this tool when a 1:1 cartridge needs repeatable pneumatic output but a large dispenser would be awkward. It suits bonding, sealing, small potting jobs, repairs, and prototype work. Confirm the cartridge back style, outlet, mixer, and ratio before dispensing so the package and tool match.
Common Applications for AirFlow 1 VBA
- Dispensing 200 mL 1:1 two-part adhesives and sealants.
- Bench assembly, small panel bonding, and repair work.
- Prototype fixtures that need steady beads without moving to a large frame.
- Potting and sealing smaller parts with cartridge-packaged materials.
- Production cells that already use regulated shop air.
Compatible Cartridges and Materials
- 200 mL side-by-side cartridges configured for 1:1 ratio dispensing.
- Low and medium viscosity two-part adhesive or sealant systems.
- Static mixers selected by cartridge outlet, element count, ratio, and material flow.
AirFlow 1 VBA Technical Specifications
| Property | Value |
|---|---|
| SKU | COX-DP2C200-01-220-112 |
| Tool Type | Pneumatic two-component dispenser |
| Series | VBA 200B |
| Configured Ratio | 1:1 |
| Cartridge Capacity | 200 mL |
| Maximum Thrust | 494 lbf |
| Maximum Pneumatic Pressure | 6.8 bar / 100 psi |
Packaging and Ordering
Order this dispenser when your 200 mL 1:1 cartridge system needs air-powered bead control in a compact frame. Browse related dispensers, mixers, and nozzles, and review current product-family information from COX Dispensers.
Need Help?
Need help checking cartridge style, mixer fit, or air pressure for your material? Call (800) 220-1966 or email [email protected].
