Raw Material Fabrication Blanks CarbonBar™ Versatile Flat StockAerospace-grade carbon fiber structural support blanks you cut and drill like wood.CarbonBar™ Versatile Flat Stock brings absolute manufacturing and design independence to the stone fabrication and millwork shop. This advanced carbon fiber blank operates like high-tech engineered lumber, completely eliminating the scheduling bottlenecks, shipping delays, and high overhead costs of outsourcing plates to local metal fabrication shops or keeping expensive welding rigs in-house. Give your shop infinite layout freedom. Because this linear flat stock can be cut, trimmed, shaped, and drilled anywhere using standard contractor carbide-tipped tools, your team can fabricate custom cantilever supports, double-sided island stiffeners, wall brackets, and sub-top reinforcement strips on demand right at the workbench. |
Watch CarbonBar™ structural flex and load testing in action. |
Unrivaled Material Properties
|
Complete Jobsite Agility
|
Thickness Profiles & Workbench LaminationCarbonBar Versatile Flat Stock is stocked in 0.4″ Standard Rigidity and 0.2″ Ultra-Thin profiles to accommodate varying project clearances. Beyond standalone support paths, these blanks function as a modular building system. By applying performance structural adhesives like CarbonBond, structural epoxies, or polyurethanes, your shop can **laminate multiple flat stock layers together** right at your workbench. Bonding layers together allows your crew to build custom, double-reinforced structural thicknesses and specialty bracket assemblies tailored to extreme commercial specifications.
|

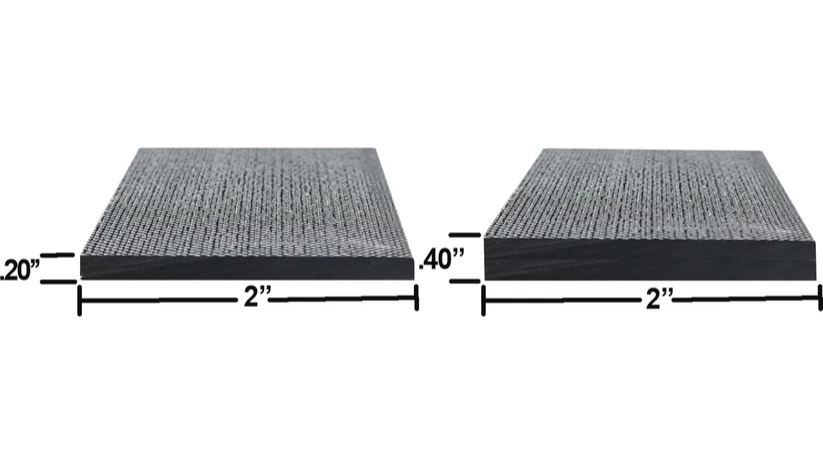

Visual profile cross section of 0.2″ thin stock vs 0.4″ standard rigidity flat stock blanks. |
Cabinet Framing Quick-Mount IntegrationWhen anchoring raw flat stock straight across standard cabinet box frameworks, your crew can bypass slow hand-chiseling entirely. Simply notch your vertical cabinet dividers or outer box edges and slide the linear flat stock straight through. By matching the bar with our specialized quick-mount clip, you can lock structural countertop support flush into millwork frames. Intersect your layout lines seamlessly by combining your stock with the CarbonConnect Direct mounting clip for accelerated, heavy-duty field assembly. |
CarbonConnect Direct mounting clip integration. |
System Technical Specifications Matrix
| Product Architectural Property | Industrial Standard Value Profile |
|---|---|
| Material Baseline | High-strength aerospace-grade carbon fiber composite polymer matrix profile |
| Stock Thicknesses | 0.2″ Ultra-Thin (Single-Layer Layout) & 0.4″ Standard Rigidity (Dual-Layer Core) |
| Stock Width Profile | 2.00″ Wide standard profile selection |
| Available Delivery Lengths | 48″ Linear Bar Stock & 94″ Linear Bar Stock (Custom longer lengths available by special order) |
| Load Performance Bound | Supports safe uniform distributed limits up to 1000 lbs per matched pair of bars |
| Jobsite Sizing Compatibility | Cuts, sands, and drills easily with standard wood contractor chop saws, table saws, and carbide bits |
| Lamination Adhesives | CarbonBond™ structural polymer, advanced shop epoxies, acrylic adhesives, and polyurethane links |
| Approved Downstream Substrates | Granite, Marble, Engineered Quartz, Sintered Surfaces, Acrylic Solid Surfaces, Plywood, MDF, Steel & Aluminum frames |
| Origin & Certifications | Proudly Extruded in the USA; fully RoHS environmental standard compliant |
Bidding for a High-Volume Commercial Millwork Sub-Contract?
Do you require bundled batch wholesale pricing discounts, verified structural testing report sheets, or custom project dimensions pre-cut straight from production lines? Contact our multi-family project coordinators for fast engineering submittal packages.
