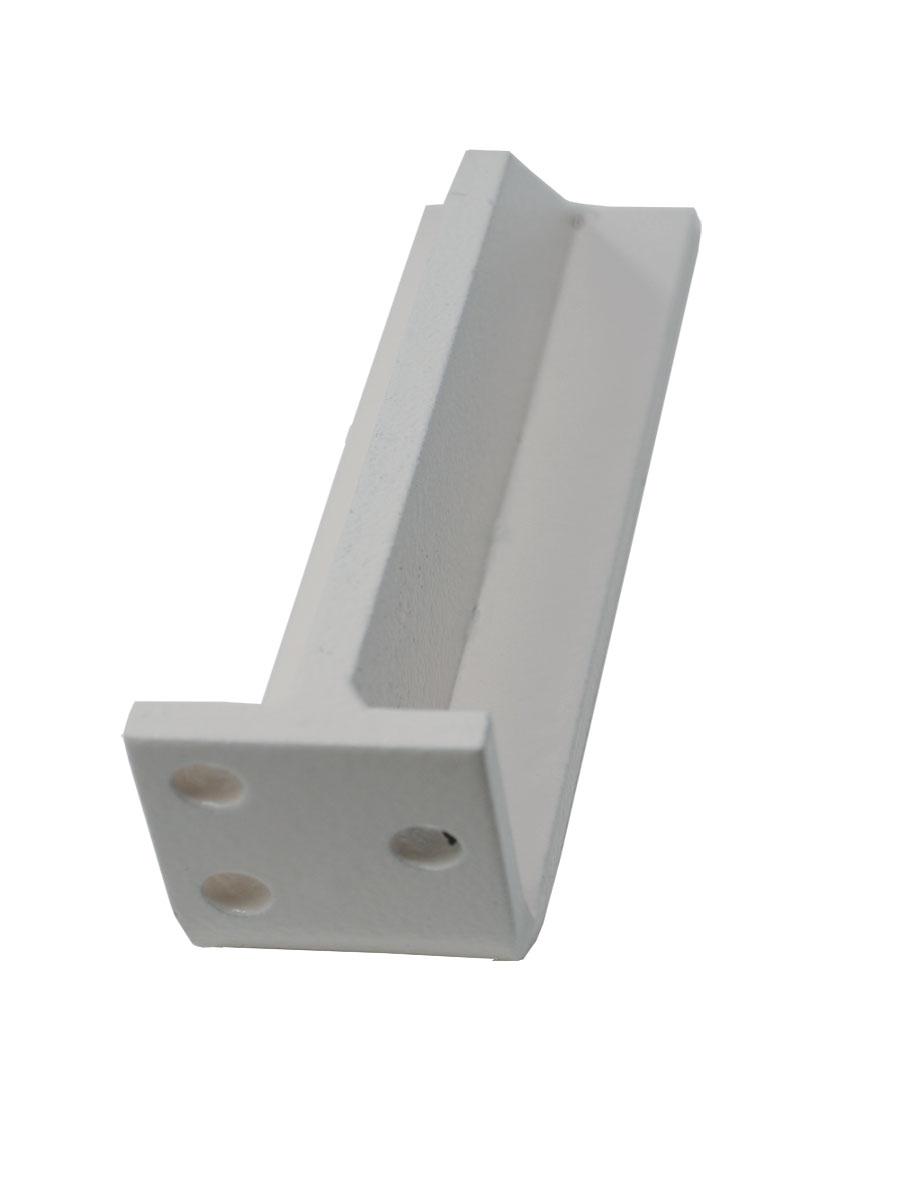

CounterBalance Floating Shelf Bracket, 9 Inch, White

Description

The CounterBalance floating shelf bracket mounts directly to wall studs and disappears inside a boxed shelf, giving a heavy solid surface shelf the look of floating without any visible hardware underneath. This 9 inch version is rated to 1500 lbs per pair and ships two brackets per box, in white.

How the Floating Shelf Bracket Hides Inside a Shelf

Because the bracket sits entirely within a boxed shelf cavity rather than under an open slab, it works best on built shelving rather than a single solid surface overhang. The bracket measures 1.75 inches tall by 1.5 inches wide by 0.25 inches thick, sized to fit inside a standard shelf box without forcing the shelf thicker than the design calls for.

Load Rating by Size

The floating shelf bracket family carries different load ratings by length: 2000 lbs per pair at 6 inches, 1500 lbs per pair at 9 inches, and 1000 lbs per pair at 12 inches. Load drops as bracket length increases because the same cantilever principle that applies to any support bracket applies here, so longer brackets need wider stud spacing or additional brackets per shelf run.

Installation Requirements

Brackets must land on a stud for full rated strength. Mounting hardware is sized to fail before the bracket does, so a proper stud connection is what actually limits the load a shelf can carry in practice. Fabricators building the shelf box around the bracket should confirm blocking placement before closing up the shelf, since the bracket cannot be repositioned once the box is built.

Where the Floating Shelf Bracket Fits in the Line

For open, visible installations rather than boxed shelving, the same countertop bracket line includes surface mounted and concealed styles rated for countertops and vanities. For general structural hardware reference, see the Industrial Fasteners Institute.

Ordering and Support

This CounterBalance model is stocked in 6, 9, and 12 inch lengths, two per box. Call (800) 220-1966 or email [email protected] to confirm quantity on hand for your shelf run.
