Keep-Nut 1/2 Inch Split Stop Collar for Drill Bits

Description

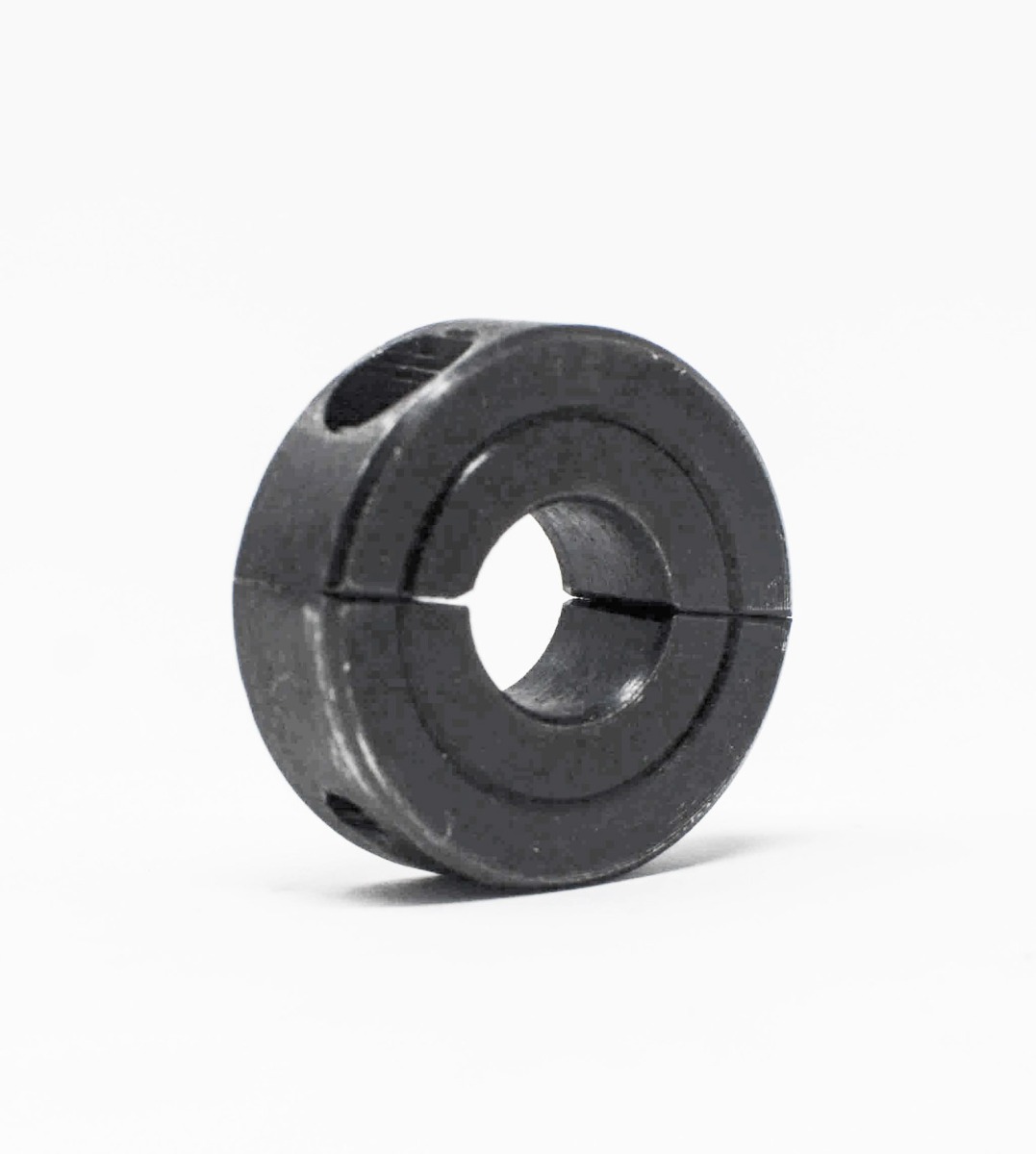

The Keep-Nut stop collar is a 1/2 inch split ring that clamps onto a Keep-Nut drill bit and sets a hard mechanical stop at the depth you choose. Once locked with the Allen wrench, the collar gives repeatable hole depth across hundreds of anchor installs without measuring or marking each one.

How the Keep-Nut stop collar sets depth

The split ring slides over the bit shank to the depth that matches your anchor and substrate. Tighten the set screw with an Allen wrench and the collar holds position under normal drilling load. When the collar reaches the work surface, the bit stops cutting. You get the same depth on every hole, which keeps anchors seated flush and reduces broken Keep-Nut inserts from over-drilling.

Where the Keep-Nut stop collar fits

The 1/2 inch bore size pairs with the Keep-Nut bits in that shank diameter, including the 11.4 mm and 11.8 mm drill bits used for porcelain, sintered stone, solid surface, and high-pressure laminate anchor jobs. It works for both hand drilling and machine drilling, and pairs with the KDM115 drilling machine when faster cycle time matters more than portability.

Field notes for setting the Keep-Nut stop collar

Test the depth on a scrap piece before going into the actual stone or panel. Substrate hardness changes how the bit pulls, and a half-millimeter difference between scrap and finished material is easy to absorb in the first hole. Re-check torque on the set screw every few dozen holes. Vibration can loosen it.

Browse the rest of the line in our Keep-Nut threaded inserts category. For background on anchor depth tolerances and pull-out testing standards, the Industrial Fasteners Institute publishes useful reference material at indfast.org on fastener performance and installation practices.

Need to spec the right collar and bit pair for a specific anchor and substrate? Call (800) 220-1966 or email [email protected].
