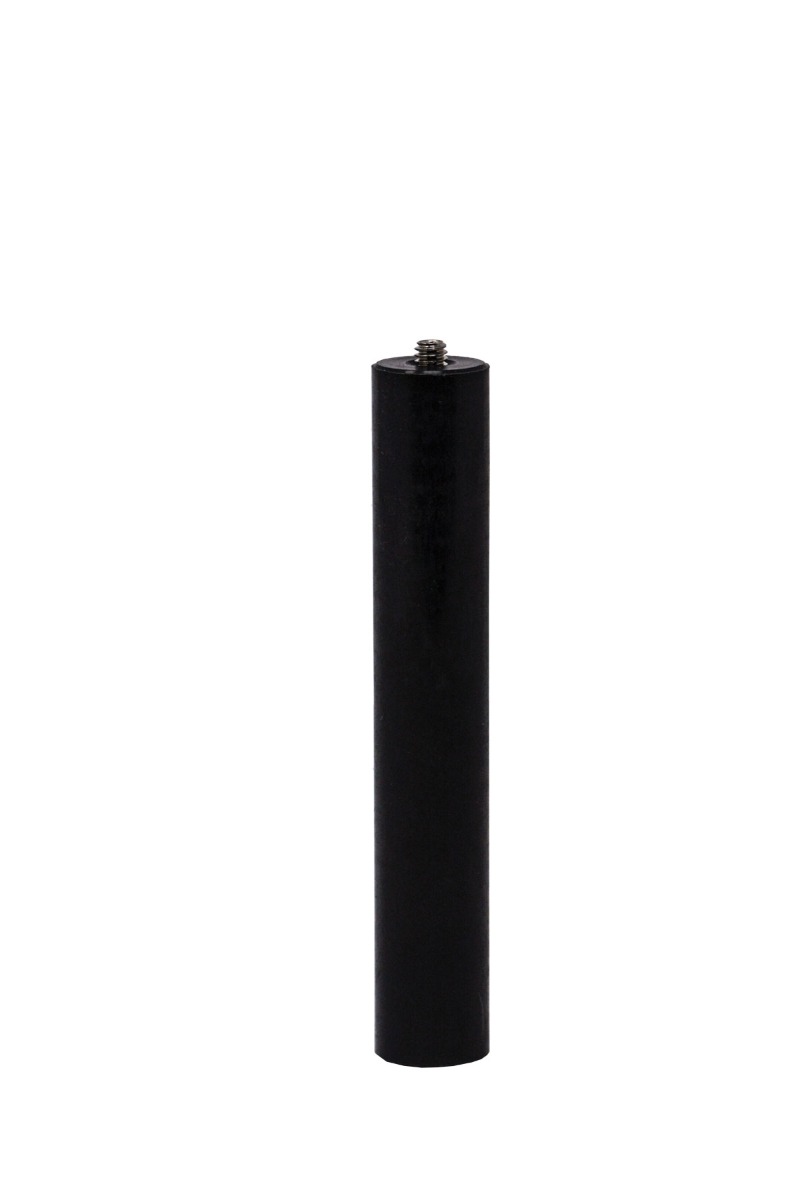

Keep-Nut M4 Setting Tool, Countertop Insertion Tool

Description

The Keep-Nut M4 setting tool drives KEEP-NUT press-in, self-anchoring inserts into a pre-drilled hole created by a CNC or manual bit. Threading the insert onto the tool spreads the force of a mallet or hammer strike evenly across the insert body instead of concentrating it on the stone or substrate face, so the insert seats squarely without chipping or cracking the surrounding material.

Where the Keep-Nut M4 Setting Tool Is Used

Fabricators reach for this tool wherever M4 KEEP-NUT inserts go into stone, solid surface, engineered quartz, or composite panels: countertop undermount sink brackets, sign and display mounting points, cabinetry hardware, marine panel assembly, and any job that needs a hidden, load-bearing thread in a brittle or layered substrate. Because the tool keeps the strike force in line with the insert axis, it matters most on thin sections or holes near an edge, where an off-axis hammer blow can crack the panel before the insert ever seats.

Installing with the Keep-Nut M4 Setting Tool

Thread the KEEP-NUT M4 insert onto the setting tool by hand until it stops. Position the assembly in the pre-drilled hole, hold the tool square to the work surface, and drive it with a mallet in controlled strikes until the insert reaches the hole floor. Follow immediately with the Go/No-Go gauge to bottom out the insert and confirm full pull strength before releasing the part to the next station. Skipping the gauge check is the most common reason a Keep-Nut installation underperforms its rated pullout, since a partially seated insert can look flush while still sitting above its final depth.

Keep the tool and insert threads clean between uses. Dust and stone debris packed into the setting tool’s threads make the insert harder to spin on square, which increases the odds of a cross-threaded or angled start. A quick brush or blow-off between installations keeps the tool performing consistently across a production run.

• Thread size: M4
• Function: insertion and setting tool for KEEP-NUT press-in inserts
• Pairs with: Go/No-Go gauge for final seating confirmation
• Typical substrates: stone, solid surface, engineered quartz, composite panel
• Brand: Specialinsert
• SKU: CCH-KNSET-M4

Order the M4 setting tool alongside the matching KEEP-NUT inserts and Go/No-Go gauge so the full installation kit arrives together and thread sizes are never mismatched on the shop floor. Browse related insertion tools and bits for other thread sizes and gauge options. For manufacturer background on the Keep-Nut insert system, visit Specialinsert.
