Description
|
Slab & Panel Reinforcement Tile Ace™ PR Panel AdhesiveTile Ace™ PR is a 1-component, moisture-curing Kaneka MS Polymer® adhesive specifically engineered for laminating reinforcement boards to large format porcelain and stone tiles. By reinforcing fragile, thin slabs with backer boards and Tile Ace PR, fabricators significantly improve material integrity during transport and installation. Designed to replace slow, messy two-part epoxies and traditional thinsets, Tile Ace PR streamlines shop production without sacrificing bond strength. |
 |
Engineered for High-Volume Fabrication
Tile Ace PR is built for the demands of modern fabrication shops. It eliminates pot-life limitations and delivers exceptional material economy for large-scale lamination projects.
The Production Advantage:
- Massive Coverage: Apply a thin, uniform layer with a 1/16″ square-notch trowel to achieve a highly efficient 350 to 400 sq. ft. of coverage per 5-gallon pail.
- Fast Handling Time: Once pressure is applied to ensure 100% contact, slabs can be carefully handled in just 30 minutes.
- Same-Day Processing: In most shop conditions, laminated tiles can be safely cut, snapped, and processed after just 4 hours.
For complete wall systems, use Tile Ace PR to reinforce the panel in the shop, then pair it with Tile Ace UHT for ultra-high tack, permanent mounting on the job site.
Unmatched Substrate Versatility
Tile Ace PR provides superior adhesion between modern large-format tiles and the rigid reinforcement backers required to stiffen them.
Primary Applications

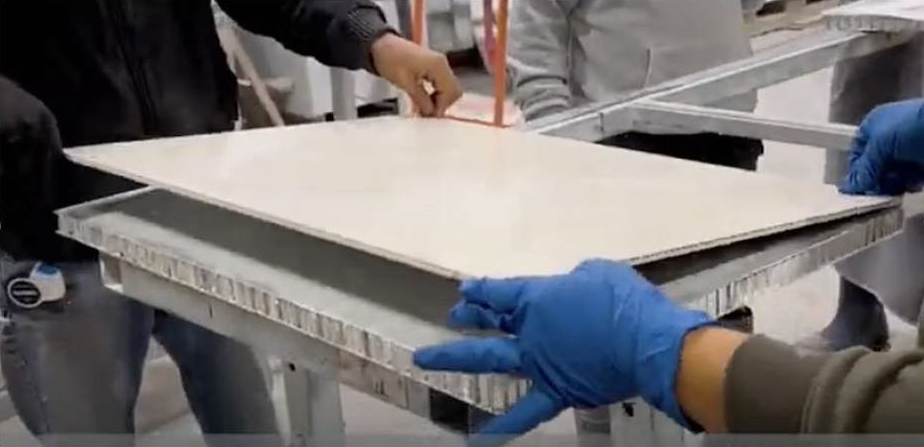

- Lamination of tile to foam core backer boards.
- Lamination to aluminum honeycomb panels.
- Reinforcing sintered stone and porcelain.
- Commercial interior wall panels and facades.
Proven Bond Strength On:
- Ceramic and Porcelain Tile.
- Gypsum, Mortar, and Wood.
- PET and Polystyrene foam.
- Anodized Aluminum and Stainless Steel.
- Plastics (PVC, Polycarbonate, ABS) and Glass.
Technical Specifications
| Property | Value |
|---|---|
| Adhesive Type | KANEKA MS POLYMER® |
| Color | White |
| Coverage | 350 – 400 sq. ft. per 5-Gallon Pail (1/16″ square-notch trowel) |
| Specific Gravity | 1.05 g/ml |
| Skin Over Time | 30 minutes (@ 73°F) |
| Open Time | 20 minutes (@ 73°F) |
| Tensile Strength at Break (ASTM D412) | 1.23 MPa |
| Hardness (Shore A) (ASTM C661) | 51 |
| Application Temperature | 41°F to 95°F (5°C to 35°C) |
| Service Temperature | -40°F to 194°F (-40°C to 90°C) |
| Packaging | 5-Gallon Pail |
