Description

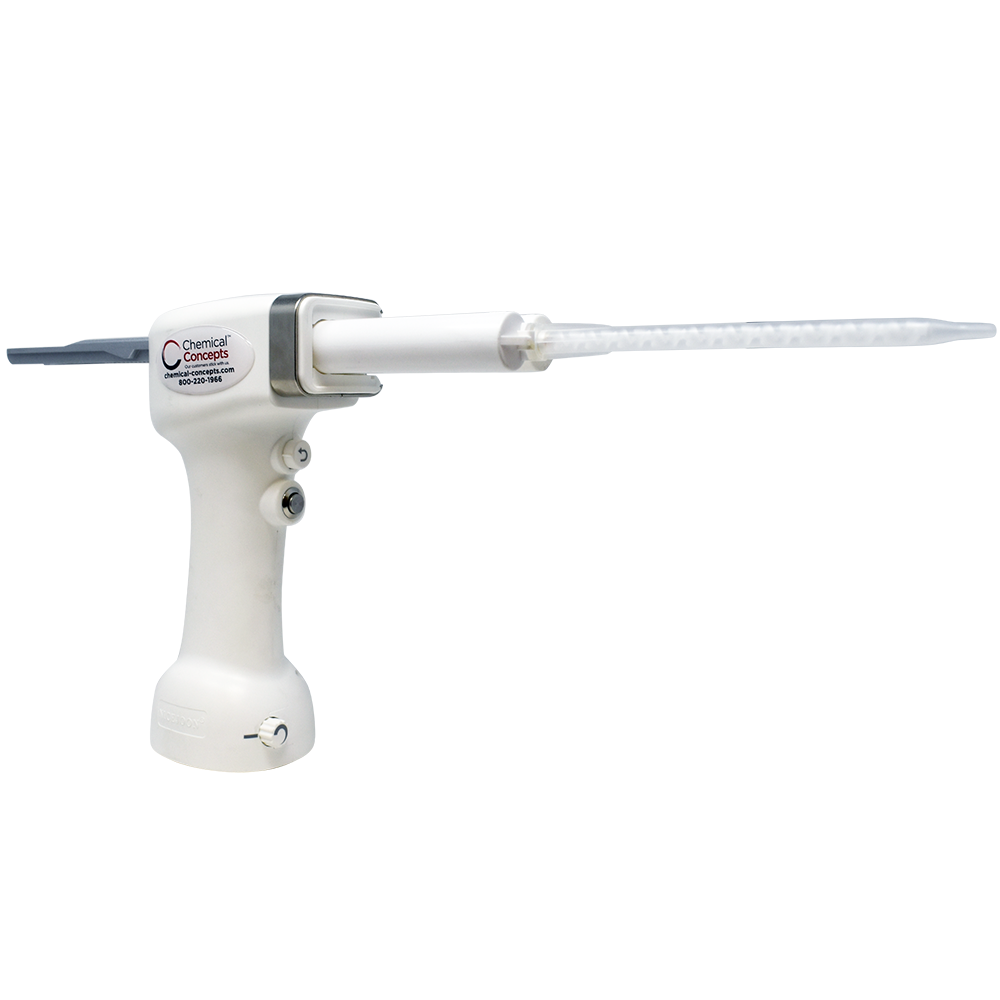

The Chem-Set Pak-50 electric dispense gun is a battery-powered dispenser for 50 mL A-System and B-System square back cartridges at a 1:1 ratio. A speed control knob, hold-to-run switch, and rack release give the operator control over the bead without squeezing a manual gun. It charges through a USB-C port and ships with a charger and a 1:1 plunger.
Key Product Details
| Property | Value |
|---|---|
| Brand | Chem-Set |
| SKU | CCH50G-1-1-B |
| Type | Battery-powered electric dispense gun |
| Drive | Electric, rack push |
| Cartridge Capacity | 50 mL (1.7 oz) |
| Cartridge Ratio | 1:1 |
| Cartridge Compatibility | MIXPAC A-System and B-System 50 mL, square back |
| Battery | Built-in, rechargeable, 7.4 V, 2 Ah |
| Charging | USB-C port |
| No-Load Speed | 0.20 in/sec (5.2 mm/sec) |
| Speed Control | Variable, knob |
| Rack Release | Unlock button |
| Drip Control | Rack retracts 0.2 to 0.4 in (5 to 10 mm) after the switch is released |
| Charge Indicator | LED: green full, blue 3/4, yellow 1/2, red 1/4 low |
| Included | Gun, charger, 1:1 plunger |
| Country of Manufacture | China |
Performance in Production
- The speed control knob sets how fast the rack moves forward, so the operator can slow down for a fine bead or run faster to fill a joint. No-load speed is 0.20 in/sec (5.2 mm/sec).
- The switch runs the gun only while it is held down. Release it and the rack stops, then backs up 0.2 to 0.4 in (5 to 10 mm), which helps stop the bead from running on.
- The unlock button frees the rack so it can move back by hand, which speeds up cartridge changes.
- The built-in 7.4 V, 2 Ah battery charges through the USB-C port, so there is no air line to run and no hand squeezing on repeat 50 mL work.
- The LED charge indicator shows green at full, blue at 3/4, yellow at 1/2, and red at 1/4, so the operator can check the battery before starting a bead.
- The gun is set up for 1:1 only. For 2:1, 4:1, or 10:1 square back cartridges, use the Chem-Set PAK-50 manual gun listed under Related Products.
Common Applications
- Dispensing two-component 1:1 adhesives from 50 mL A-System and B-System square back cartridges
- Dispensing two-component epoxy from 50 mL 1:1 cartridges
- Bead dispensing from 50 mL 1:1 cartridges where a battery gun is preferred over hand pressure
Available Sizes
- Each, 50 mL cartridge capacity, 1:1 ratio. Includes the gun, charger, and 1:1 plunger. SKU CCH50G-1-1-B
Related Products
- Chem-Set PAK-50 Manual Dispensing Gun (50 mL) (manual gun for square back cartridges at 1:1, 2:1, 4:1, and 10:1)
- Cox AirFlow 1 CBA 25 R50 50 mL Pneumatic Dispenser, 1:1 (pneumatic option for 1:1 square back cartridges)
- Cox AirFlow 2 CBA R50 50 mL Pneumatic Dispenser, 1:1 and 2:1 (pneumatic option for 1:1 and 2:1 square back cartridges)
How Battery-Powered 50 mL Cartridge Dispensing Works
A battery gun pushes the cartridge plungers with a motor-driven rack, so the operator controls the bead with the speed knob and switch instead of squeezing a manual gun. The steps below follow the controls on the Pak-50 electric gun.
- Confirm the cartridge is a 50 mL square back A-System or B-System cartridge that runs at 1:1.
- Charge the gun through the USB-C port and check the LED. Green is full, blue is 3/4, yellow is 1/2, and red is 1/4 and low.
- Hold the unlock button to free the rack, load the cartridge, and fit the mixer nozzle your cartridge calls for.
- Turn the speed control knob low to start, then raise it until the bead is steady for your material.
- Hold the switch to dispense. Release it to stop. The rack backs up 0.2 to 0.4 in (5 to 10 mm) so the bead ends cleanly.
Product Demo
Frequently Asked Questions
What is the Chem-Set Pak-50 electric dispense gun used for?
It is a battery-powered gun for dispensing two-component adhesives from 50 mL 1:1 cartridges. Electric dispense gun, battery cartridge gun, and cordless cartridge gun all describe the same kind of tool.
Which cartridges does the Pak-50 electric gun fit?
It fits 50 mL square back cartridges at 1:1, which are the MIXPAC A-System and B-System 50 mL formats. It does not fit round back S-System cartridges.
Does it dispense 2:1 cartridges?
No. This gun is set up for 1:1 only. For 2:1, 4:1, or 10:1 square back cartridges, use the Chem-Set PAK-50 manual gun.
What comes with the Pak-50 electric gun?

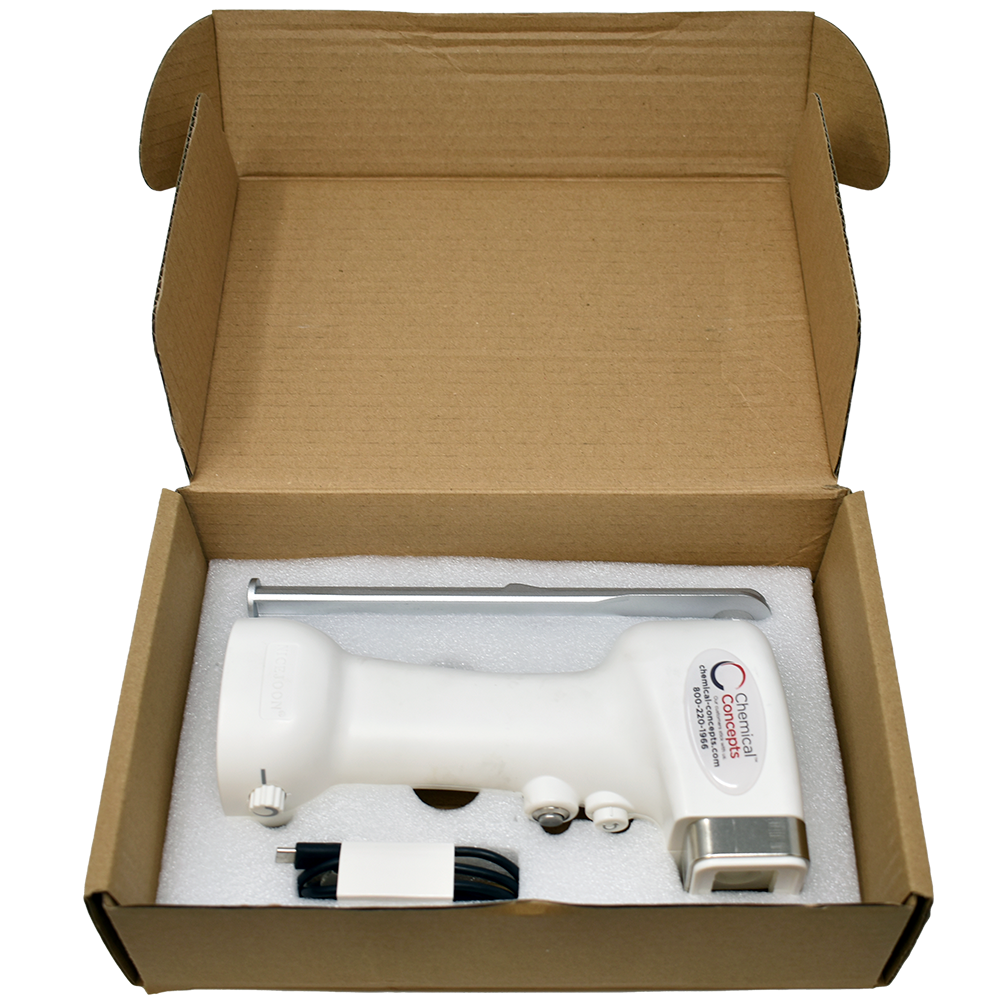

The gun ships with a charger and a 1:1 plunger.
How do I charge the Pak-50 electric gun?
Charge it through the USB-C port. The built-in battery is 7.4 V, 2 Ah, and the LED shows green at full, blue at 3/4, yellow at 1/2, and red at 1/4.
How do I control bead speed and stop drips?
Turn the speed control knob to set the forward speed, and hold the switch to dispense. When you release the switch the rack stops and backs up 0.2 to 0.4 in (5 to 10 mm) to help stop the bead.
How do I change a cartridge?
Hold the unlock button to free the rack, then load the new cartridge and fit the mixer nozzle. The rack moves freely while the button is held.
Where is the Pak-50 electric gun made?
It is made in China.
Questions on fit for your dispensing setup? Call (800) 220-1966 or email [email protected].
MIXPAC is a brand of medmix.
