Description

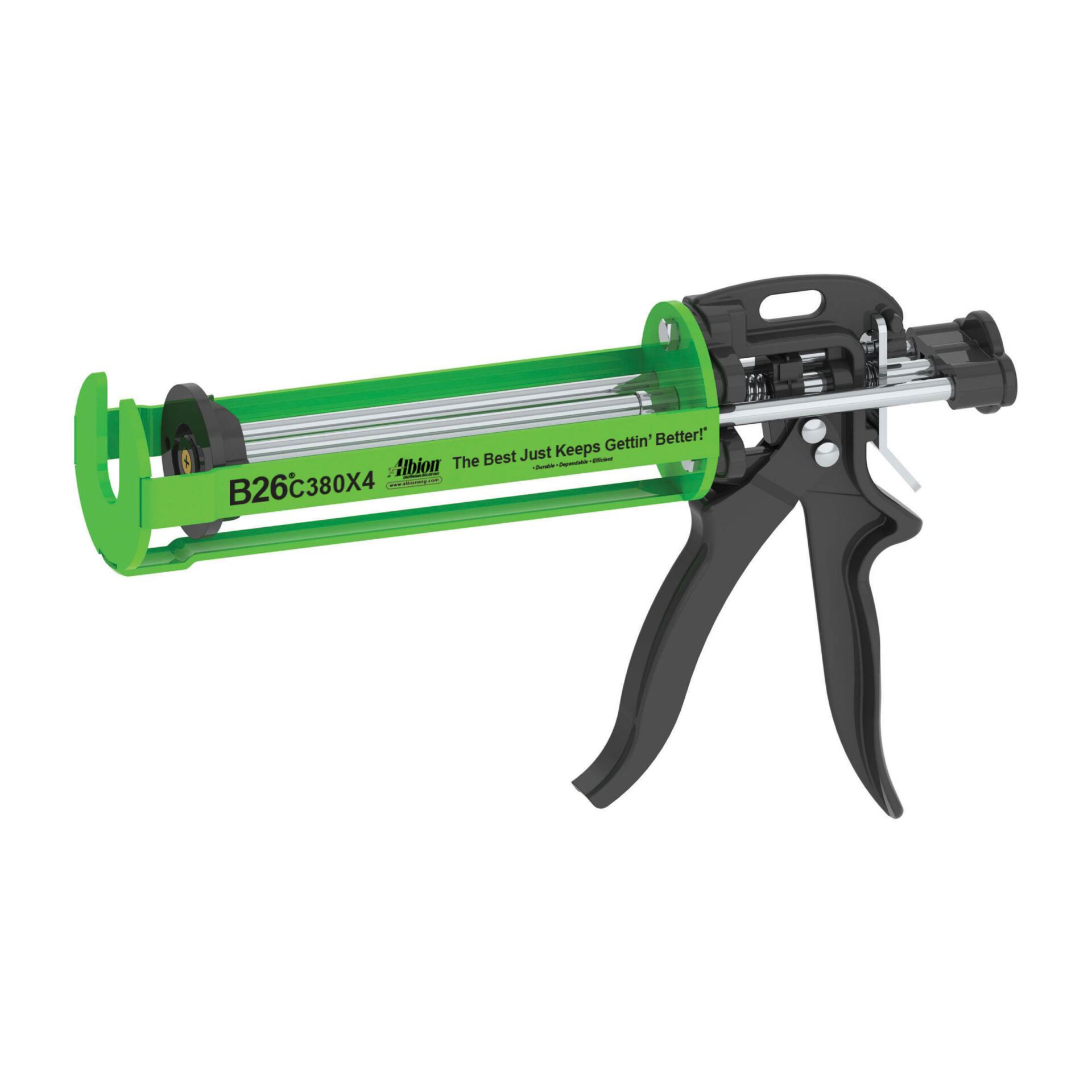

The Albion Coaxial Cartridge Gun dispenses 380ml compact coaxial cartridges at a 4:1 or 5:1 mix ratio, giving fabrication and construction crews a manual option for two-component adhesives and sealants that do not need a powered dispenser. The gun also handles 3M FIP 1-Step Fire Barrier foam cartridges packaged in the same compact coaxial format, so one tool covers more than one product line on a job site.
Where the Albion Coaxial Cartridge Gun Is Used
Crews reach for this gun anywhere a two-part epoxy, urethane, or fire-stop foam ships in a coaxial cartridge rather than separate side-by-side tubes. The compact cartridge format fits the gun’s frame at 7 1/4 inches long by 2 1/2 inches outside diameter, which keeps the loaded tool manageable in tight overhead or vertical work compared to full-size dual cartridges.
How the Albion Coaxial Cartridge Gun Holds Up
Albion builds the frame around a B-Line drive with a 26:1 thrust ratio, enough mechanical advantage to push thicker two-part formulas without excessive hand fatigue over a long day. Double gripping plates and a steel trigger add durability under repeated daily use, and the adjustment screw lets an operator tighten out play as the gun wears instead of retiring it early. A cordless powered version of the same platform is available as the E18C380X4 for crews dispensing at higher volume.
Care and Cartridge Handling
Seat the cartridge fully before squeezing the trigger, since a partially seated coaxial cartridge can push back under pressure and waste material on the first few pulls. Because the two components stay separated until they pass through the static mixer tip, a fresh mixer is needed every time the gun sits idle long enough for the prior mix to begin curing inside the nozzle. Wiping the frame down between cartridges keeps cured adhesive from building up around the plunger rod, which over time can slow the trigger action and reduce the smoothness of the 26:1 drive.
Albion Coaxial Cartridge Gun Specifications
| Spec | Detail |
|---|---|
| Cartridge Size | 380ml (12.85 fl oz combined) |
| Mix Ratio | 4:1 or 5:1 |
| Cartridge Dimensions | 7 1/4 in long, 2 1/2 in OD |
| Drive | B-Line, 26:1 thrust ratio |
| Frame Features | Double gripping plates, steel trigger, adjustable screw |
| Also Compatible With | 3M FIP 1-Step Fire Barrier foam cartridges |
Browse the rest of the dispensing tools and mixers category for compatible static mixers and cartridge sizes. Full specifications and accessory compatibility are available on the Albion site.
Need Help?
Need help matching a cartridge gun to your two-part system? Call (800) 220-1966 or email [email protected].
