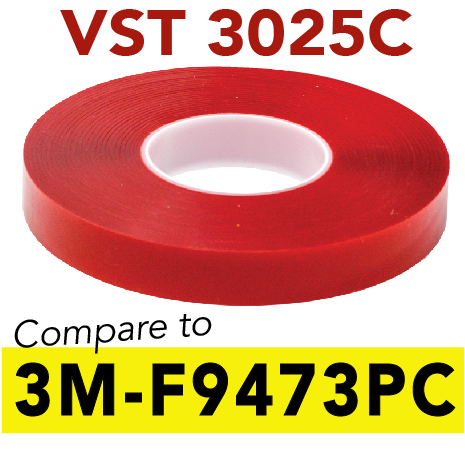

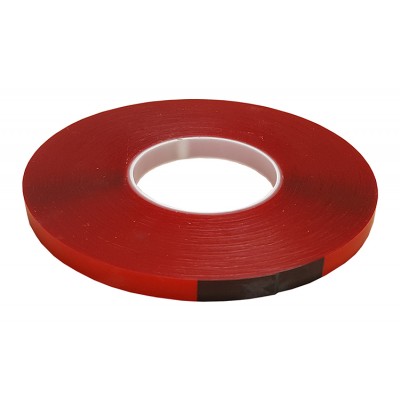

Chem-Set VST3025 Clear Ultra-Thin High Bond Tape, 10 mil

Chem-Set VST3025 is a 10 mil clear ultra-thin bonding tape used as a 3M 9473 alternative for attaching thin, light, and small parts where a foam tape would be too thick and a liquid adhesive too messy. At 0.010 in it disappears into the joint, which is why it runs in die-cut shapes, nameplates and ID plates, bezels, lens and display attachment, and electronic assembly work. Bonds on contact with no cure time, no mixing, and no dispensing equipment.

The 100% acrylic construction handles curved and irregular surfaces and molded parts, and the closed cell structure is wind and water resistant so the tape seals the joint as it bonds. Designed for high and medium surface energy materials: glass, glass epoxy, stainless steel, galvanized and anodized steel, and coated aluminum. Supplied in 60 yd rolls, sold by the individual roll with no case minimum, and PFAS and PFOS free per the manufacturer.

Key Product Details

What VST3025 Bonds To

VST3025 is formulated for high and medium surface energy surfaces. The thin adhesive film gives good performance on molded parts, curved surfaces, and die-cut shapes where a thicker foam would bridge poorly or show at the edge.

• Glass and glass epoxy
• Stainless steel
• Galvanized steel
• Anodized steel
• Coated aluminum
• High and medium surface energy plastics

Where a different grade is the better answer. For harder-to-bond medium surface energy plastics like PVC and ABS, purpose-built grades outperform this one. For a bond that has to be truly invisible between transparent materials such as glass, acrylic (PMMA), and polycarbonate, there are grades designed specifically for that. For low surface energy plastics like polypropylene and polyethylene, you need either a primer or one of the low surface energy grades. Call us with the substrate and the joint and we’ll put you on the right one rather than the closest one.

How Thin Bonding Tape Works

A 10 mil tape has almost no ability to conform, so it demands more of your surfaces than a foam grade does. Where a 47 mil foam tape will absorb a bowed panel, this one needs both faces to actually meet. That makes surface prep and pressure the whole ballgame.

1. Check the fit first. At 0.010 in there is no gap filling. If the two surfaces have a visible mismatch, this is the wrong thickness and you want a foam grade instead. Rigid, flat, well-matched parts are where this tape earns its keep.
2. Bring everything to 65°F or warmer. Below that the adhesive is too firm to flow into the surface, and thin tapes are less forgiving about it than thick ones because there is less adhesive to work with.
3. Clean thoroughly. Fingerprints and light oil come off with an isopropanol wipe. Grease and mold release need a stronger non-polar cleaner first. Molded parts are the usual problem here, since release agent is invisible and will defeat the bond completely. Wipe in one direction with lint free tissue, and use surface test inks to confirm your cleaner is working.
4. Handle die-cut parts by the liner. Keep the liner on until the part is positioned. On small die-cut shapes there is very little tape to grab and the open face picks up dust immediately.
5. Apply real pressure. Roll or press in one direction at 10 to 50 N/cm, around 30 N/cm for most work, at about 24 in/min. On small parts use a platen or a press rather than a hand roller so the whole bond area sees the same pressure.
6. Let the bond build. Shear rises from 81 lb/in² at 20 minutes to 87 lb/in² at 24 hours, so you can see the wet-out happening in the numbers. Handling strength is immediate. Plan load bearing service and shipping around the 24 hour mark.

Design the joint for shear or tension. Peel and cleavage loads concentrate stress on one edge, and a thin tape has less material to distribute it. With only 10 mil of thickness, added bond area is your only lever, so widen the tape or increase the footprint rather than reaching for a thicker grade if clearance is the constraint.

Performance in Production

• 109 lb/in² normal tensile is the highest in the clear VST group, higher than the 40 mil and 60 mil foam grades. Thin and rigid pulls harder in straight tension than thick and compliant does.
• 87 lb/in² shear at 24 hours means a 1/2 in strip across a 2 in bond carries roughly 87 lb before a safety factor. Small footprints go further than people expect on this grade.
• 15 lb/in peel is the tradeoff for going thin. Keep exposed edges out of the design or protect them mechanically.
• At 10 mil the bond line effectively disappears, which is why it works on bezels, lens attachment, and anywhere a foam edge would read through a finished surface.
• Die-cuts cleanly into shapes, tabs, and small footprints, and handles curved and irregular surfaces that a thick foam would fight.
• 212°F long term and 320°F short term covers process heat exposure in assembly, and the -40°F floor covers cold service once the bond is made.
• Good plasticizer resistance, which matters when bonding to vinyl and flexible plastics that would soften a lesser adhesive over time.
• 60 yd rolls, half again more length per roll than the 36 yd foam grades, so fewer changeovers on a converting line.
• Test on your own substrate in your own process before you run production. Published values come from lab panels, and molded part surfaces in particular vary more than most shops expect.

Common Applications

• Die-cut parts and converting: die-cut shapes, tabs, gaskets, and small-footprint bonding parts
• Electronics assembly: display and touch panel attachment, decorative bezels, lens and antenna attachment, process control equipment
• Nameplates and identification: nameplates, ID and spec plates, badges, and thin trim on finished equipment
• Metal fabrication: attaching thin plates and trim to stainless, galvanized, anodized, and coated aluminum without visible fasteners
• Sign and display: thin lettering, spec plates, and light interior graphics where a foam bond line would show
• General manufacturing: lightweight and small part attachment, curved and irregular surfaces, molded part bonding

For panel bonding, cabinet assembly, and anything carrying real structural load, the thicker foam grades are the right specification. See the full VST line.

Working From a 3M Part Number

If you are specced into a thin clear 3M grade and need another source, the closest Chem-Set match is below, along with the thicker clear grades for reference.

A cross reference is a starting point for selection, not a statement that two products perform the same. Note that VST3025 sits in a different class from the three foam grades below it: at 10 mil it is a thin bonding tape for flat rigid parts, not a gap-filling structural foam. Read both data sheets and test in your own joint before you commit a production process. Call us and we’ll send a roll.

Most shops calling us about a thin clear bonding tape are calling because of how it’s sold, not how it performs. Comparable grades commonly ship in case quantities with lead times measured in weeks. VST3025 sells by the individual roll, with volume pricing when you need it, and in-stock orders placed by 2pm Eastern ship the same day.

Available Sizes

• 1/2 in x 60 yd x 10 mil for small parts, tabs, and narrow trim
• 3/4 in x 60 yd x 10 mil for general thin bonding work
• 1 in x 60 yd x 10 mil for more bond area on larger plates and panels

Every size sells as a single roll with volume pricing at higher quantities. Custom slit widths from 4 mm up to 250 mm and log rolls are available for converting and die-cutting. Call for lead time.

Related Products

• Chem-Set VST3050C Clear High Bond Tape, 20 mil when you need some conformability but still a thin bond line
• Chem-Set VST6100C Clear Acrylic Foam High Bond Tape, 40 mil for structural bonding of glass, acrylic, and polycarbonate
• Chem-Set VST6150C Clear High Bond Tape, 60 mil for less uniform surfaces and more thermal movement
• Adhesive transfer tapes for other thin bonding options
• Full Chem-Set VST tape line with the complete cross reference chart

Frequently Asked Questions

What is Chem-Set VST3025 used for?

VST3025 is a 10 mil clear ultra-thin double sided tape used to attach thin, light, and small parts where a foam tape would be too thick. Typical work is die-cut shapes and converted parts, nameplates and ID plates, decorative bezels, display and lens attachment, electronic assembly, and thin trim on finished equipment. At 0.010 in the bond line is effectively invisible.

What is the difference between VST3025 and the thicker VST foam tapes?

Thickness changes what the tape can do, not just how thick the joint is. At 10 mil, VST3025 has almost no ability to fill a gap, so both surfaces need to be flat, rigid, and well matched. In exchange it gives the highest tensile strength in the clear group and a bond line you cannot see. The 20, 40, and 60 mil foam grades conform to surface irregularity and absorb thermal movement and vibration, which is what you want for panel bonding and structural work. Match the thickness to how well your parts fit, then check the load.

Can VST3025 replace 3M 9473 or F9473PC?

VST3025 is the closest Chem-Set match to 3M 9473 and F9473PC. All are clear 10 mil thin bonding tapes for high surface energy substrates. It is not a 3M approved substitution and the manufacturers do not publish identical test conditions, so the right answer for your assembly comes from testing it in your own joint. Call us for a sample roll.

Can VST3025 be die-cut?

Yes, and that’s one of its main uses. The thin construction cuts cleanly into shapes, tabs, and small footprints, and it handles curved and irregular surfaces and molded parts. Custom slit widths from 4 mm up to 250 mm and log rolls are available for converting work. If you are running it on automated equipment, call us before you order so we confirm the liner type for your process.

Does VST3025 bond PVC, ABS, or polypropylene?

Not as the first choice. VST3025 is formulated for high and medium surface energy surfaces such as glass, stainless, galvanized and anodized steel, and coated aluminum. Harder-to-bond medium surface energy plastics like PVC and ABS have purpose-built grades that outperform this one, and low surface energy plastics like polypropylene and polyethylene need either a primer or a dedicated low surface energy grade. Tell us the substrate and we’ll put you on the right product.

Can I buy one roll, or do I have to buy a full case?

You can buy one roll. All three widths are stocked and sold individually with volume pricing if you need more, and in-stock orders placed by 2pm Eastern ship the same day.

How cold can it be when I apply the tape, and how cold can the finished assembly get?

Apply at 65°F (18°C) or warmer. Below that the adhesive is too firm to flow, and a thin tape is less forgiving about it than a thick foam because there is less adhesive to work with. Service temperature is a separate question: once the bond is properly made the assembly holds from -40°F up to 212°F continuous and 320°F short term.

Where is Chem-Set VST3025 made?

VST3025 is manufactured in South Korea and stocked at our warehouse in Huntingdon Valley, Pennsylvania. In-stock orders placed by 2pm Eastern ship the same day.

Questions on fit for your thin bonding or die-cut application, or working from a 3M part number you can’t get? Call (800) 220-1966 or email [email protected].
