Description
20 mil (0.020″) clear acrylic foam high bond tape supplied in 108 ft (36 yd) rolls. Alternative to 3M VHB 4905.
Chem-Set VST3050C is a double sided acrylic foam tape designed for bonding transparent materials including glass, acrylic, and polycarbonate. The thinner profile provides a clean bond line with less gap fill compared to thicker tapes, while maintaining strength and long term durability.
The viscoelastic acrylic core distributes stress and compensates for thermal expansion between dissimilar materials, improving long term bond reliability.
VST Acrylic Foam Tape Overview
Not sure which thickness you need? This overview explains how Chem-Set VST high bond acrylic foam tapes compare across common applications.
Key Product Details
| Property | Value |
|---|---|
| Chemistry | 100% Acrylic Foam |
| Thickness | 0.020 in (0.5 mm / 20 mil) |
| Density | 56 lb/ft³ (900 kg/m³) |
| Color | Clear |

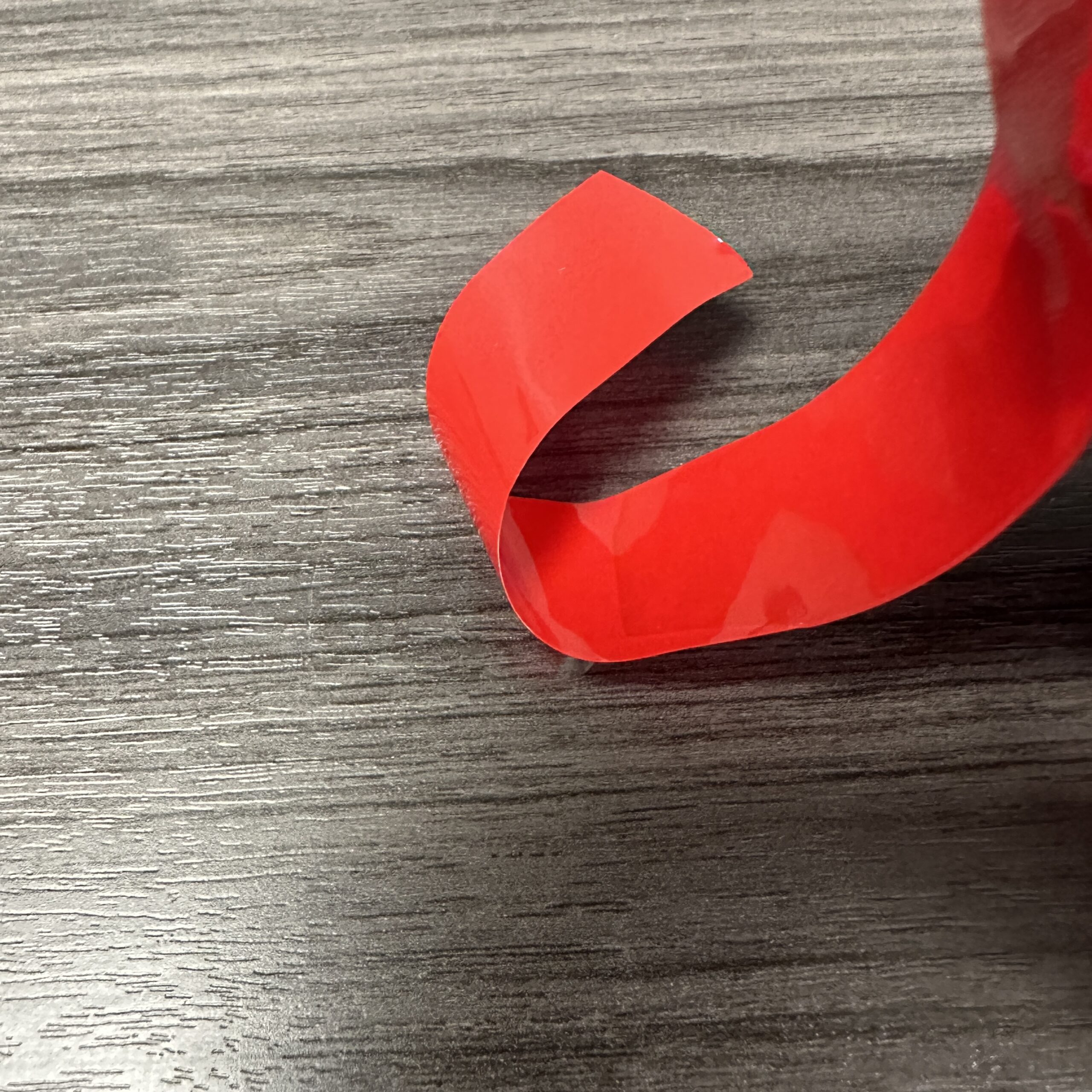

| Liner | Red PE Film |
| Peel Adhesion | 17 lb/in (ASTM D3330) |
| Tensile Strength | 99 lb/in² (ASTM D897) |
| Dynamic Shear | 88 lb/in² (ASTM D1002) |
| Static Shear | 1000 g (ASTM D3654) |
| Temperature Resistance (Long Term) | 212°F (100°C) |
| Temperature Resistance (Short Term) | 320°F (160°C) |
| Minimum Temperature | -40°F (-40°C) |
| UV Resistance | Excellent |
| Solvent Resistance | Excellent |
Performance in Production
- Thinner profile for tighter bond lines
- High initial tack with fast wet-out
- Maintains optical clarity in visible applications
- Absorbs vibration and thermal movement
- Performs across -40°F to 320°F
- Suitable for indoor and outdoor use
Common Applications
- Bonding glass, acrylic (PMMA), and polycarbonate (PC)
- Transparent signage and display assembly
- LED lighting and strip light mounting
- Electronics and display components
- Appliance panels and decorative trim

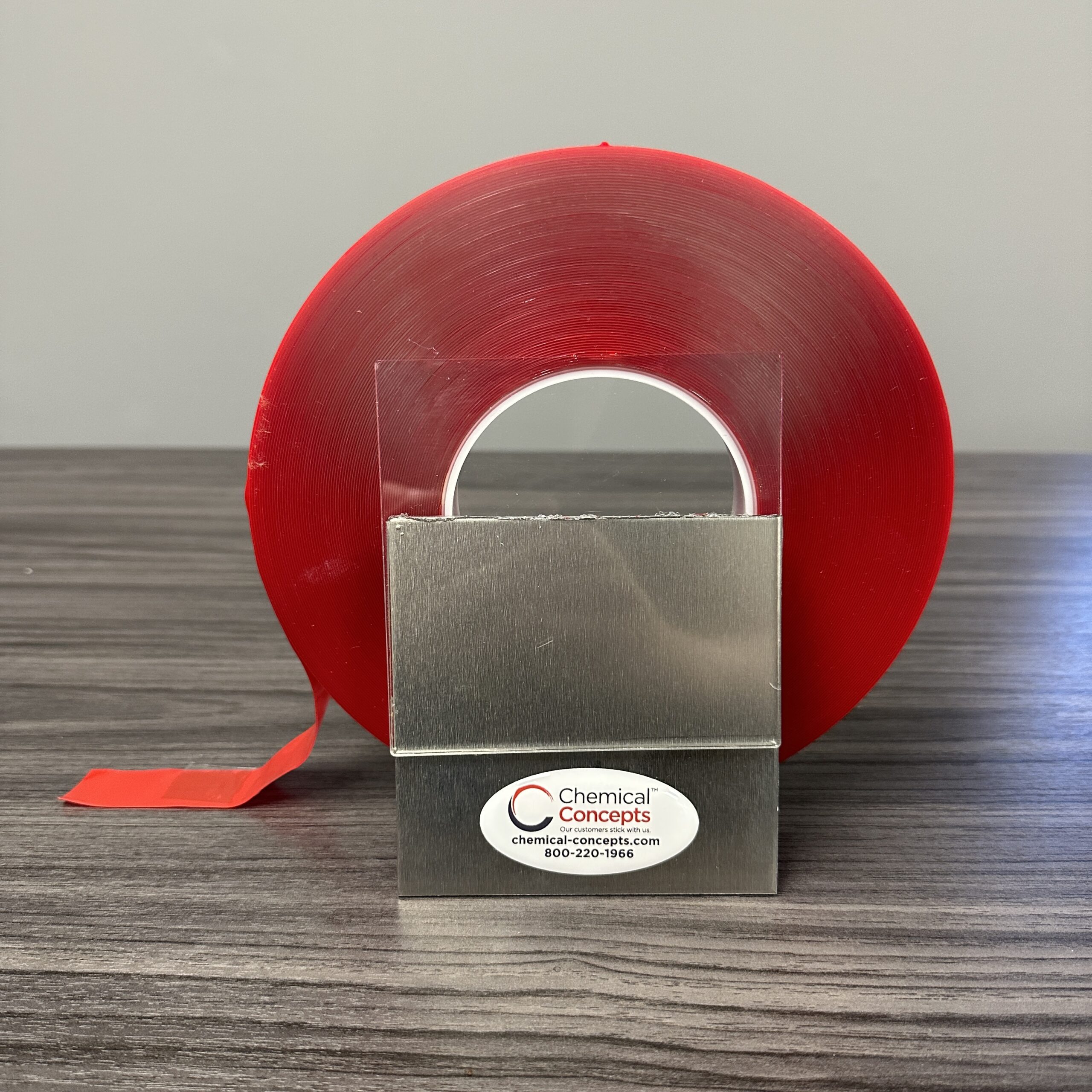

Roll Configuration
- Standard roll length: 108 ft (36 yd)
- Available widths: 1/4 in, 1/2 in, 3/4 in, 1 in
- Thickness: 0.020 in (20 mil)
Size Selection Guide
- 1/4 in Width
Very narrow bond lines and precision applications - 1/2 in Width
Narrow bonding and trim - 3/4 in Width
General purpose bonding - 1 in Width
Increased surface area for higher strength
Available Sizes or Variants
Select Size:
- 1/4 in x 108 ft (36 yd)
- 1/2 in x 108 ft (36 yd)
- 3/4 in x 108 ft (36 yd)
- 1 in x 108 ft (36 yd)
