Sulzer Mixpac AQ 150-10-30-01 Cartridge, 150 mL

Description

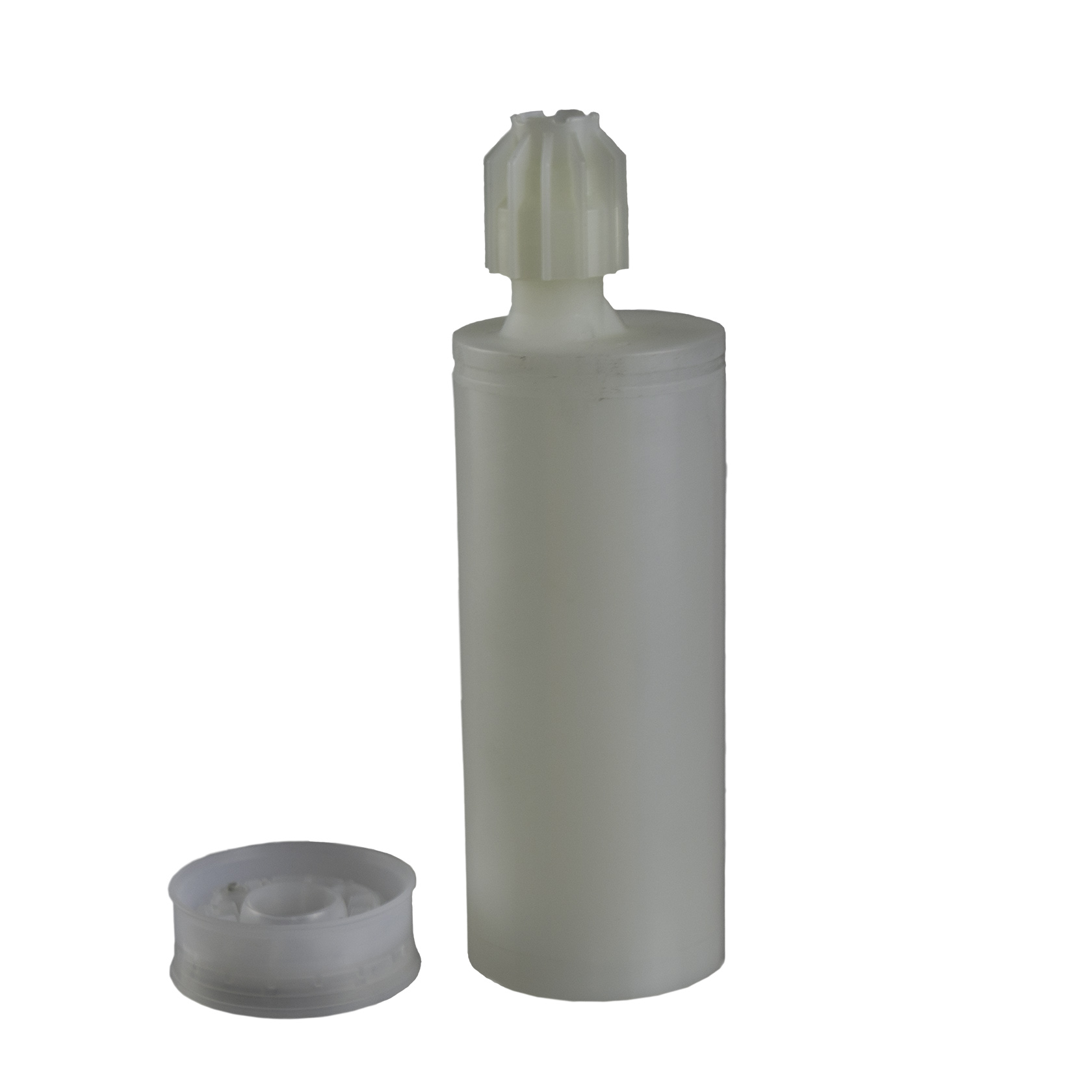

The Mixpac Q-Series cartridge from Sulzer (Medmix) holds 150 mL of two-component material in a 10:1 ratio, built in a coaxial design that fits any standard one-part caulking gun rather than requiring a dedicated dual-piston applicator. The cartridge body is molded in PA (nylon), and the bayonet fitting accepts a static mixer sized to the same 10:1 ratio for on-demand mixing at the point of dispense.

Where the Mixpac Q-Series Cartridge Is Used

This cartridge format shows up on production lines and field service work where a two-component adhesive, sealant, or coating needs to go down in a controlled bead without a bench-mounted meter mix system. Typical materials run through it include silicone, acrylic, polyurethane, and epoxy adhesives across transportation, general industrial, construction, and renewable energy assembly work, including solar panel and wind turbine component bonding.

How the Mixpac Q-Series Cartridge Handles in the Field

Because the design is coaxial rather than side-by-side, one common caulking gun drives the plunger for both components at the correct 10:1 volume split, so crews already equipped with a standard gun do not need to buy a specialized dispenser. The self-venting piston design helps reduce air pockets when the cartridge is first loaded. Retaining-nut attachment holds the static mixer securely through the full 150 mL discharge.

Specifications

Match the static mixer element count and ratio to this cartridge before dispensing, since a mismatched mixer will not blend the 10:1 split correctly and can waste material. Browse Sulzer Mixpac cartridges and matching static mixers in the dispensers, mixers, and nozzles category. Medmix (Sulzer Mixpac) publishes cartridge and mixer specifications at medmix.swiss.

Need Help?

Need help matching a static mixer or dispensing gun to this cartridge? Call (800) 220-1966 or email [email protected].
