Description

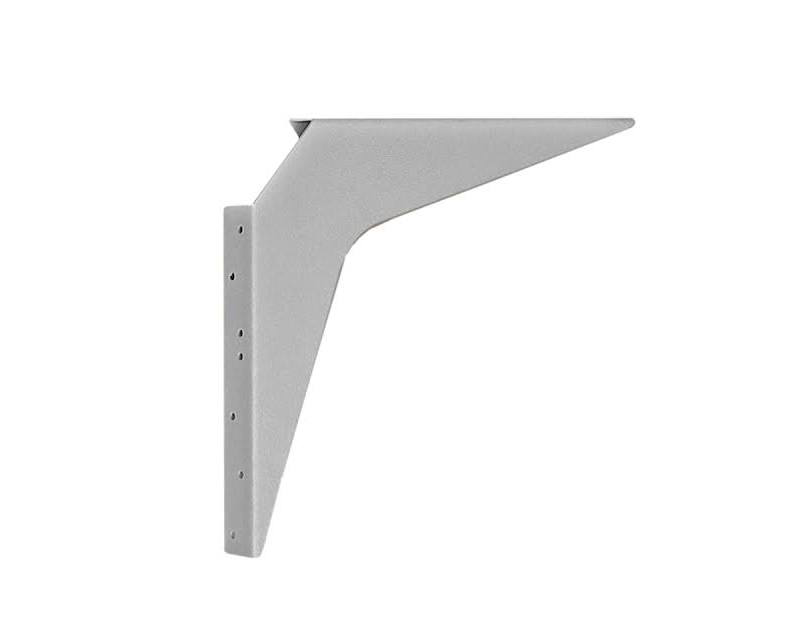

The 21 inch workstation bracket from CounterBalance creates rigid support beneath work surfaces without filling the floor area with legs or cabinets. This gray, imported bracket measures 21 by 21 inches and suits workstation tops, garage storage shelves, floating islands, and countertop installations. Its reversible steel design gives fabricators a practical way to support deep surfaces while keeping the space below open for seating, carts, tools, or storage.
Where This Workstation Bracket Fits
Use the bracket where a wall or framed support can carry a projecting counter or shelf. Cabinet shops can place it beneath assembly benches and countertop overhangs. Contractors can use it for utility shelving, service counters, and floating work surfaces. The equal 21 inch legs make the bracket useful where the horizontal and vertical support dimensions need to match. Because the design is reversible, installers can orient the bracket to suit the available framing and the direction of the supported surface.
21 Inch Workstation Bracket Construction
The bracket is formed from 1/8 inch steel. Each side uses a 1 1/2 inch formed section with multiple 1/4 inch mounting holes. Mounting hardware is not included, which lets the installer select fasteners that match the wall material, framing, and expected load. Larger brackets in this family include a 3 by 3 inch, 45 degree notch for wall cleat and wire-run clearance. The workstation bracket family is designed for demanding support work, with published family load limits ranging from 1,420 to 2,920 pounds per pair. Final capacity still depends on the substrate, fasteners, spacing, and installation quality.
Specifications
| Property | Value |
|---|---|
| SKU | CCH-CBWB2121GR-IM |
| Brand | CounterBalance |
| Size | 21 x 21 inches |
| Material | 1/8 inch steel |
| Finish | Gray |
| Design | Reversible |
| Mounting holes | Multiple 1/4 inch holes per side |
| Origin option | Imported |
| Mounting hardware | Not included |
Plan the installation around solid framing and the finished surface depth. Confirm that the bracket sits square, choose fasteners rated for the wall construction, and distribute brackets so the top cannot twist or sag between support points. The reversible layout also helps when nearby cabinetry, cleats, or wiring affects placement. Brackets in this line are packaged in equal quantities of left and right orientations, which supports balanced layouts across longer runs.
Browse related CounterBalance steel brackets for other sizes and finishes. For installation ideas and field-use demonstrations related to countertop support hardware, visit the Chemical Concepts application video channel.
Need Help?
Need help matching bracket size and spacing to a work surface? Call (800) 220-1966 or email [email protected].
