CounterBalance Cleat Support Bracket, Black Powder Coated Steel

Description

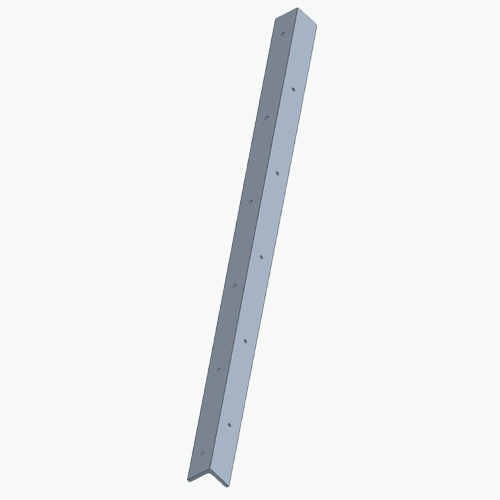

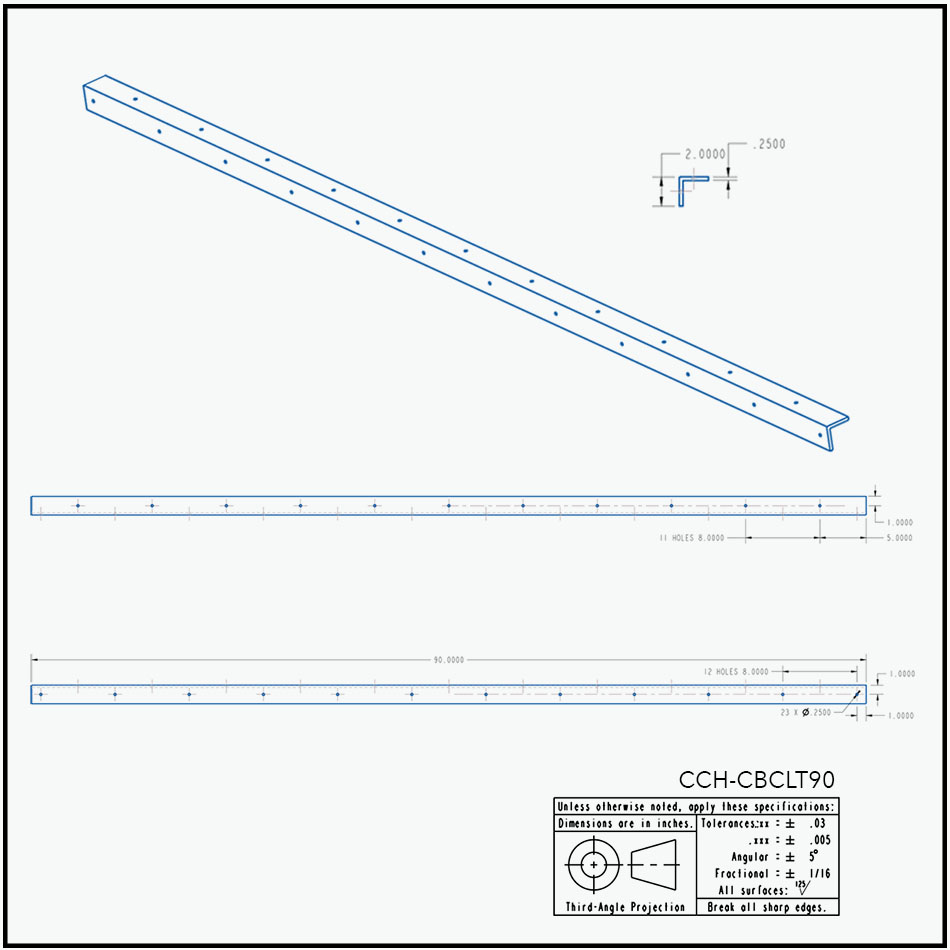

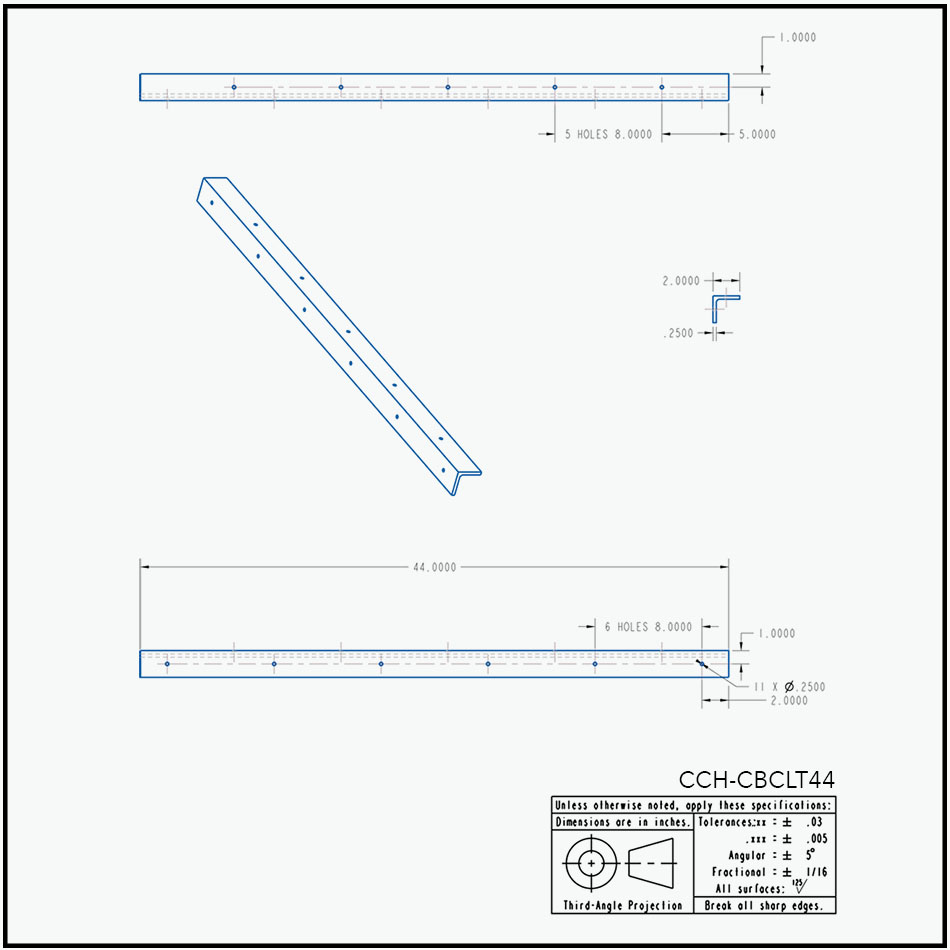

cleat support bracket hardware from CounterBalance gives countertop installers a straight black steel support for side walls and back-edge reinforcement. The bracket is built from 1/4 inch thick metal with 1/4 inch mounting holes, a black powder-coated finish, and countertop attachment holes offset from wall holes at 8 inch intervals. Available 28 inch, 44 inch, and 90 inch sizes let crews match the support to cabinet runs, knee walls, and wall-side countertop spans.

cleat support bracket Benefits

• Supports countertop edges along side walls and back walls where corbels are not desired.
• Black powder-coated steel finish blends under dark cabinetry and stone overhangs.
• Offset hole pattern gives installers separate paths for wall fastening and countertop attachment.
• 8 inch hole spacing helps crews plan repeatable fastener placement.
• 1/4 inch plate thickness provides a low-profile support surface under the slab.
• Three stocked lengths cover short returns, medium spans, and long wall runs.

cleat support bracket Applications

• Side-wall countertop support in kitchens, bars, offices, and reception areas.
• Back-edge reinforcement where the countertop meets a wall or finished panel.
• Quartz, granite, solid surface, and wood countertop installations when sized by a qualified installer.
• Cabinetry and millwork jobs where visible angled brackets would conflict with the design.
• Retrofit support where the installer can access solid blocking or structural backing.

Technical Details

Installation Notes

Fasten into structural backing suited to the countertop material, span, and expected load. Review the CounterBalance guide and project drawings before drilling. Browse related options in our CounterBalance steel brackets category. For general fastener education, visit the Industrial Fasteners Institute.

Need Help?

For help choosing the right bracket length, spacing, or support style, call (800) 220-1966 or email [email protected].
