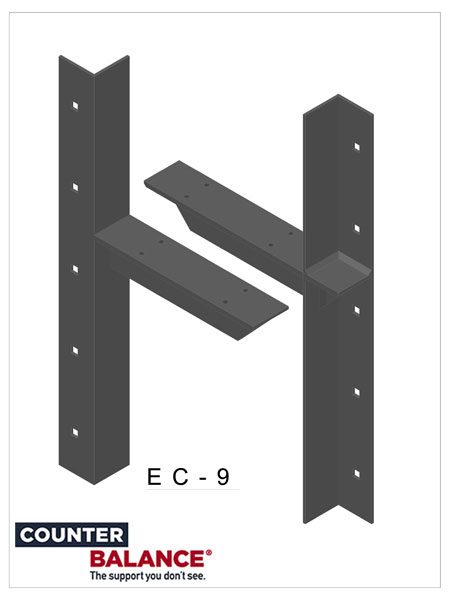

CounterBalance Extended Concealed Bracket, Gray, 9 Inch

Description

For a shorter run finished in a darker powder coat, this gray support bracket pairs the 9 inch Extended arm length with a gray finish built to match modern cabinet hardware and trim. Like the rest of the CounterBalance Extended Concealed Bracket line, it adds a vertical upper extension above the support arm for more rigidity than the standard Concealed Bracket carries at the same length. It ships ready to bolt in place with no separate hardware order needed.

Compact Arm, Gray Support Bracket Rating

This gray support bracket sits at the shorter end of the Extended lineup, where load capacity runs toward the top of the family’s 1,800 to 7,960 lbs per pair range. The bracket supports an overhang extending 6 inches beyond its own length, per industry-recommended standards for hidden countertop supports, and ships with 1/4 inch by 3 inch carriage bolt hardware ready to mount.

Mounting This Gray Support Bracket

Bolt to load-bearing wall studs behind the finished drywall rather than to the drywall itself, and add backing where the framing uses metal studs. Gray is available across most Extended arm lengths from 9 to 24 inches, so a matching bracket in a longer reach is available for wider counters in the same finish, and black or almond options cover rooms with lighter trim.

Find matching arm lengths and finishes in the countertop bracket collection. For mounting order and stud-spacing guidance, see the Chemical Concepts YouTube channel for installation walkthroughs. For help planning bracket count on a specific counter, call (800) 220-1966 or email [email protected].
