Description

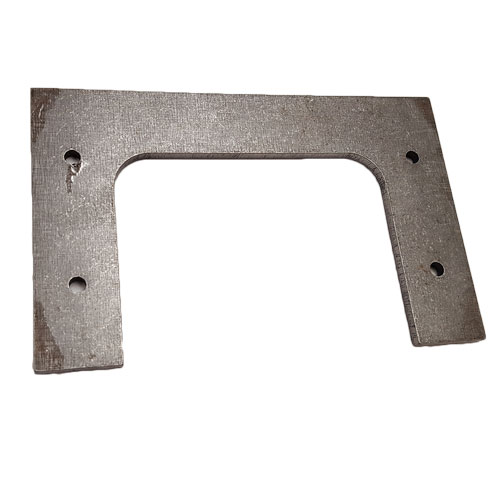

CounterBalance route guide is a reusable template for routing the recess needed during CounterBalance CounterPlate installation. It helps countertop installers set the template in position, route to the proper depth, and create a cleaner pocket for the support plate before fastening.
CounterBalance route guide Benefits
- Template format supports repeatable plate recesses across multiple cabinet or stud-wall locations.
- Helps installers follow the CounterPlate contour instead of freehanding the pocket shape.
- Supports cleaner flush-mount work where the bracket must sit below the countertop surface path.
- Reusable shop tool is easy to keep with CounterBalance plates, screws, router bits, and layout tools.
- House-brand accessory keeps the installation process matched to the CounterBalance support system.
This guide is a practical add-on for crews that install CounterBalance steel supports often. It does not replace measuring, layout, or substrate checks, but it gives the router a controlled path once the support location is marked.
CounterBalance route guide Applications
- Routing recesses for CounterBalance CounterPlate support installations.
- Preparing cabinet, stud-wall, or support locations before plate fastening.
- Repeat installation work in countertop fabrication and remodeling jobs.
- Training installers on consistent plate pocket layout and routing.
- Keeping field crews aligned with CounterBalance installation sheet procedures.
Setup And Use Guidance
Confirm the support location, overhang requirement, cabinet structure, and fastener path before routing. Set the router depth to match the plate and test the cut on scrap or a hidden location when possible.
Clamp or secure the template so it cannot shift during the cut. Use the bit size and route direction called out in the current installation instructions, then clear dust before placing the support plate into the recess.
Technical Details And Documentation
CounterBalance installation documents show routered-install workflows for plate-style supports, including tracing the plate location, routing the shape with a 1/4 inch bit, placing the plate into the routed area, marking holes, drilling pilot holes, and attaching the plate with screws. For general fastener and support reference, review the Industrial Fasteners Institute.
Ordering Help
For related countertop support hardware, browse Chemical Concepts countertop brackets. For help matching the template to a CounterBalance support plate and overhang layout, call (800) 220-1966 or email [email protected].
