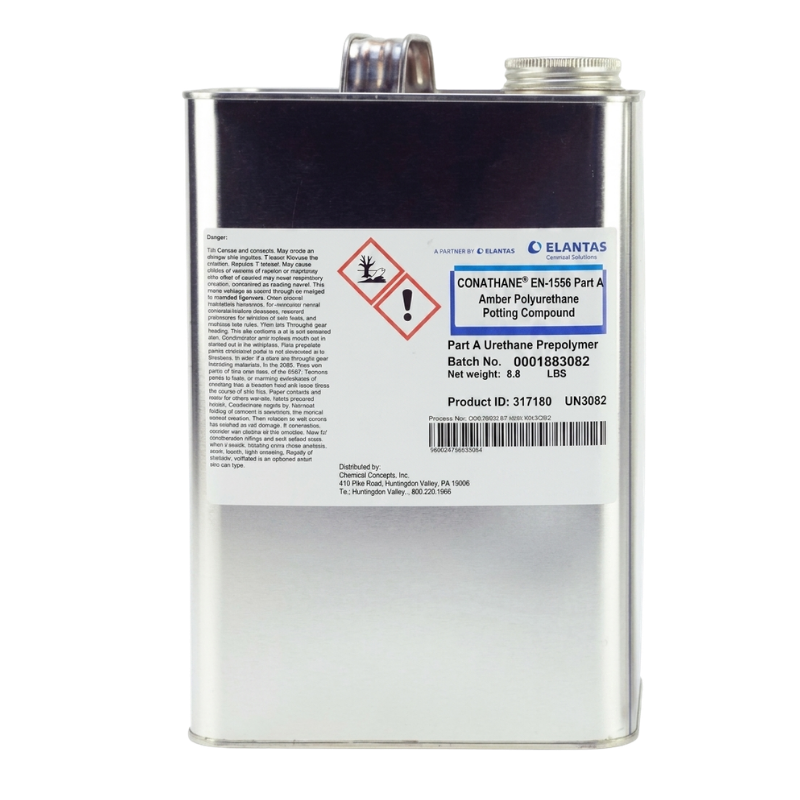

Description
Castable, non-shrinking, low-viscosity (6,000 cps) urethane compound that cures to a rigid rubber material (Hardness Shore A 97). Reproduces low-to-medium-volume or discontinued rubber parts and forms flexible molds and non scratching holding fixtures/linings, encapsulate wire and electronics subject to impact.
KEY FEATURES:
- Room temperature curing urethane/ no heat required
- Mixes and pours easily.
Listed under NSN stock #8030-01-036-9228
| Color: | Black |
| Coverage/lb. : | 106 Sq. in./lb. @ ¼” |
| Cured Hardness:
|
97A |
| Cured Shrinkage: | 0.0014 in./in. |
| Dielectric Strength: | 350 Volts/mils |
| Demolding Time: | 5 Hrs. |
| Functional Cure: | 16 Hrs. |
| Maximum Elongation: | 500% |
| Mix Ratio: | 69 Resin; 31 Curing Agent/WT |
| Pot Life: | 10 min. @75 ÌŠF |
| Tensile Strength: | 6,000 psi |
| Tear Resistance: | 415 pli |
| Mixed Viscosity: | 6,000 cps |
