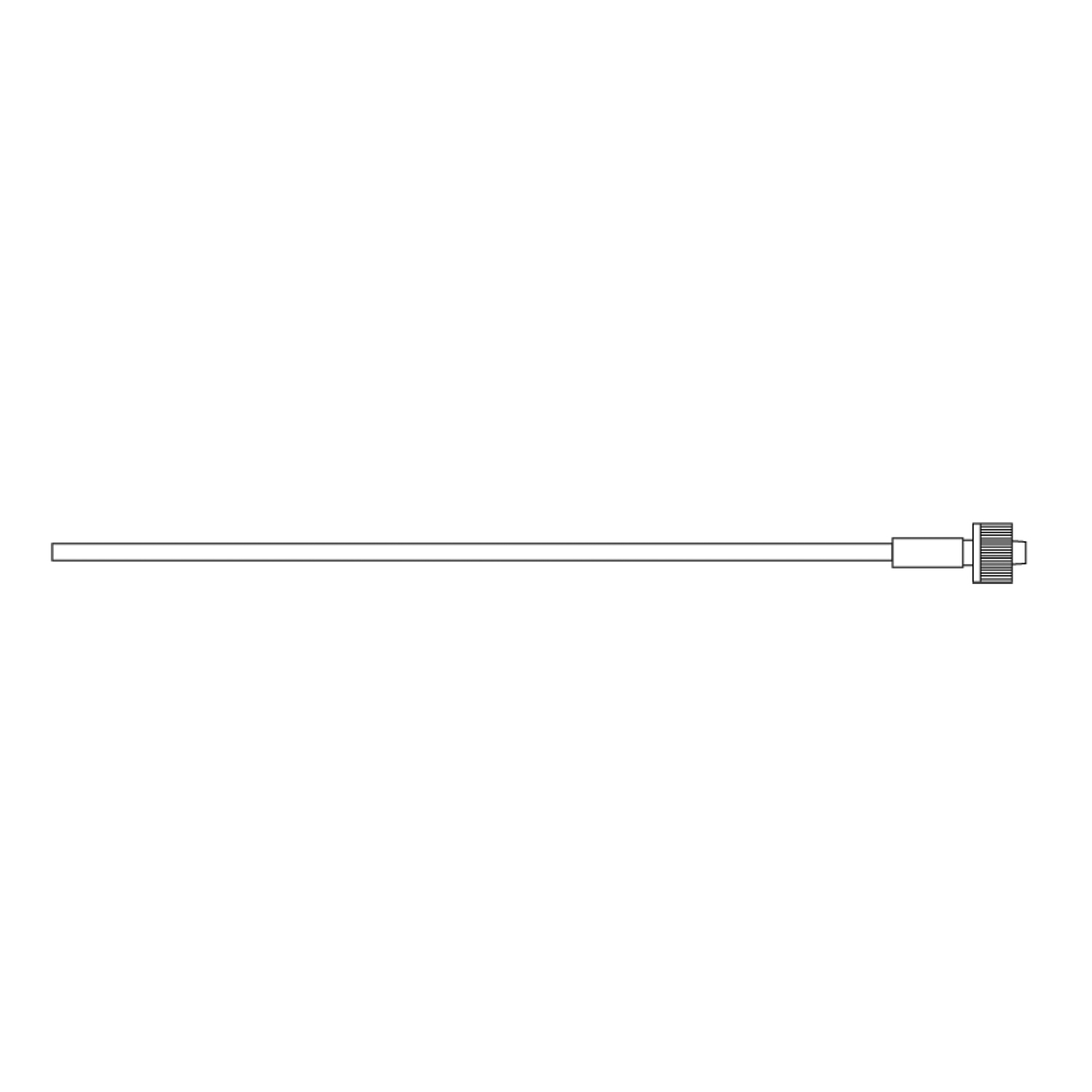

FLUID LINE ASSY,0.100″ID X 24″, MALE (QTY=10)

Description

These dispensing valve parts keep a Techcon fluid path connected cleanly between the reservoir, valve, and dispense point. TSD126-124PK is a male fluid line assembly with 0.100 inch inside diameter and a 24 inch length, supplied as a 10 pack for maintenance benches and production cells that need matching spares on hand.

dispensing valve parts for fluid routing

Use this line assembly when the existing hose is cut, kinked, contaminated, or too worn to hold a consistent connection. A small fluid line can be the quiet source of process drift: pressure may look correct at the controller, but the shot can vary if the line is restricted or leaking at the male end. Replacing the line as a matched assembly helps keep the valve, syringe barrel, cartridge reservoir, and dispense tip working as one system.

The 0.100 inch ID gives this assembly more flow capacity than fine tubing while still fitting compact dispensing equipment. The 24 inch length is useful when the reservoir or pressure pot sits close to the valve, or when a longer reach helps route tubing around fixtures and moving parts.

Ordering dispensing valve parts with the right fit

Match replacement line assemblies by SKU, inside diameter, length, and end style before changing dispenser settings. This item is a fluid line assembly, not a mixing nozzle, 2 part mixing nozzle, or jb weld mixing nozzle style static mixer. If the issue is cured material at the outlet, check the nozzle or needle first; if the line itself is damaged or contaminated, this assembly is the correct service part.

Browse related dispensers, mixers, and nozzles, or visit Techcon for manufacturer background.
