Coilhose HF7323 Brass Hose Ferrule, 0.525 in ID

Description

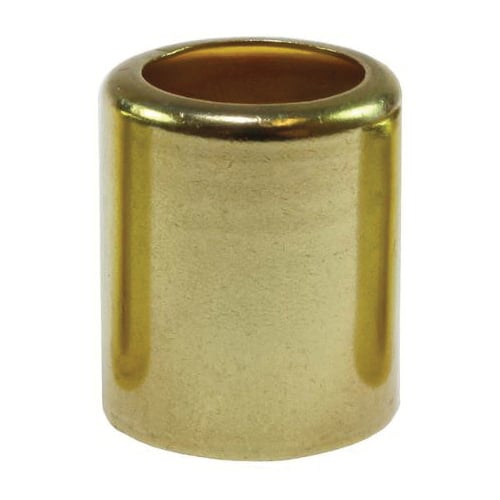

HF7323 ferrule is a Coilhose brass hose ferrule with a 0.525 inch inside diameter and 1 inch length for crimped pneumatic hose assemblies. It is used with compatible 1/4 inch hose models where a permanent clamp is needed between the hose and fitting.

HF7323 ferrule Benefits

• Crimped brass ferrule provides permanent clamping force on the hose and fitting.
• 0.525 inch inside diameter matches the listed ferrule size for compatible hose builds.
• 1 inch length gives the crimp area needed for repeatable hose-end assembly work.
• Compatibility with R14, H14, and TP4 1/4 inch hose families supports common pneumatic repairs.
• Small service part is easy to keep with fittings, crimp tools, and air hose maintenance stock.

This ferrule fits maintenance teams that build or repair air hose assemblies for shops, fabrication areas, and tool stations. The right ferrule size matters because the crimp must hold the fitting without cutting, crushing, or loosening the hose.

HF7323 ferrule Applications

• Repairing 1/4 inch ID rubber pneumatic hose assemblies.
• Building hose ends for compatible neoprene hose.
• Crimping thermoplastic air hose fittings in shop maintenance programs.
• Keeping spare hose-end hardware for compressor and air tool stations.
• Replacing damaged ferrules during hose inspection and rebuild work.

Setup And Use Guidance

Confirm hose model, hose outside diameter, ferrule size, and fitting style before crimping. Cut the hose square, inspect the fitting barb, and keep oil, grit, and loose rubber away from the crimp area.

Use the crimp tool and die setup approved for the hose and fitting combination. After crimping, inspect the assembly before putting it back on an air line. Replace any hose with cracks, swelling, cuts, or heat damage rather than rebuilding only the end.

Technical Details And Documentation

Coilhose lists HF7323 as a brass ferrule for H14, R14, and TP4 1/4 inch hose models, with UPC 029292237079, 0.525 inch inside diameter, and 1 inch length. Review current product-family information from Coilhose Pneumatics before setting a hose repair procedure.
