Description

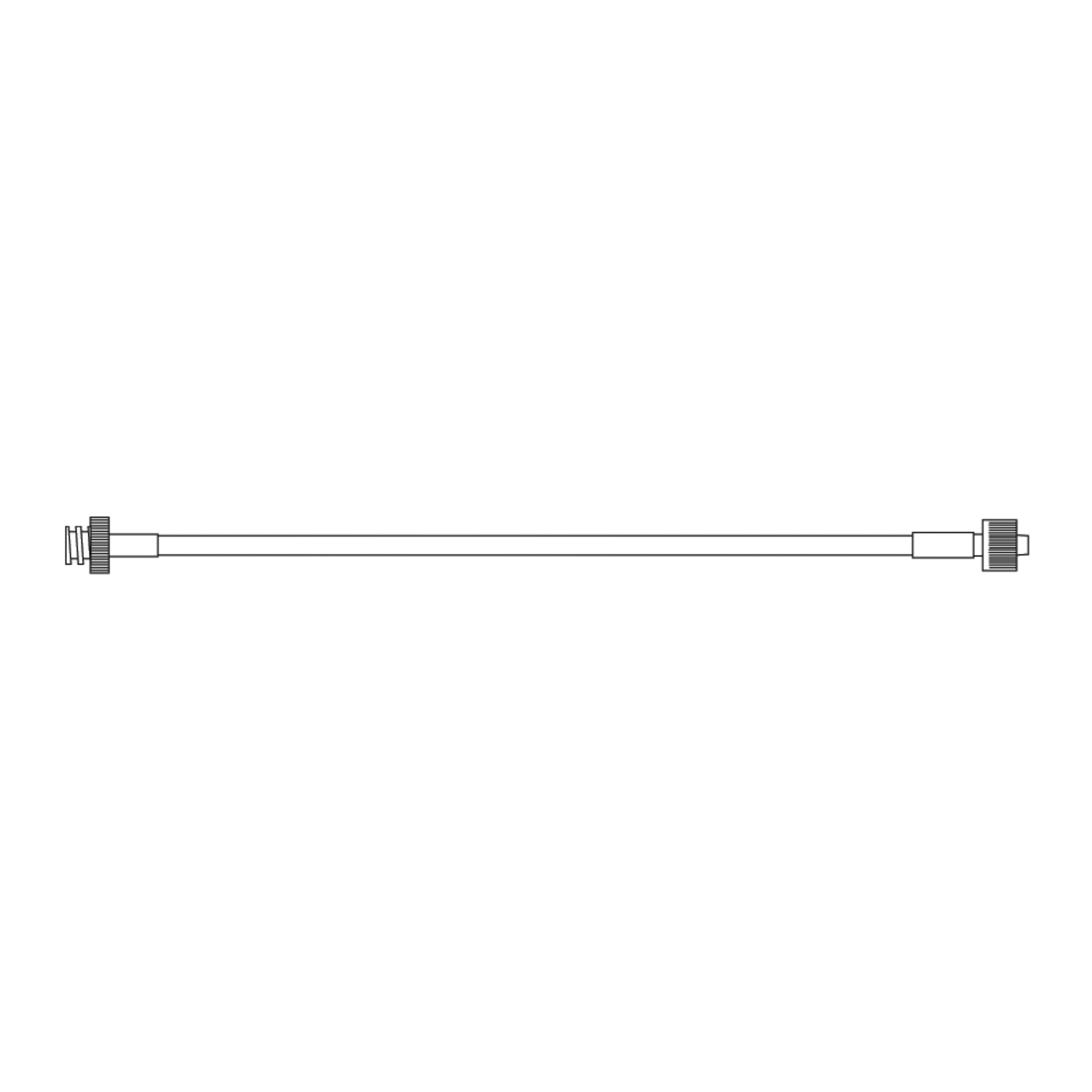

This Techcon fluid line assembly moves adhesive, sealant, or lubricant from the reservoir to the dispensing valve on a TS-series setup. It is one of the dispensing valve parts that keeps a fluid path sealed and consistent, rather than left to open tubing and hose clamps. The line measures 0.1 in ID by 36 in overall length, with a molded Luer lock fitting on each end, one male and one female, so it drops into an existing Techcon fluid path without cutting or re-fitting.
Dispensing Valve Parts: Where This Fluid Line Fits
Precision adhesive and sealant dispensing systems route material from a cartridge, syringe, or bulk reservoir through tubing like this before it ever reaches the valve or dispense tip. Assembly lines running Techcon TS-series pumps and valves use these fluid lines as the connection between the fluid delivery system and the point of application, in electronics assembly, general industrial bonding, and potting work where a controlled, closed path matters more than open pouring.
How These Dispensing Valve Parts Hold Up in Service
The line is molded from polyethylene and rated to 100 psi (6.9 bar) working pressure, enough headroom for most pump-fed dispensing setups without ballooning at the fitting or backing off under cycling pressure. The Luer lock ends thread and lock rather than press-fit, so the joint stays sealed through repeated pressure cycles and does not work loose the way a friction-fit barb eventually will. Techcon builds these lines to pair with other Techcon fluid delivery hardware, so the bore, wall thickness, and fitting geometry match the rest of the TS-series path instead of requiring an adapter.
Specifications
| Spec | Value |
|---|---|
| Inner Diameter | 0.1 in (2.5 mm) |
| Overall Length | 36 in |
| End Fittings | Molded Luer lock, male/female |
| Working Pressure | 100 psi (6.9 bar) max |
| Material | Polyethylene, black |
| Pack Quantity | 10 lines per pack |
| Compatible System | Techcon TS-series fluid delivery |
Check the Luer lock connection at both ends before running a shift: thread it fully home by hand, and replace any line showing a cracked collar or a fitting that no longer locks with a positive stop. Keep spares on hand rather than running a marginal line, since a leak at this joint shows up as inconsistent bead volume at the valve, not as an obvious spill. Order this fluid line by the pack of 10 to keep a production cell stocked without a mid-shift parts run, and browse Chemical Concepts’ dispensing, mixing, and nozzle category for the rest of the fluid path, valves, and tips that pair with it. For full OEM specifications on the Techcon fluid delivery line, see Techcon.
Need Help?
Need help matching fluid line length or fitting style to your Techcon valve setup? Call (800) 220-1966 or email [email protected].
