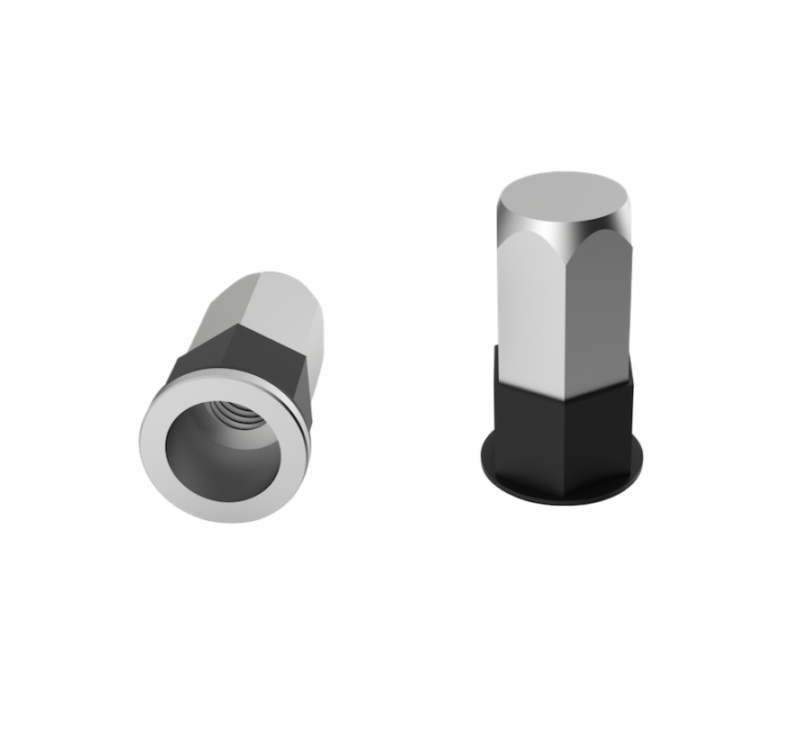

IP68 Deform-Nut Hex Body, Flange-Sealing, Closed-End – Stainless Steel
These flange-sealing closed-end deform-nuts provide reliable internal threads in thin materials while maintaining an IP68 water- and dust-tight seal. A durable plastic flange seal and closed barrel design prevent ingress of liquids or contaminants, making them ideal for enclosures, housings, and outdoor equipment.
Constructed from 18-8 stainless steel (AISI 303 / 1.4305), these inserts deliver strong performance and corrosion resistance in wet or chemically exposed environments. The hexagonal shank ensures superior twist resistance by locking into hex-shaped holes, preventing rotation during installation or service.
Also available in a Round Body IP68 Deform-Nut version for cylindrical hole applications.
Key Features & Benefits
-
IP68-certified: Protects against water immersion and airborne dust.
-
Flange-sealing closed-end design: Creates a watertight and dustproof joint.
-
Hex body: Maximum resistance to turning in service.
-
18-8 stainless steel (303): Durable, corrosion-resistant, and chemical resistant.
-
Blind installation: Requires access from only one side of the workpiece.
-
Load-distributing flange: Improves pull-out strength and surface stability.
Common Applications
-
Electrical and fuse box housings
-
Outdoor and marine equipment
-
HVAC and mechanical enclosures
-
Signage and lighting systems
-
Transportation and heavy vehicle assemblies
Technical Specifications
| Part Number | Thread Size | Grip Range (mm) | OD (mm) | Length (mm) | Installed Length (mm) | Material | Rating |
|---|---|---|---|---|---|---|---|
| 10446A1/M5/X.W | M5 | 0.5–1.5 | 10 | 18 | 12.5 | 18-8 SS | IP68 |
| 10446A1/M6/X.W | M6 | 0.5–2.0 | 12 | 22.5 | 16 | 18-8 SS | IP68 |
| 10446A1/M8/X.W | M8 | 0.5–2.5 | 14 | 25 | 17.5 | 18-8 SS | IP68 |
| 10446B1/M5/X.W | M5 | 2.0–3.0 | 10 | 20 | 12.5 | 18-8 SS | IP68 |
| 10446B1/M6/X.W | M6 | 2.5–4.0 | 12 | 25 | 16 | 18-8 SS | IP68 |
| 10446B1/M8/X.W | M8 | 3.0–5.0 | 14 | 27.5 | 17.5 | 18-8 SS | IP68 |
Lengths measured from under the flange. Installed length is the maximum barrel length after deformation.
Compliance & Certifications
-
Ingress Protection: IP68 (tested to CEI EN 60529:1997 + amendments)
-
Certification Body: TÜV Italia (TÜV SÜD Group), Test Report No. 1926795
-
Material Standard: Stainless Steel AISI 303 / 1.4305
-
RoHS & REACH compliant
Compatible Substrates
-
Sheet metal (steel, stainless, aluminum)
-
Composite panels
-
Electrical/mechanical housings
-
Thin-wall materials unsuitable for tapping
Packaging & Ordering
-
Bulk order and project pricing available on request
-
Specify part number, thread size, and grip range when ordering
For watertight fastening solutions, trust Chemical Concepts as your IP68 insert specialist. Contact our team for application support, testing guidance, and volume pricing.
