Cox JetFlow 3 Sachet 310 mL Pneumatic Spray Dispenser

Description

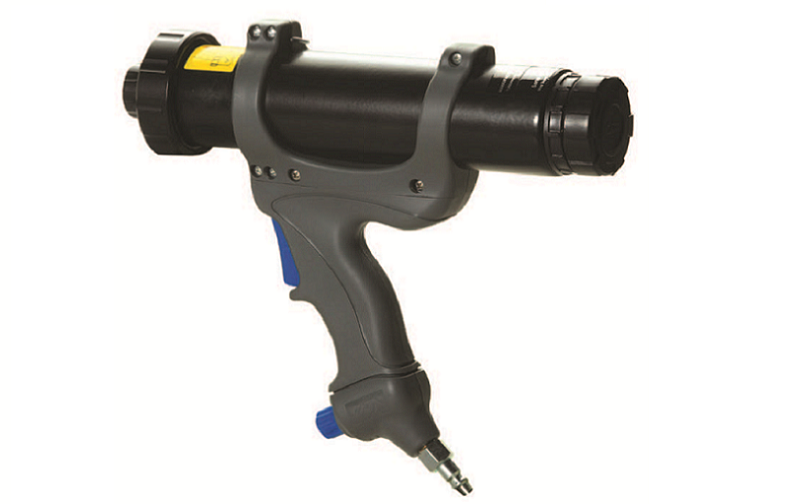

JetFlow 3 dispenser is a Cox pneumatic tool for applying low and medium viscosity sealants or adhesives from 310 mL sachets. It supports bead and spray work from the same tool platform, giving production crews controlled material flow for sealing, bonding, and coating tasks.

JetFlow 3 dispenser Benefits

• Bead and spray capability lets one pneumatic tool cover joint filling, surface coating, and broad sealant application.
• Dual flow controls help operators adjust incoming air and spray pattern for the material and part shape.
• Floating plunger action with a secure cord supports clean use with soft sausage packs.
• 6.8 bar (100 psi) pneumatic pressure rating gives shops a familiar air setup for dispenser benches and mobile carts.
• Glass filled nylon handle and aluminum barrel keep the tool practical for repeated shop handling.

This 310 mL sachet version fits the Cox DP1C 310-SA-145-911 configuration, old number 63007-300S, with manufacturer ID 159354. Use it when a cartridge-only gun does not match the package format or when the job calls for spray pattern control.

Where JetFlow 3 dispenser Fits

• Marine sealant application on deck, hatch, panel, and interior joints.
• Transportation and specialty vehicle work that alternates between beads and sprayed material.
• General manufacturing stations using 310 mL sausage packs.
• Construction sealing where controlled pneumatic output is preferred over manual gunning.
• Shop repair work using low or medium viscosity adhesives and sealants.

Surface Preparation And Setup

Confirm that the material is packed in a compatible 310 mL sachet before loading the barrel. Cut the sausage end cleanly, seat the plunger squarely, and start with lower air pressure until the bead or spray pattern is stable.

Keep the air line clean and dry, and check the nozzle before each run. For spray work, test the pattern on scrap material first so the fan width and flow match the surface before moving to finished parts.

Technical Details And Documentation

Cox lists the JetFlow 3 Sachet family as a one-component pneumatic bead and spray dispenser for 310, 400, and 600 mL sachets. Published specifications include 1.24 to 1.47 kg weight, 347 to 445 mm barrel length, 1.45 kN maximum thrust, 6.8 bar maximum pneumatic pressure, glass filled nylon handle, aluminum barrel, CE and REACH component approvals, and low to medium viscosity use. Review current product information from Cox dispensers before approving a production setup.

Dispensing And Ordering Help

For related sausage guns, nozzles, mixers, and cartridge tools, browse Chemical Concepts dispensers, mixers, and nozzles. For help matching this tool to a sachet package, sealant viscosity, or air setup, call (800) 220-1966 or email [email protected].
