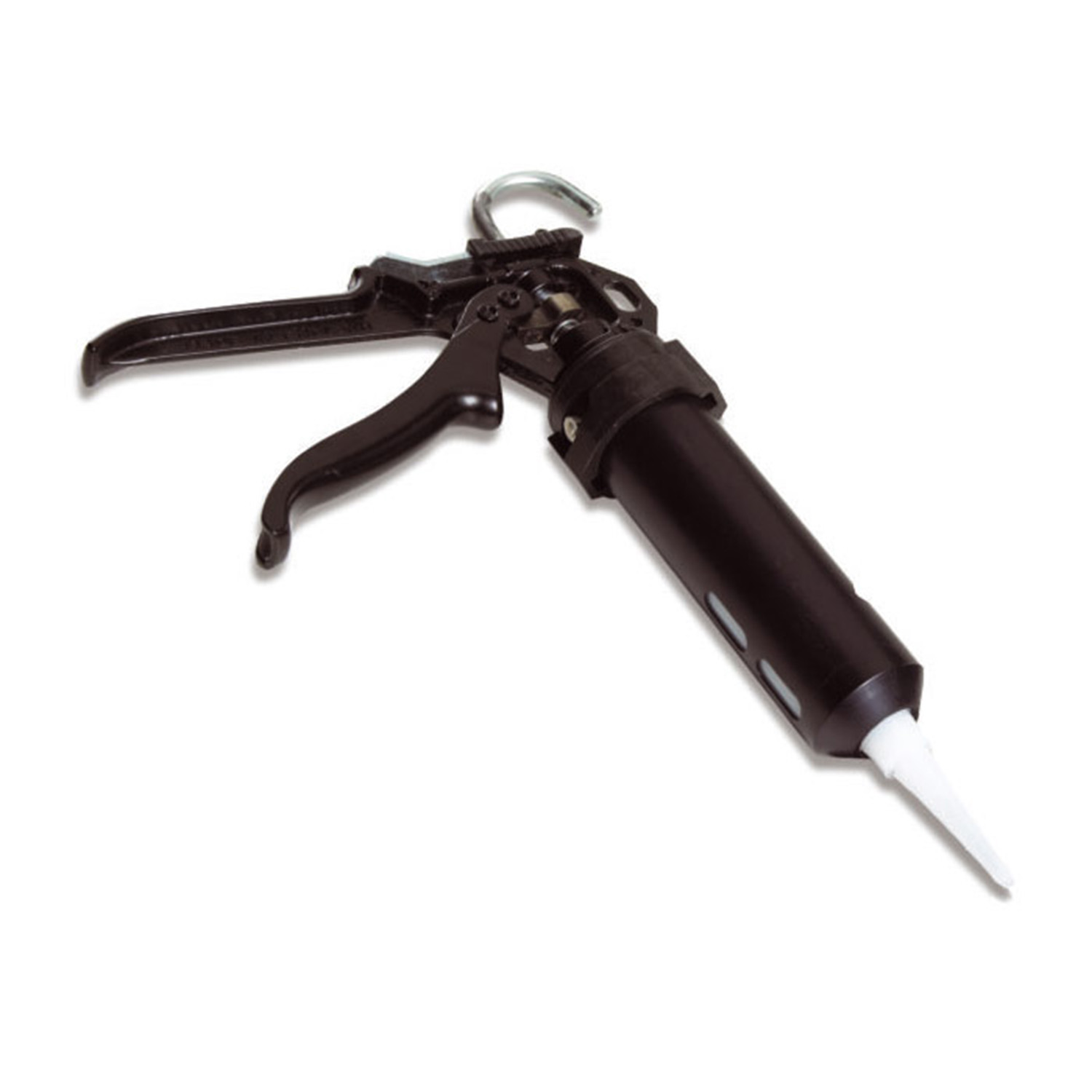

Techcon TS16-2 Manual Dispenser Gun Handle, 8 and 12 oz

Description

The Techcon TS16-2 handle is a manual dispenser gun component for 8 oz and 12 oz cartridge assemblies that need controlled adhesive or sealant dispensing without an air-powered station. It gives installers and technicians a larger hand-operated option in the TS16 series, sized for jobs where a small 2.5 oz or 6 oz cartridge runs out too quickly but a pneumatic gun would add setup time.

manual dispenser gun fit and cartridge size

This handle supports TS16 series manual gun assemblies for 8 oz and 12 oz cartridges. Those capacities make sense for longer repair beads, field bonding, gasket work, potting touch-ups, and maintenance jobs that need more material than a compact cartridge can carry. The handle works with the matching Techcon retainer, cap, cartridge, plunger, and nozzle, so each loaded package stays aligned while trigger force advances the material.

A hand-powered setup is useful when the work moves between benches, vehicles, customer sites, or areas where compressed air is not available. The operator can control bead start and stop directly from the trigger, then cap the cartridge or change the nozzle when the job pauses. That makes the TS16-2 handle practical for slower, careful placement rather than continuous production metering.

manual dispenser gun setup checks

Confirm the retainer before loading a cartridge. Techcon TS Series documentation pairs TS16-2 with 8 oz and 12 oz retainer assemblies, and the handle alone does not determine the full cartridge fit. Check cartridge diameter, retainer size, plunger style, outlet cap, and nozzle connection together. For thick materials, use a nozzle opening large enough to avoid excess trigger force. For lower-viscosity fluids, keep the tip capped until the bead is ready so material does not creep at the outlet.

The larger cartridge sizes help when a crew needs fewer reloads across a longer joint or a multi-part repair. Keep the loaded cartridge straight in the retainer, and purge enough material to confirm clean flow before placing the final bead. If a partially used cartridge is stored for later work, cap the outlet and label the material so the next operator can confirm shelf condition, nozzle size, and cure schedule before use. Replace worn retainers or damaged caps before they start marking cartridges or shifting under trigger load.

Specifications

Build the complete setup with compatible retainers, caps, plungers, cartridges, and nozzles from the dispensers, mixers, and nozzles category. For broader TS Series product context, visit Techcon.
