Description

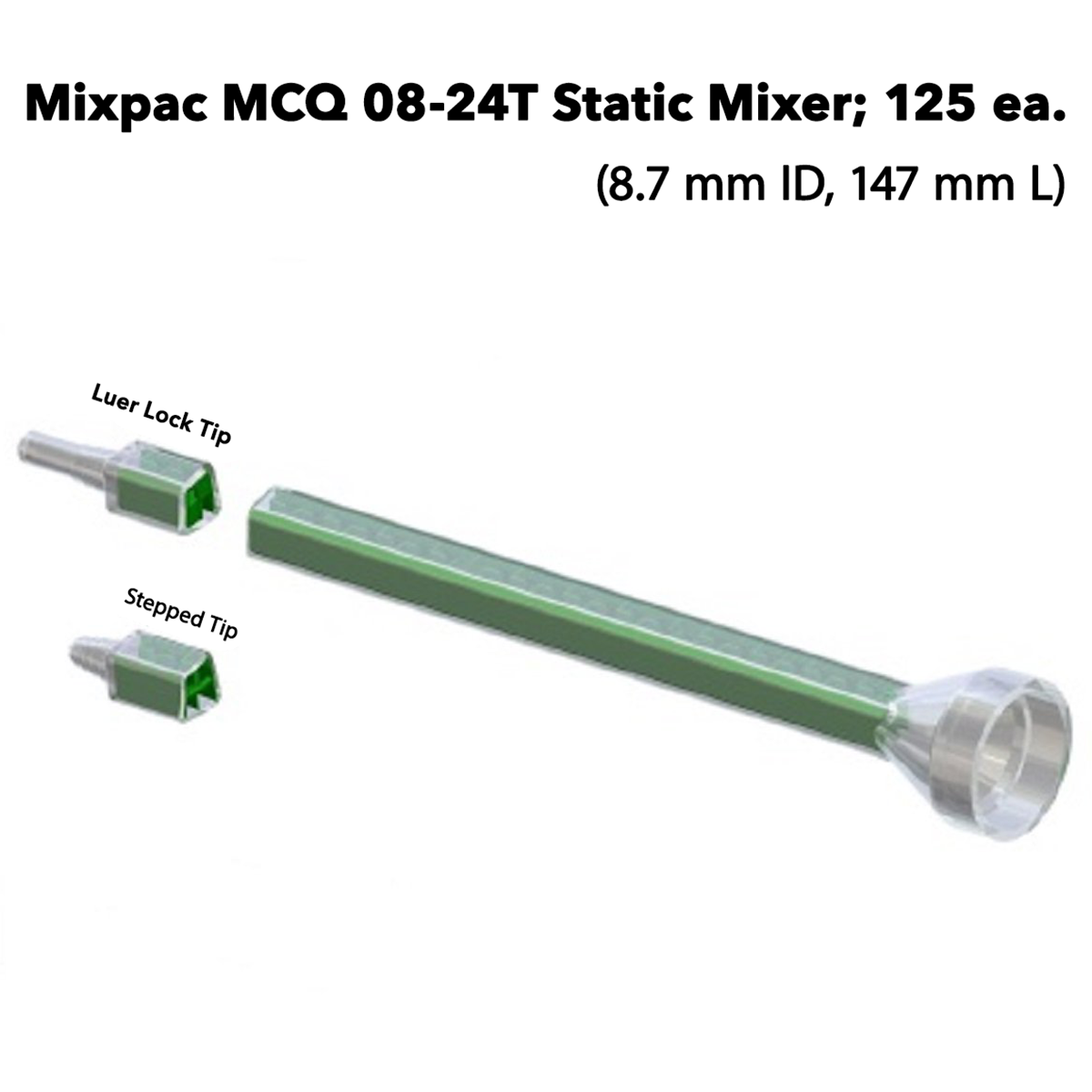

MCQ 08-24T mixer is a 24-element square static mixer for two-component adhesives dispensed from AC series cartridges in 1:1 and 2:1 ratios. It is a dependable choice when you need long, thorough mixing for epoxies, acrylics, urethanes, silicones, and methacrylates used in assembly, repair, and production dispensing.
Key Features and Benefits
- 24-element square design helps develop a complete mix path for higher confidence at the bead.
- 8.7 mm inner diameter supports steady material flow on medium to high volume cartridge work.
- 147 mm length gives more residence time for chemistries that benefit from deeper mixing before dispense.
- Integral retaining nut connection keeps setup simple on compatible two-part cartridges.
- Works with 200 mL, 400 mL, 600 mL, and 1500 mL AC series cartridges, which makes it flexible across plant setups.
- Disposable construction helps prevent cleanup delays and cross-contamination between materials.
Common Applications for MCQ 08-24T mixer
- Dispensing structural epoxy in electronics and industrial assembly
- Applying polyurethane and silicone materials in construction and repair
- Metering acrylic and methacrylate adhesives in transportation and composite work
- Concrete repair and field service jobs that use cartridge-applied two-part materials
- General production lines where cartridge changeover speed matters
Compatible Cartridges and Chemistries
- 200 mL AC series cartridges
- 400 mL AC series cartridges
- 600 mL AC series cartridges
- 1500 mL AC series cartridges
- Epoxy, polyurethane, silicone, acrylic, and methacrylate systems
MCQ 08-24T mixer Technical Specifications
| Property | Value |
|---|---|
| Manufacturer SKU | 300455 |
| Mixer type | Quadro square static mixer |
| Mix ratio support | 1:1 and 2:1 |
| Number of elements | 24 |
| Inner diameter | 8.7 mm / 0.343 in |
| Length | 147 mm / 5.79 in |
| Tip style | Stepped tip |
| Connection | Retaining nut for AC cartridges |
| Material | PP housing and PP element |
| Typical cartridge sizes | 200 mL, 400 mL, 600 mL, and 1500 mL |
Packaging and Ordering
Use this mixer when you need a longer square-element nozzle for fuller blending on two-part cartridge systems. For related options, see the Chemical Concepts static mixer replacement guide. For dimensional data and matching cartridge families, review medmix MIXPAC catalog information such as the MIXPAC systems catalog.
Need Help?
Call (800) 220-1966 or email [email protected] if you want help choosing between MCQ, MGQ, or MFQ styles for your cartridge size and adhesive viscosity.
