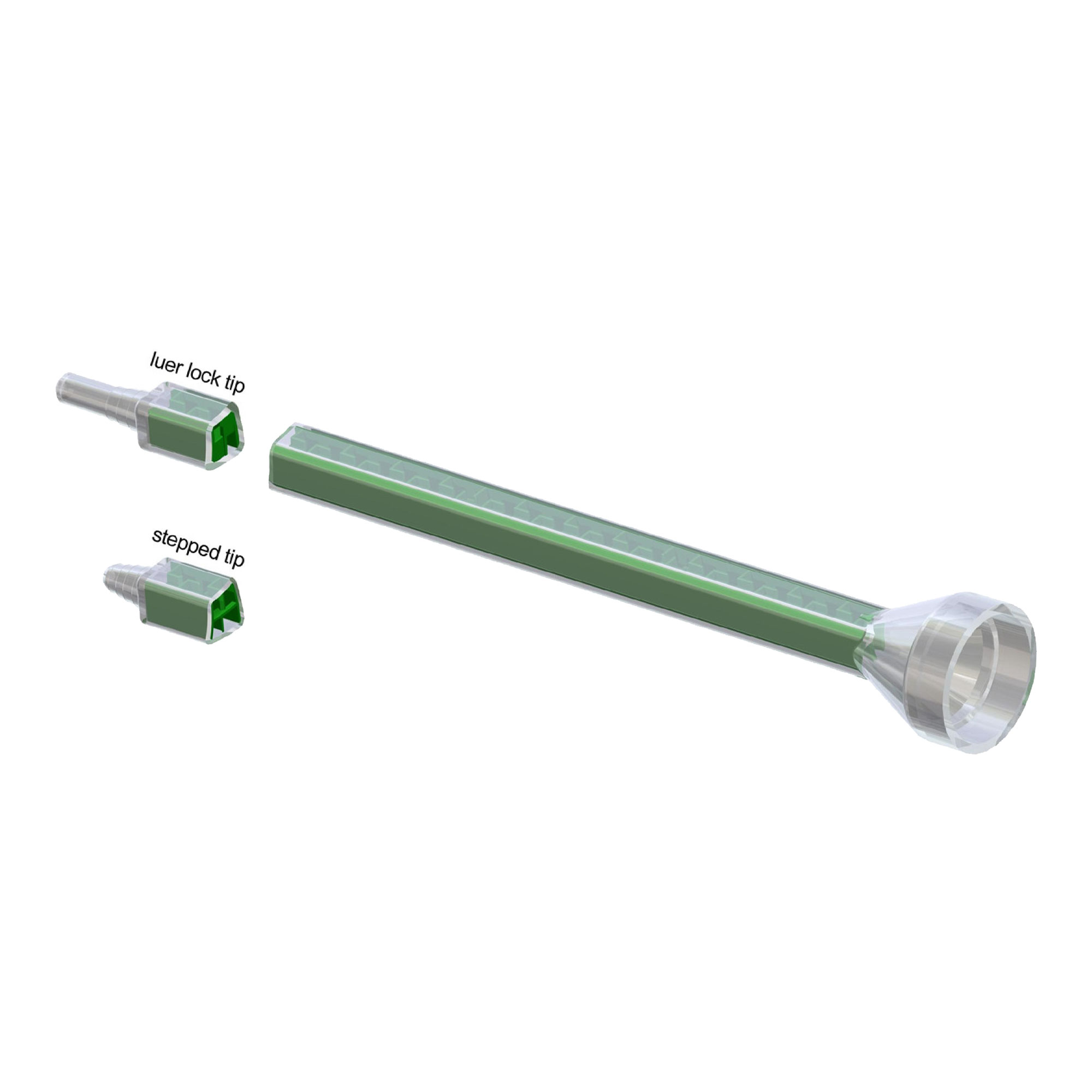

Medmix Sulzer Mixpac MCQ 07-24T Static Mixer Nozzle (24 Element, 7 mm)

Description

The MCQ 07-24T static mixer nozzle is the disposable mixing tip Medmix Sulzer Mixpac specifies for AC series two-part cartridges. It mounts on 200 ml, 400 ml, 600 ml, and 1500 ml AC cartridges at both 1:1 and 2:1 ratios using an integral nut, which lets operators swap tips between dispenses without tools. Industrial buyers keep boxes on the shelf because changeover is faster than cleaning a reusable mixer.

How the MCQ 07-24T Static Mixer Mixes

The MCQ 07-24T static mixer runs material through 24 helical elements at a 7 mm bore. As the two components push through, each element flips, splits, and recombines the stream, so by the time the bead exits the nozzle the parts are fully blended within the design ratio. Disposable tips remove the risk of dosing error from a partially clogged or solvent-soaked reusable mixer.

Materials and Applications for the MCQ 07-24T Static Mixer

The tip handles epoxy, polyurethane, silicone, acrylic, methacrylate, and other two-part adhesives and sealants. Field crews use it on aerospace bonding, wind turbine repair, electronics potting, concrete anchoring, and general construction assembly. It also fits cabinet and woodworking shops, countertop fabrication, marine, and metal fabrication. Pair the tip with the matching AC cartridge dispenser to keep ratio and bead pressure consistent.

Handling Notes

Replace the mixer between dispenses on materials with short open time so cured plug does not block the next bead. On longer open-time adhesives, you can sometimes get away with reusing across a single shift, but most production shops still treat the tip as one-shot to keep ratio quality predictable. Store unused tips in a clean, dry bin away from solvents.

Specifications

Browse matching AC dispensers and full nozzle ranges in the dispensers, mixers, and nozzles catalog. Manufacturer technical references are published on the Medmix global site.
