Medmix Piston Insertion Tool for 600ml 1:1 Ratio 2-Part Cartridges (J-System) – PIDQ 0600-01-01

Description

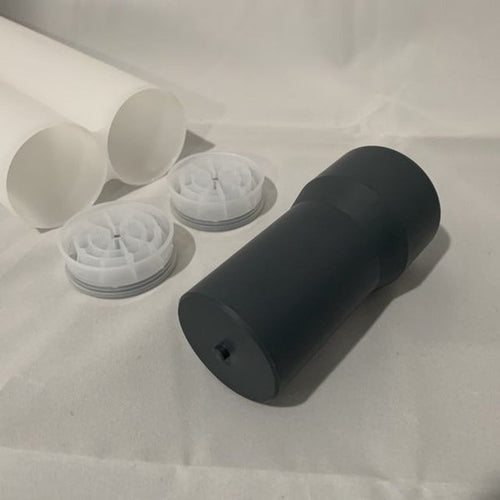

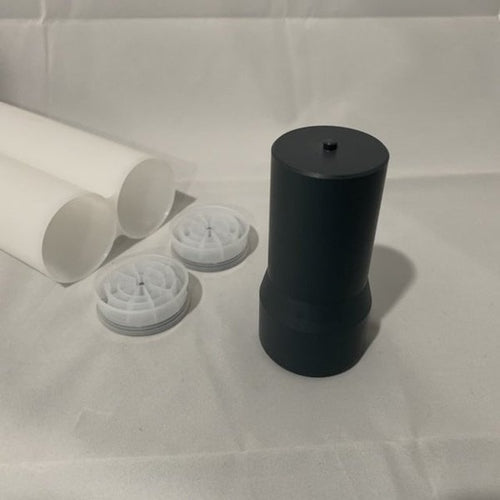

The Medmix Piston Insertion Tool is a hand tool that installs and seals air-free pistons inside 600ml 1:1 ratio two-part cartridges. The tool’s center bump opens the piston’s air-release diaphragm during insertion so trapped air evacuates as the piston seats against the adhesive, then the diaphragm closes and the cartridge seals when the tool is withdrawn.

Tool Benefits

• Standardizes piston installation across the 600ml 1:1 ratio J-System cartridge line
• Holds the piston’s air-release diaphragm open during insertion so trapped air escapes through the back of the cartridge

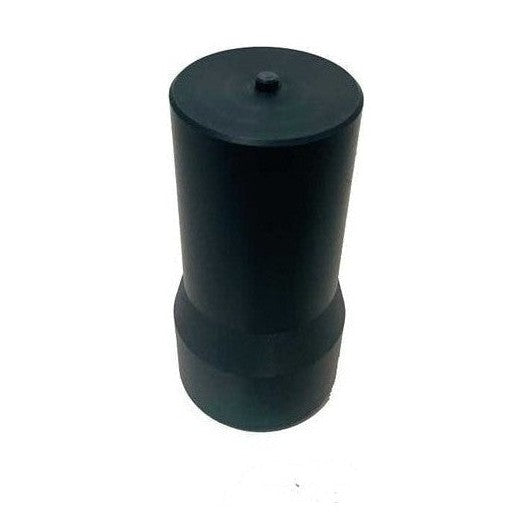

• Center bump locates and retains the piston so it doesn’t shift off-axis as it’s pressed in
• Eliminates the cocked or partially seated pistons that cause uneven dispensing on the front end
• Built for repeated use in cartridge-filling production lines and small-batch fill operations
• Single tool covers both Medmix and compatible 600ml 1:1 ratio J-System cartridge formats

Cartridge Compatibility

• Medmix (formerly Sulzer Mixpac) 600ml 1:1 ratio J-System two-part cartridges
• Atlas Professional 600ml 1:1 ratio J-System two-part cartridges
• For use with the next-generation air-free piston design (diaphragm-style, not push-pin)
• Not for use with 1:2, 2:1, 4:1, or 10:1 ratio cartridges or smaller 50ml / 200ml / 400ml formats

How to Use

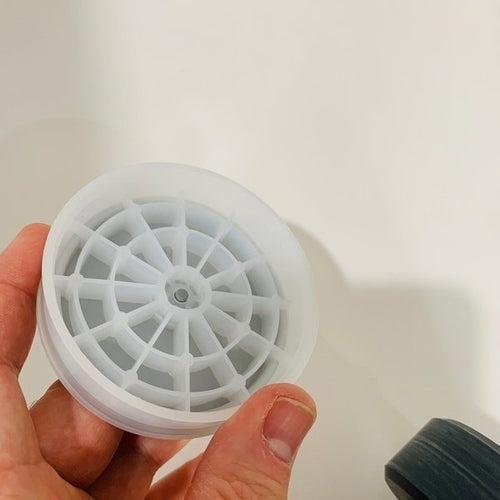

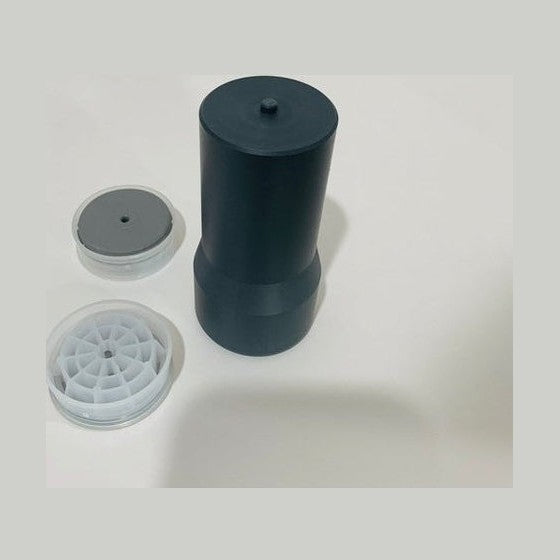

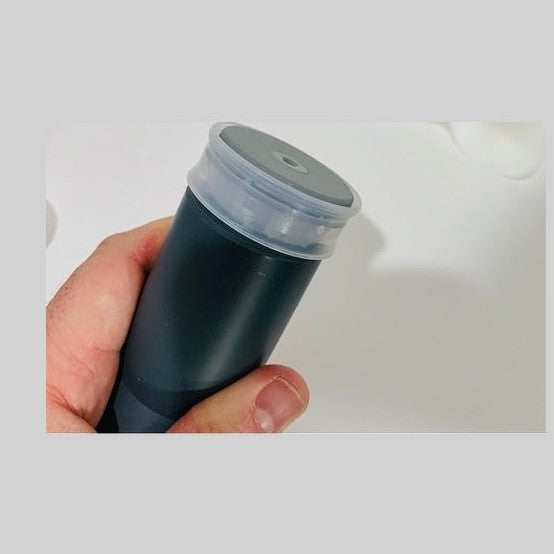

Place the piston on top of the insertion tool with the gray diaphragm side facing up and the hard plastic spoke side facing down onto the tool. Confirm the tool’s center bump fits into the piston’s center cavity so the piston stays seated on the tool. Press the piston into the back end of the cartridge using the tool. As the piston travels down, the bump holds the diaphragm open and trapped air vents back out. When the piston meets the resin or adhesive inside the cartridge you’ll feel a gentle resistance — stop there. Pull the tool away and the diaphragm closes automatically, sealing the cartridge with air evacuated.

Ordering and Product Support

This tool pairs with the full dispensers, mixers, and nozzles lineup including empty 600ml cartridges, static mixers, and dispenser guns. Medmix product literature is on Medmix.

If you need help matching the right cartridge, piston, or dispensing system to your filling operation, call (800) 220-1966 or email [email protected].
