Description

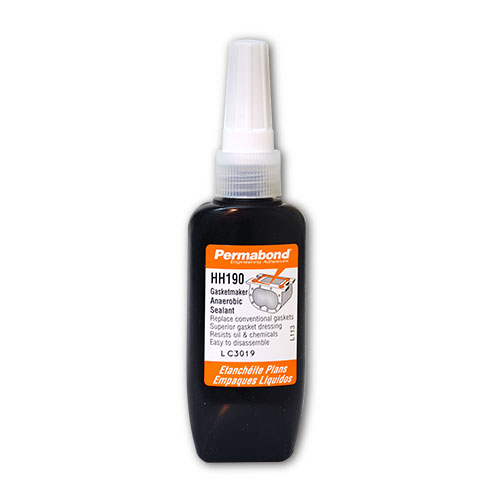

Permabond® HH190 50 mL Bottle is an anaerobic flange sealant designed to replace conventional pre-cut gaskets in metal assemblies. It cures in the absence of air between close-fitting metal surfaces.
The 50 mL bottle format is suited for maintenance, repair, and smaller production runs where controlled bead application is required. HH190 provides an instant pressure seal and ultimately seals up to 5000 psi.
Key Product Details
| Property | Value |
|---|---|
| Chemistry | Acrylic |
| Color | Purple |
| Viscosity @ 25°C | 300,000 mPa·s (cP) |
| Specific Gravity | 1.1 |
| Maximum Gap Fill | 0.3 mm (0.012 in) |
| Handling Strength (M10 Steel @ 23°C) | 15 minutes |
| Full Cure (M10 Steel @ 23°C) | 24 hours |
| Instant Seal (5 mil gap) | >75 psi |
| Full Seal (10 mil gap) | >5000 psi |
| Shear Strength (ISO10123) | 6 MPa (900 psi) |
| Storage Temperature | 5 to 25°C (41 to 77°F) |
Performance and Use
-
Eliminates pre-cut gaskets in rigid metal flange assemblies
-
Conforms to flange surface irregularities
-
Allows metal-to-metal contact while sealing leak paths
-
No re-tightening required after cure
-
Excellent resistance to shock and vibration
-
Non-flammable
Not recommended for oxygen-rich systems or strong oxidizers.
Application and Handling Notes
-
Apply as a continuous bead encircling bolt holes
-
Best results on clean, dry, grease-free surfaces
-
Roughened surfaces (~25 µm) improve bond strength
-
Cure speed may be reduced on zinc, aluminum, or stainless steel
-
Activators A905 or ASC10 may be used to accelerate cure
-
Store at 5 to 25°C.
Common Applications
-
Pump and gearbox flanges
-
Engine housings
-
Industrial equipment sealing
-
Maintenance gasket replacement
