Techcon Cartridge Bracket for Production Master Stand

Description

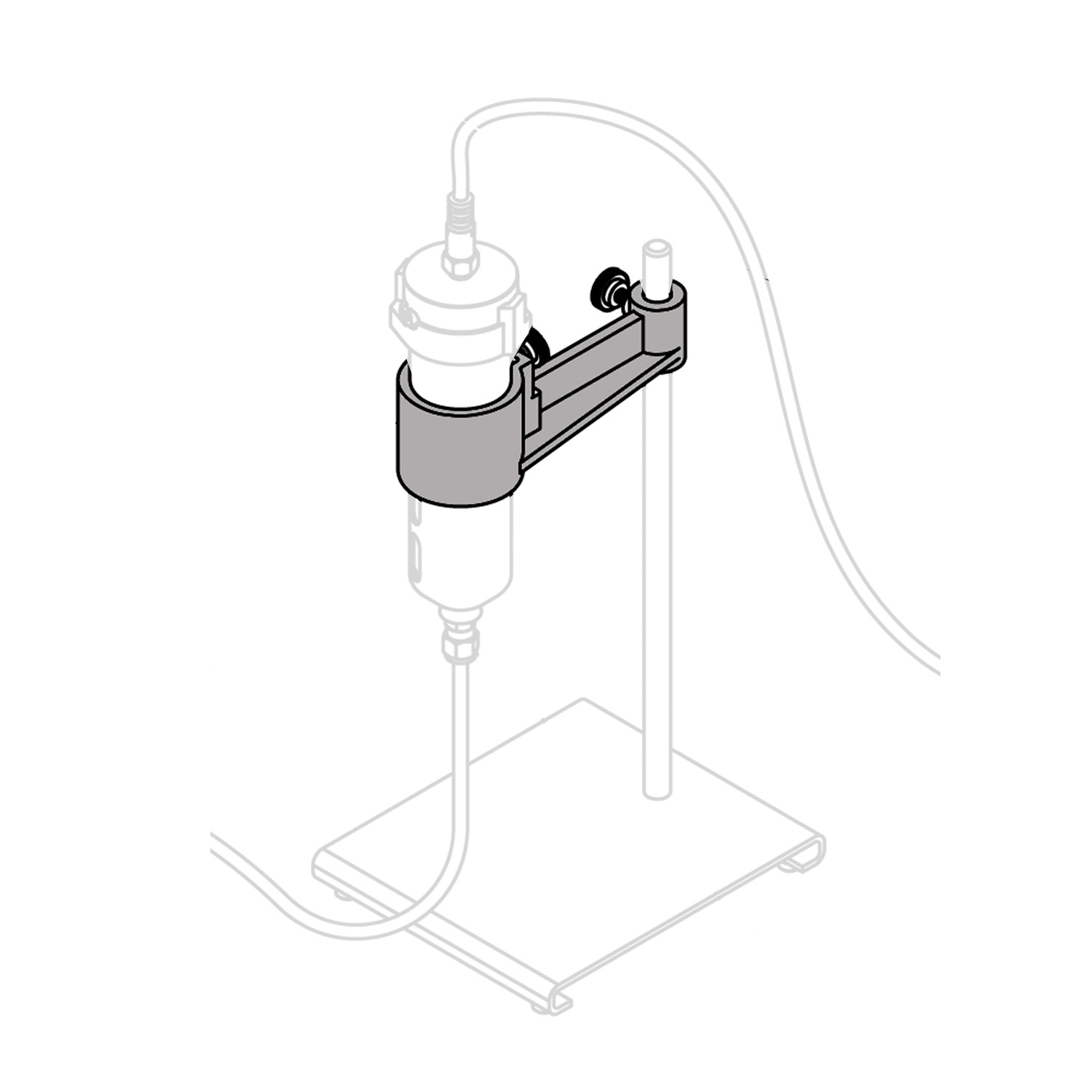

A bench dispensing stand needs a way to hold the cartridge steady while the operator works, and this bracket is one of the dispensing valve parts built to mount directly to a Techcon Production Master Stand. It clamps the cartridge body in place so the operator can focus on nozzle placement and dispense rate instead of holding the cartridge by hand.

Where This Dispensing Valve Parts Bracket Gets Used

The bracket fits Techcon’s Production Master Stand, a fixture used on assembly lines and bench stations where operators run repeated dispensing cycles from cartridges rather than bulk syringe barrels. Mounting the cartridge in a fixed bracket frees both of the operator’s hands for the applicator and keeps the dispense angle consistent from one cycle to the next.

How This Dispensing Valve Parts Bracket Holds Up

The bracket is built to retain standard cartridge diameters under the vibration and repeated loading of a production dispensing cell. Because it is a mechanical retainer rather than a wear part in the fluid path, it holds up over the working life of the stand itself, with the cartridge sliding in and out for each replacement. Because the bracket is a passive retainer rather than a moving part, most stands run for years on the original bracket, with replacement typically driven by physical damage rather than wear.

Order this bracket when adding a second cartridge station to a Production Master Stand or replacing a bent or cracked retainer. See related fixtures and hardware in our dispensing, mixing, and nozzle accessories category. Techcon’s full stand and fixture lineup is on its manufacturer site. Confirm the cartridge diameter on your current stand before ordering, since bracket sizing is matched to cartridge body, not to the dispensing gun mounted on the stand.
